RMSTATOR  |  SKU: RMS900105941

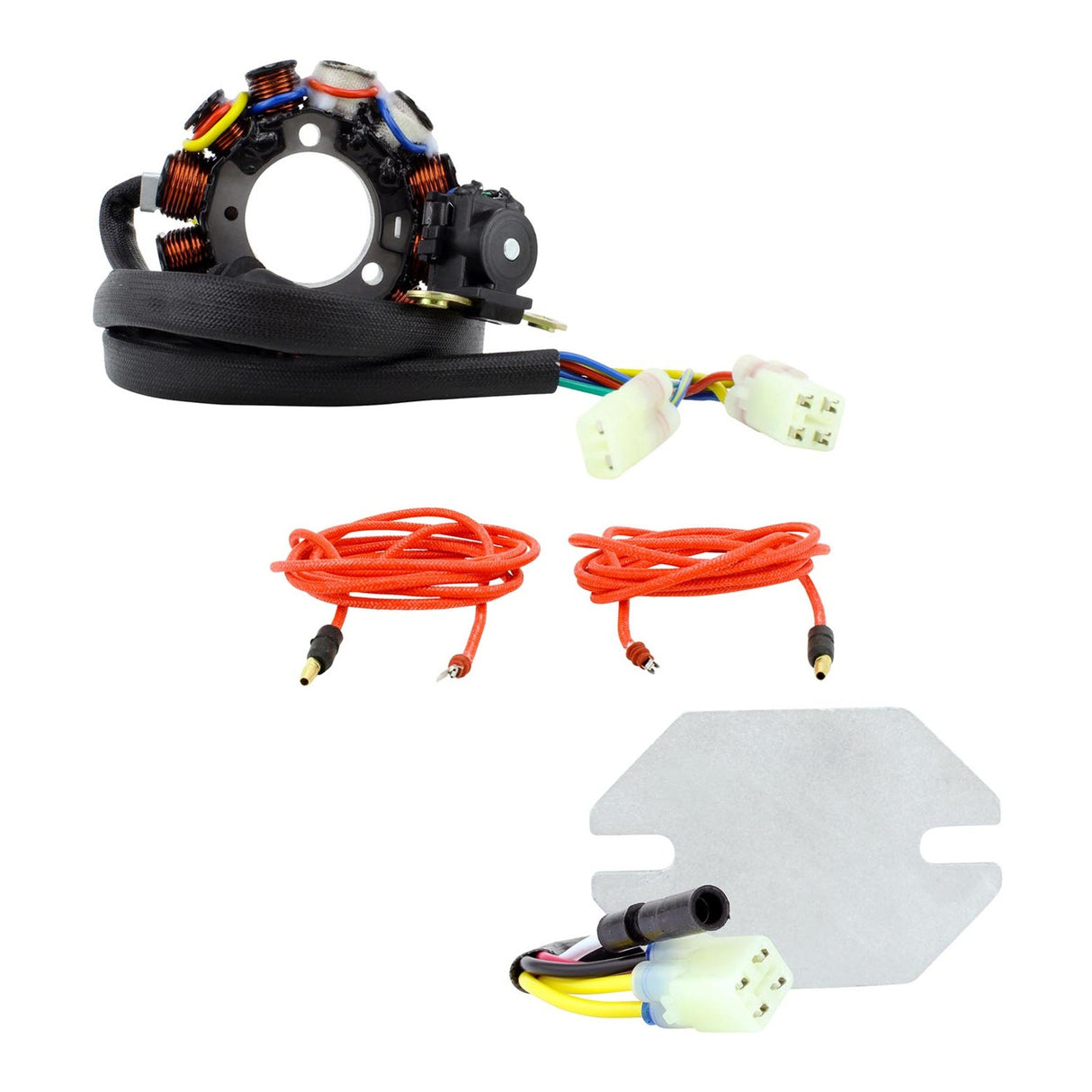

90W CONV KIT AC TO DC HON CRF450X 2005-2018 (RMS900-105941)

$489.99
Tax included Shipping calculated at checkout.

Delivery and Shipping

Products marked as "In Stock" are stored in our different distribution centers. These products will ship within 2-5 business days. Orders are not shipped or delivered on weekends or holidays.

Items are then sent by courier, we use Courierpost & Posthaste which will take 1-3 days to arrive depending on your location and the size of the parcel.

While we will do our best to ship from the distribution center closest to you, not all items will always be in stock in every location at all times.  In some cases we will split the order and ship each package out to you individually and in other cases we may need to consolidate the items in one location to ship out as one package.  We utilize our best judgment in an attempt to get the products to you as quickly as possible.

You will receive a Shipment Confirmation email once your order has shipped containing your tracking number(s). The tracking number will be active within 48hours.

Returns

Our returns policy lasts 21 days. If 21 days have gone by since your purchase, unfortunately we can’t offer you a refund or exchange.

To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging.

Additional non-returnable items:

  • Gift cards
  •  Downloadable software products
  •  Any Electrical products
  •  Some health and personal care items
  •  Any product from the "Second Life" category or any product in the category "Used" by NZBike Tour and Rental , NZBike  Accessories or NZBike Workshop

To complete your return, we require a receipt or proof of purchase.
Please do not send your purchase back to the manufacturer.

There are certain situations where only partial refunds are granted (if applicable)
- Any item not in its original condition, is damaged or missing parts for reasons not due to our error

Description

Because of lightweight LED lights, nighttime illumination has become much easier. However, most motorcycle electrical systems need more power to make them work. This RMSTATOR kit provides the stator with the higher power needed to make starting easier and turn on auxiliary lights and other accessories.

Designed to work with the DC system, this set of parts are built-in relays that activate the switched 12V DC output line only when the motor is running. Do you often forget to turn off your lights? No more worries! This kit will be perfect for you because the adjustable shut-off delay will turn them off automatically!

Stator:

  • DC stators compatible with lighting systems of equal or less power
  • Replace the OEM and increases power output significantly.
  • Pick up pulsar coil included
  • Connector included
  • Rubber grommet included

Voltage Regulator Rectifier:

  • No assembly required
  • Higher grade of electric components.
  • The quality exceeds the OEM equipment

Specifications:

< strong>Stator:

  • Interior diameter: 34mm
  • Exterior diameter: 72mm
  • Thickness: 15mm
  • Length of wires stator to grommet: 80mm
  • Length of wires grommet to plug: 660mm
  • Length of pickup coil's wire to grommet: 60mm
  • Number of wires: 6
  • Number of plugs: 2
  • Number of pins: 6
  • Alternator : Between each Yellow = 0.4 ohms +-20%
  • Pickup : Green/White to Blue/White = 260 ohms +-20%
  • Source: Blue to Red = 20 ohms +-20%

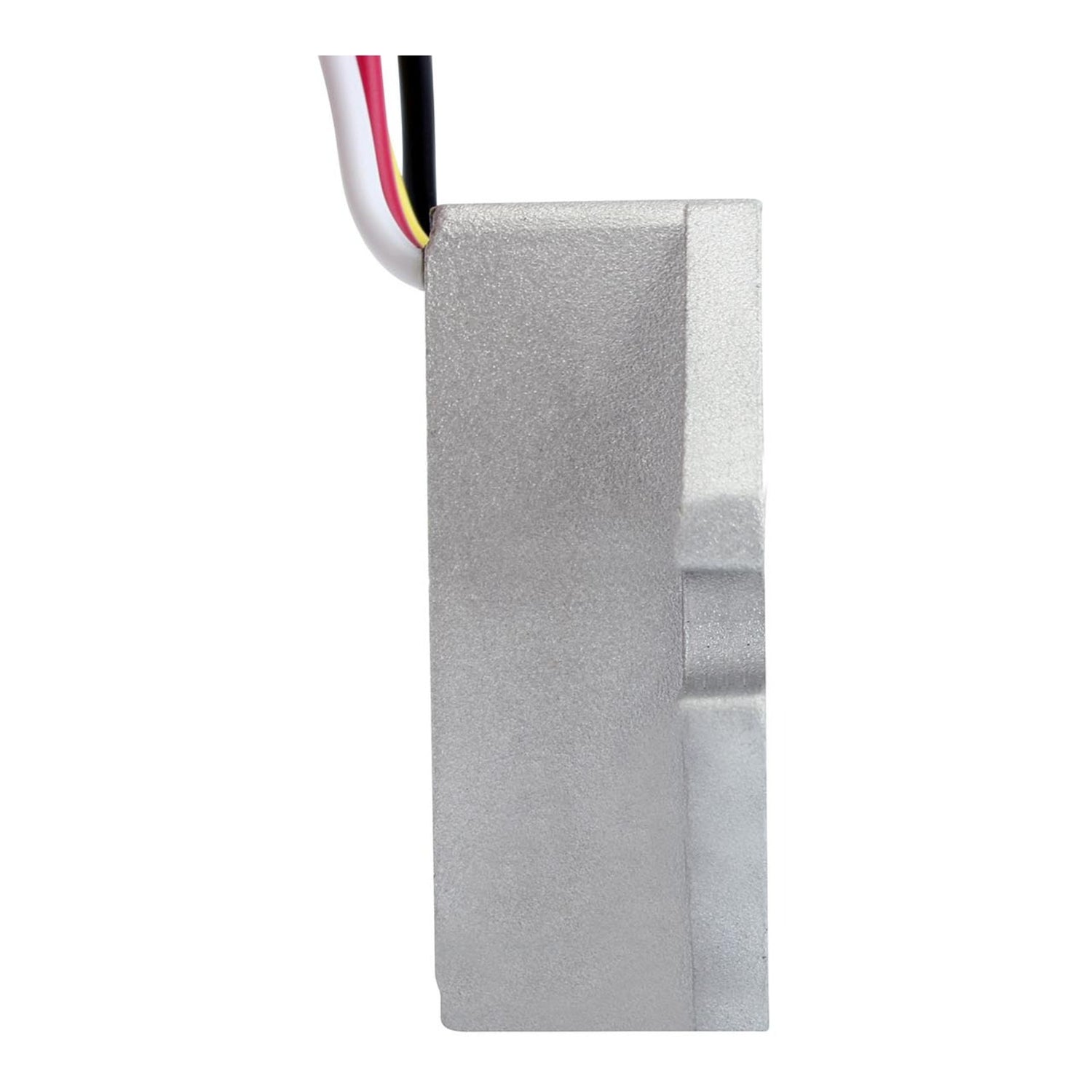

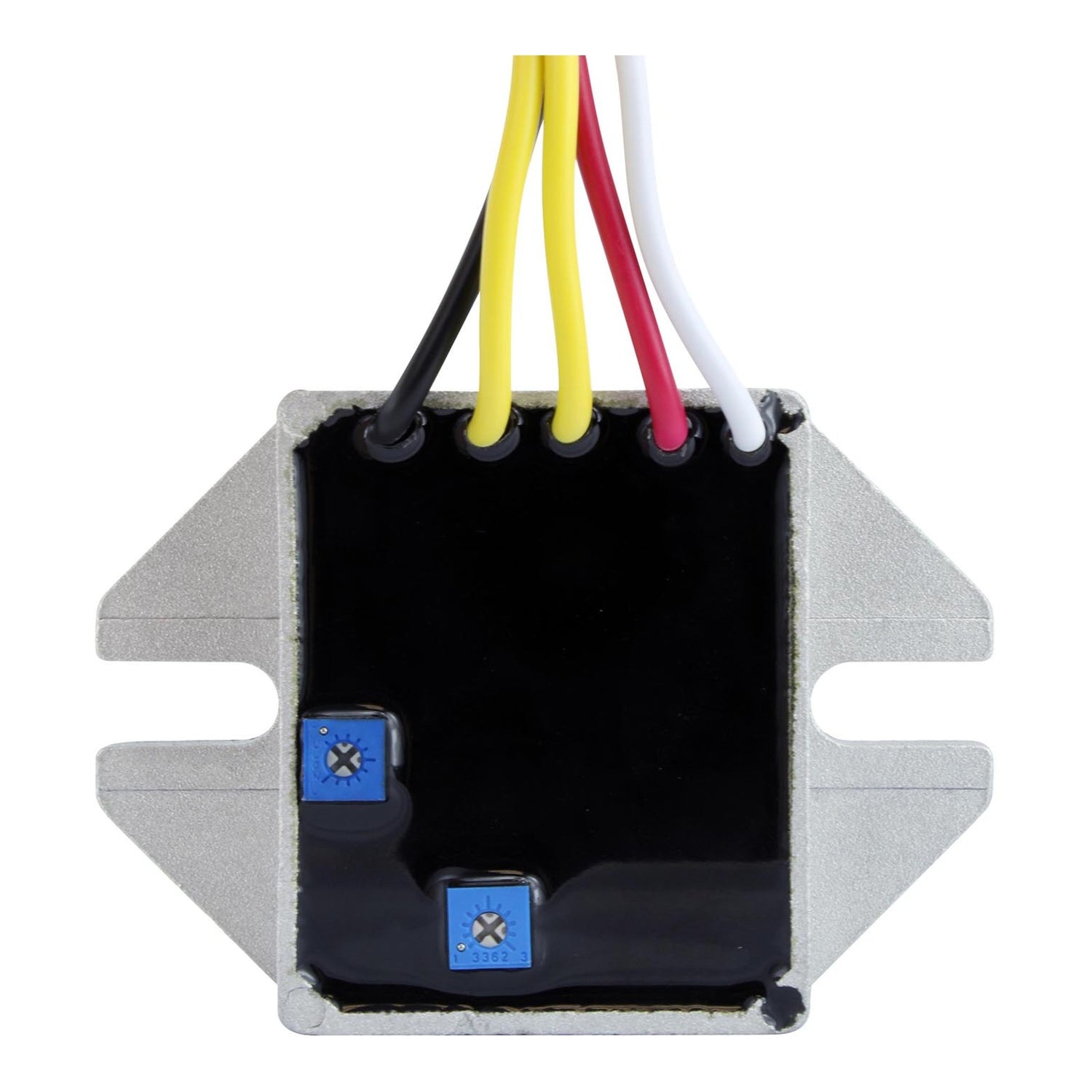

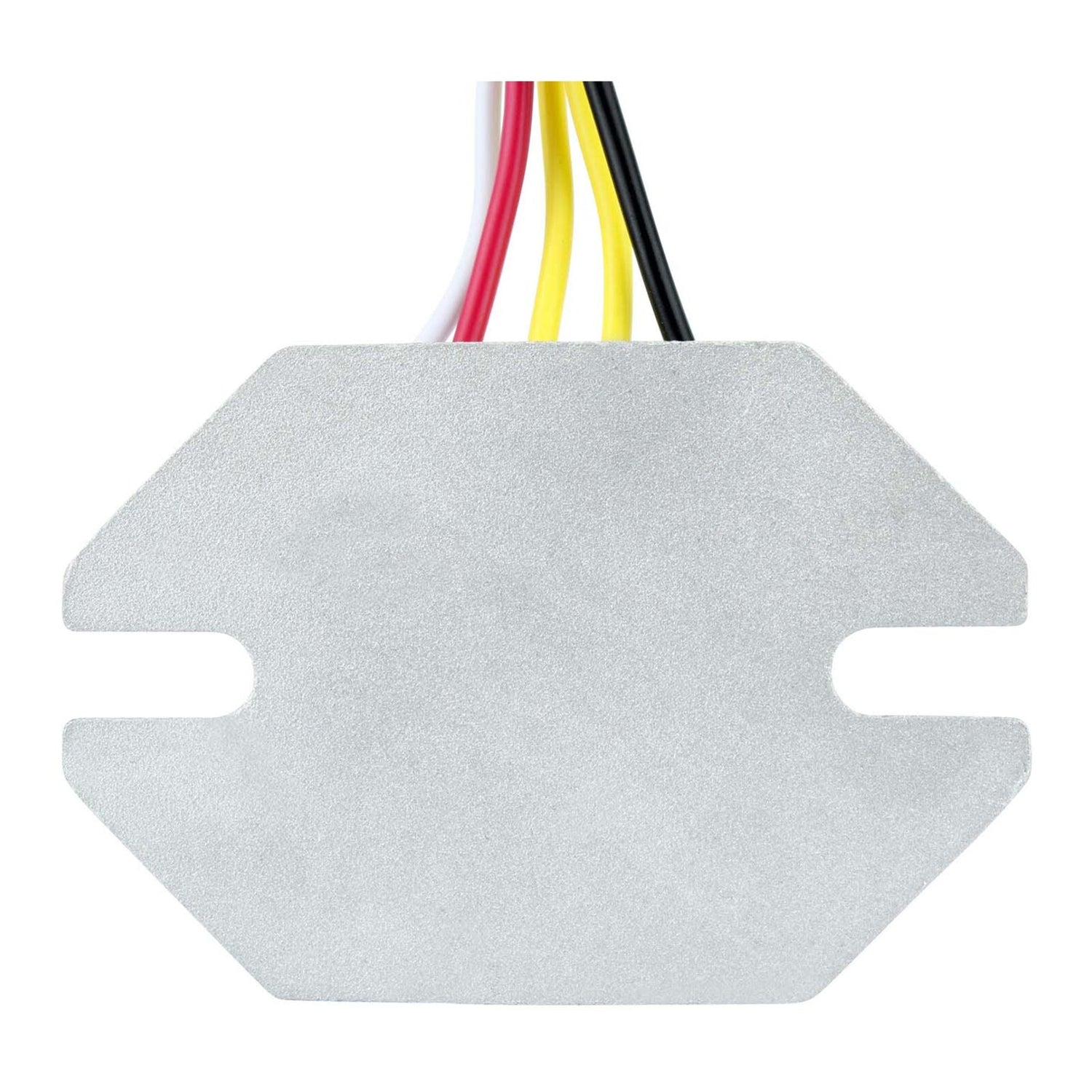

Voltage Regulator Rectifier

  • Width: 53.6mm
  • Length: 79mm
  • Height: 22mm
  • Wires length: 250mm
  • Fixation holes centre to centre: 62mm
  • Number of wires: 5
  • Minimum Charging Voltage: 14.5V +- 0.5V
  • Maximum Charging Current: 50A / 500W
  • Open Circuit Voltage: 15V
  • Operation Temperature: -20° to 85°

Harnesses

  • Wires length: 145mm

Please Note:

  1. All electrical components must be fitted by a qualified technician.
  2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
  3. The absence of either of points 1 or 2 above, will void any warranty.
