RMSTATOR  |  SKU: RMS010107840

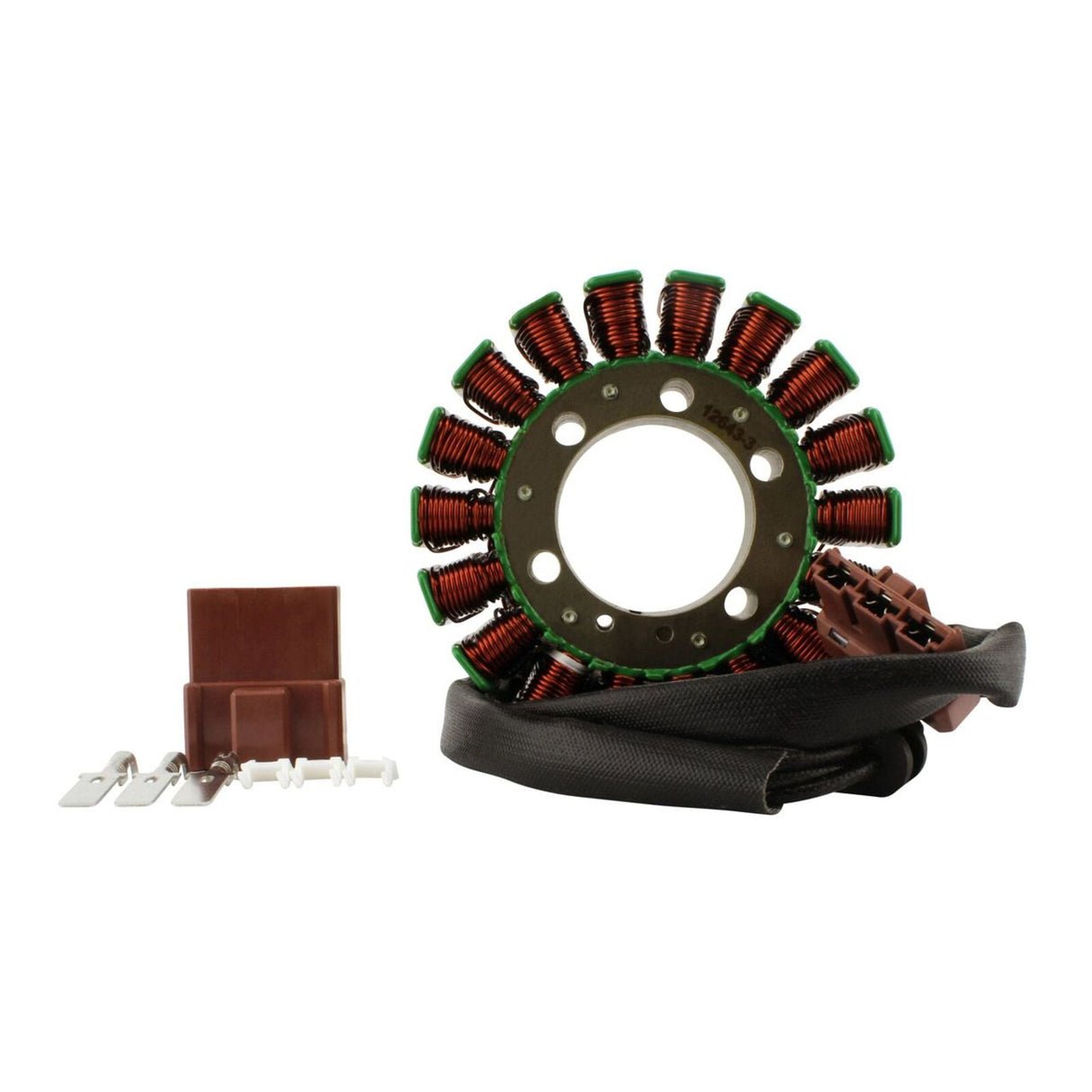

Stator Assorted KTM Models '13-'22 [Refer to Fitments] (RMS010-107840)

$369.99
Tax included Shipping calculated at checkout.


Delivery and Shipping

Products marked as "In Stock" are stored in our different distribution centers. These products will ship within 2-5 business days. Orders are not shipped or delivered on weekends or holidays.

Items are then sent by courier, we use Courierpost & Posthaste which will take 1-3 days to arrive depending on your location and the size of the parcel.

While we will do our best to ship from the distribution center closest to you, not all items will always be in stock in every location at all times.  In some cases we will split the order and ship each package out to you individually and in other cases we may need to consolidate the items in one location to ship out as one package.  We utilize our best judgment in an attempt to get the products to you as quickly as possible.

You will receive a Shipment Confirmation email once your order has shipped containing your tracking number(s). The tracking number will be active within 48hours.

Returns

Our returns policy lasts 21 days. If 21 days have gone by since your purchase, unfortunately we can’t offer you a refund or exchange.

To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging.

Additional non-returnable items:

  • Gift cards
  •  Downloadable software products
  •  Any Electrical products
  •  Some health and personal care items
  •  Any product from the "Second Life" category or any product in the category "Used" by NZBike Tour and Rental , NZBike  Accessories or NZBike Workshop

To complete your return, we require a receipt or proof of purchase.
Please do not send your purchase back to the manufacturer.

There are certain situations where only partial refunds are granted (if applicable)
- Any item not in its original condition, is damaged or missing parts for reasons not due to our error

Description

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

  • You must re-install your original connector and grommet (see picture).
  • Once your connector and grommet is re-installed, our part becomes a plug-and-play unit, direct fit, and very easy to install.
  • Higher grade of electric components.
  • Highest-grade copper windings, resistant to 200 degrees Celsius.
  • All products shipped are tested

Dimensions:

  • Interior diameter: 42 mm
  • Exterior diameter: 105 mm
  • Thickness: 17 mm
  • Length of wires stator to grommet: 85 mm
  • Length of wires grommet to plug: 575 mm

Other specifications:

  • Number of wires: 3
  • Number of plugs: 1
  • Number of pins: 3
  • Number of poles: 18
  • Wire to wire resistance:Alternator: Black to Black = 0.4 ohms +- 20%Alternator: Black to ground = O.L

Before installing your new stator

  • Check the AC output of the stator
  • Replace any burned or corroded connectors on stator and regulator rectifier
  • Check and repair any melted wiring
  • Use hi-temp dielectric grease on all connectors

Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010".
