RMSTATOR  |  SKU: RMS900107638

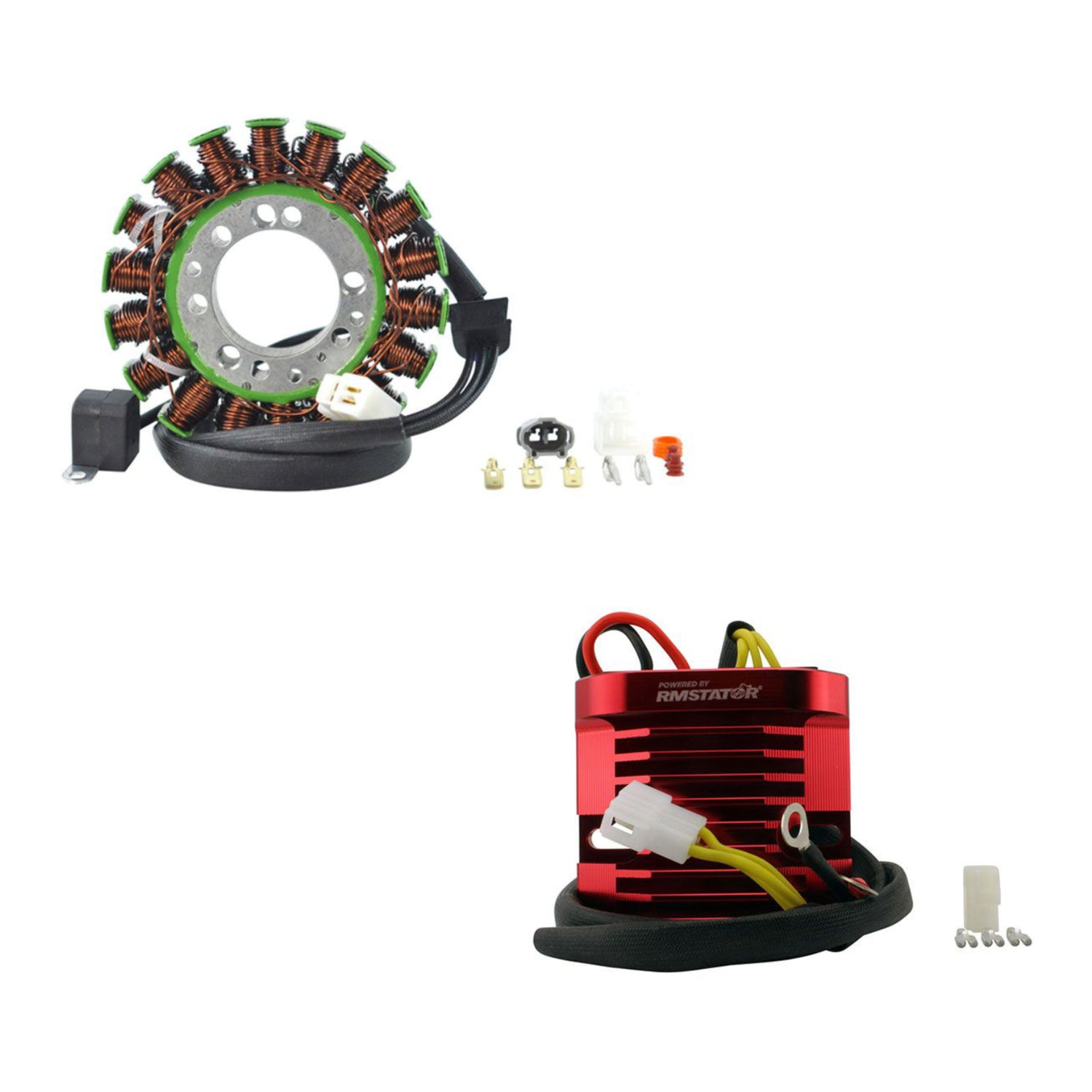

STATOR + CNC MOSFET KIT TRI STREET 675/R

$839.99
Tax included Shipping calculated at checkout.


Delivery and Shipping

Products marked as "In Stock" are stored in our different distribution centers. These products will ship within 2-5 business days. Orders are not shipped or delivered on weekends or holidays.

Items are then sent by courier, we use Courierpost & Posthaste which will take 1-3 days to arrive depending on your location and the size of the parcel.

While we will do our best to ship from the distribution center closest to you, not all items will always be in stock in every location at all times.  In some cases we will split the order and ship each package out to you individually and in other cases we may need to consolidate the items in one location to ship out as one package.  We utilize our best judgment in an attempt to get the products to you as quickly as possible.

You will receive a Shipment Confirmation email once your order has shipped containing your tracking number(s). The tracking number will be active within 48hours.

Returns

Our returns policy lasts 21 days. If 21 days have gone by since your purchase, unfortunately we can’t offer you a refund or exchange.

To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging.

Additional non-returnable items:

  • Gift cards
  •  Downloadable software products
  •  Any Electrical products
  •  Some health and personal care items
  •  Any product from the "Second Life" category or any product in the category "Used" by NZBike Tour and Rental , NZBike  Accessories or NZBike Workshop

To complete your return, we require a receipt or proof of purchase.
Please do not send your purchase back to the manufacturer.

There are certain situations where only partial refunds are granted (if applicable)
- Any item not in its original condition, is damaged or missing parts for reasons not due to our error

Description

This special regulator bypasses the vehicle’s failure-prone wiring harness between the regulator and battery and instead connects directly to the battery with ring terminals for the best possible connection.

Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Specifications:

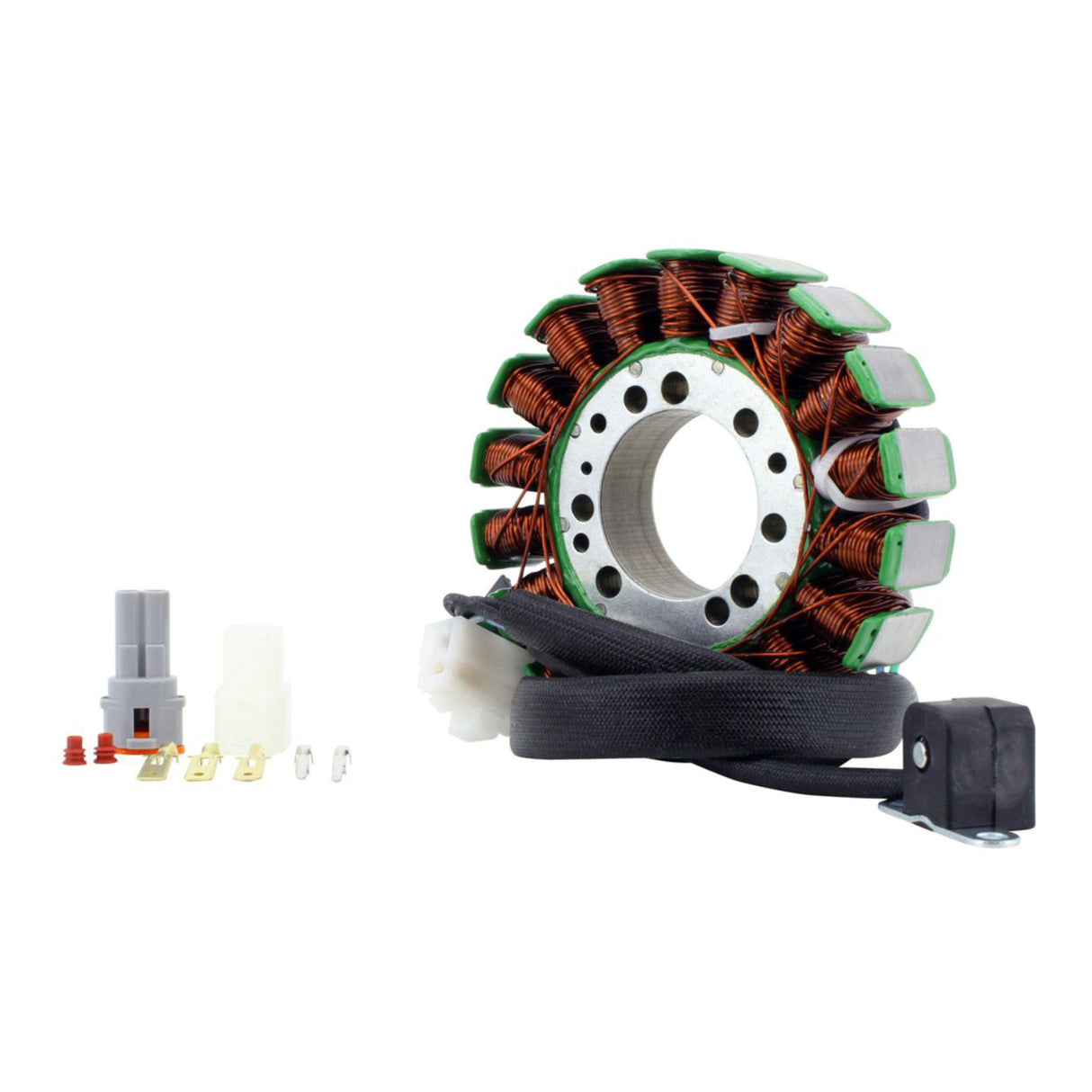

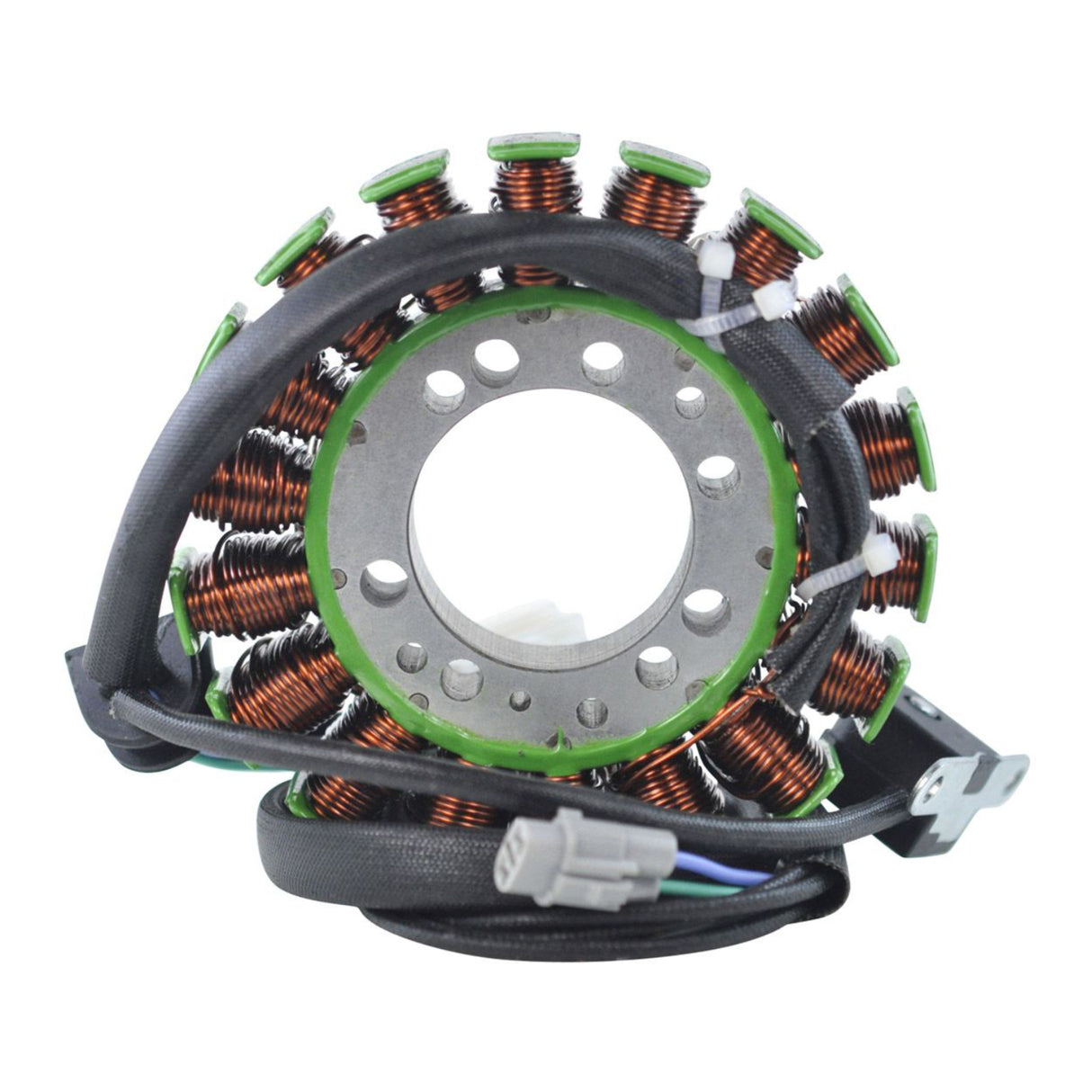

  • Stator:

    • Dimensions:
      • Interior diameter: 42 mm
      • Exterior diameter: 115 mm
      • Thickness: 22 mm
      • Length of wires stator to grommet: 140 mm
      • Length of wires grommet to plug: 530 mm & 590 mm
      • Length of pickup coil's wire to grommet: 155 mm
    • Other Specifications:
      • Number of wires: 5
      • Number of plugs: 2
      • Number of pins: 5
      • Number of poles: 18
      • Wire to wire resistance:
        • Alternator: Black to Black = 0.5 ohms ±20%
        • Alternator: to ground = O.L (open loop)
        • Pickup: Green to Blue = 200 ohms ±20%

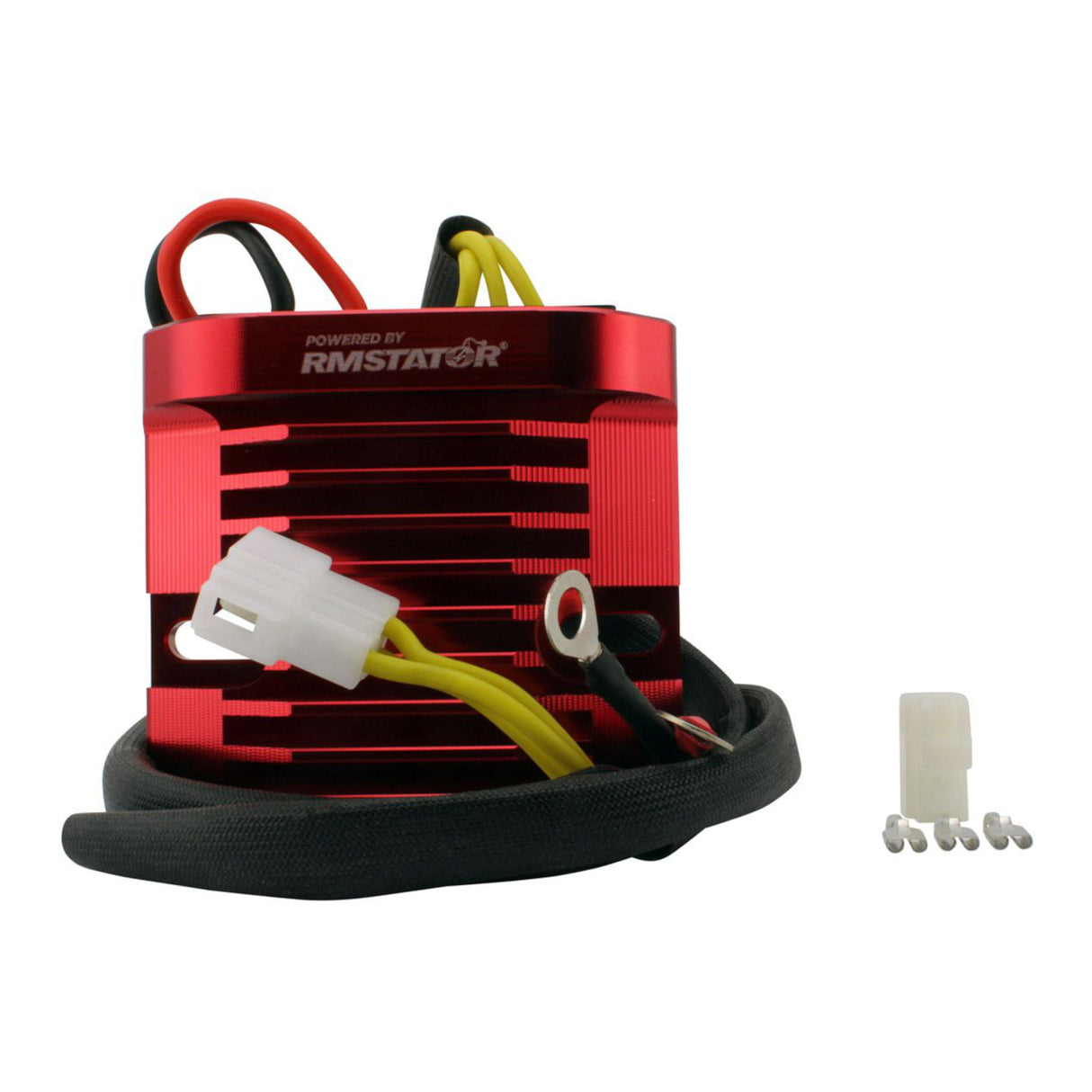

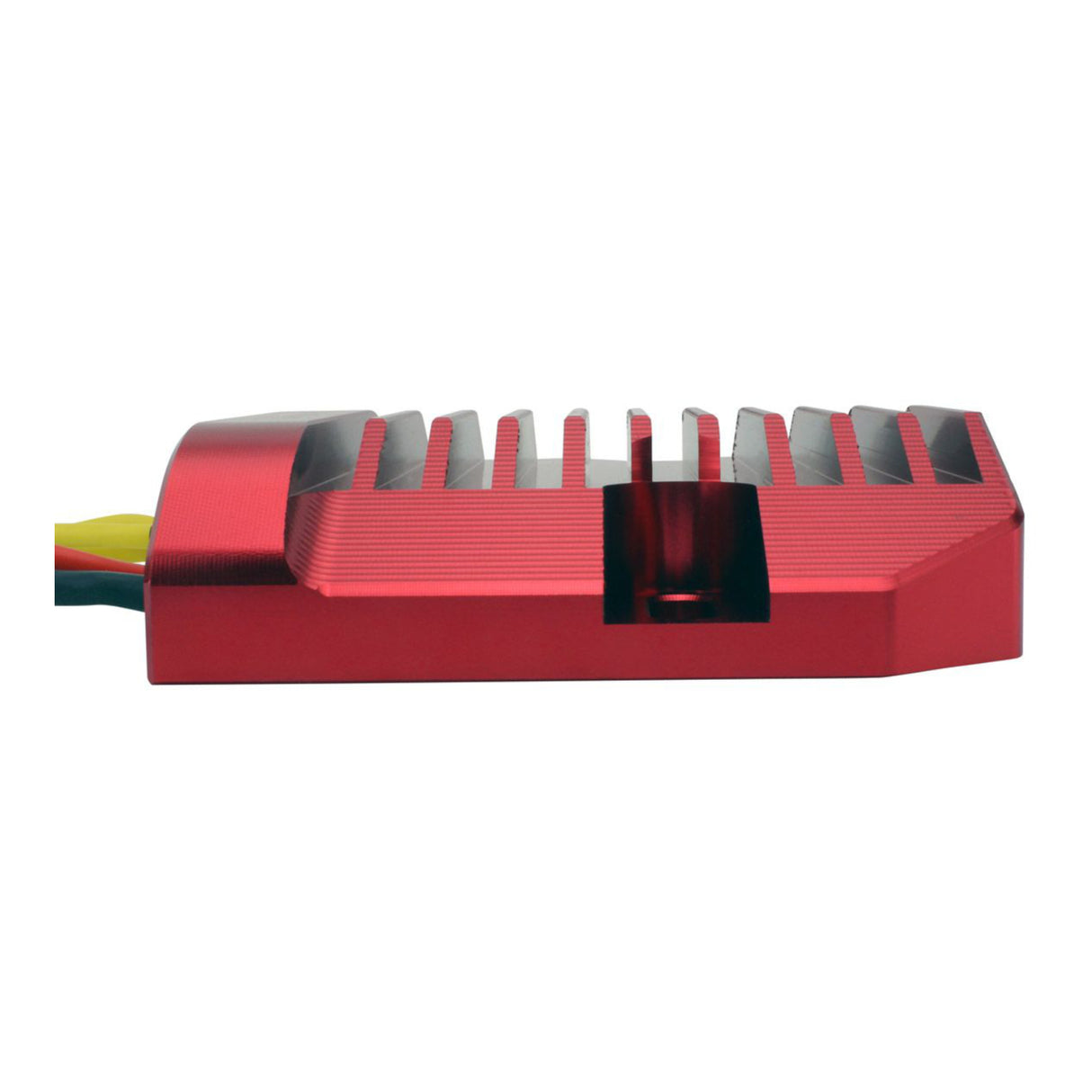

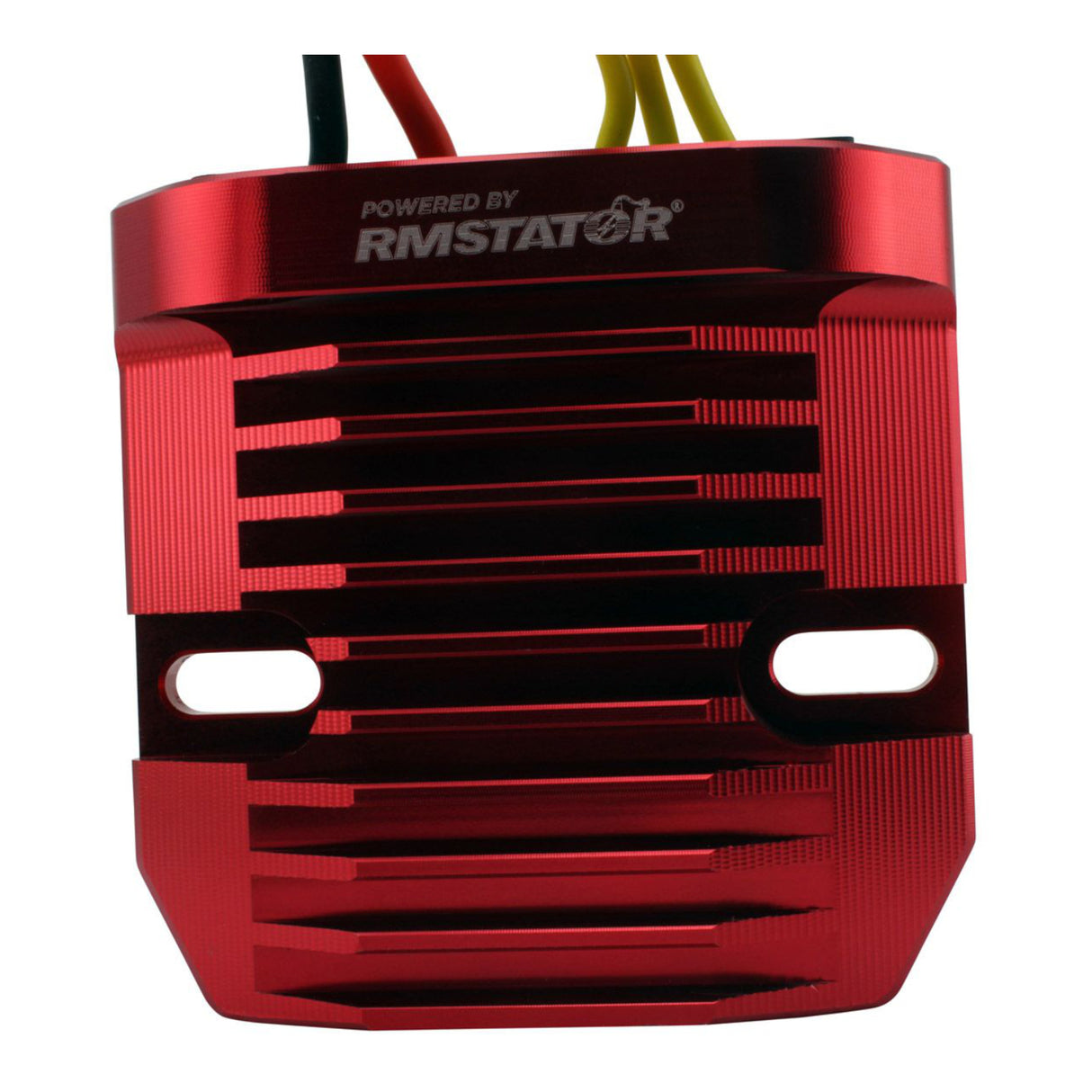

  • RMSTATOR Red Machined Aluminum Mosfet Voltage Regulator Rectifier:

    • Dimensions:
      • Width: 95 mm
      • Length: 90 mm
      • Height: 30 mm
      • Wires length: 811 mm and 350 mm
      • Fixation holes center to center: 75 mm
    • Other Specifications:
      • Number of plugs: 2
      • Number of pins: 5
      • Number of wires: 5
      • Minimum Charging Voltage: 14.5 V ± 0.5 V
      • Maximum Charging Current: 50 A / 500 W
      • Open Circuit Voltage: < 15 V
      • Operation Temperature: -20°C to 85°C
