CERWIN VEGA  |  SKU: XED11001D

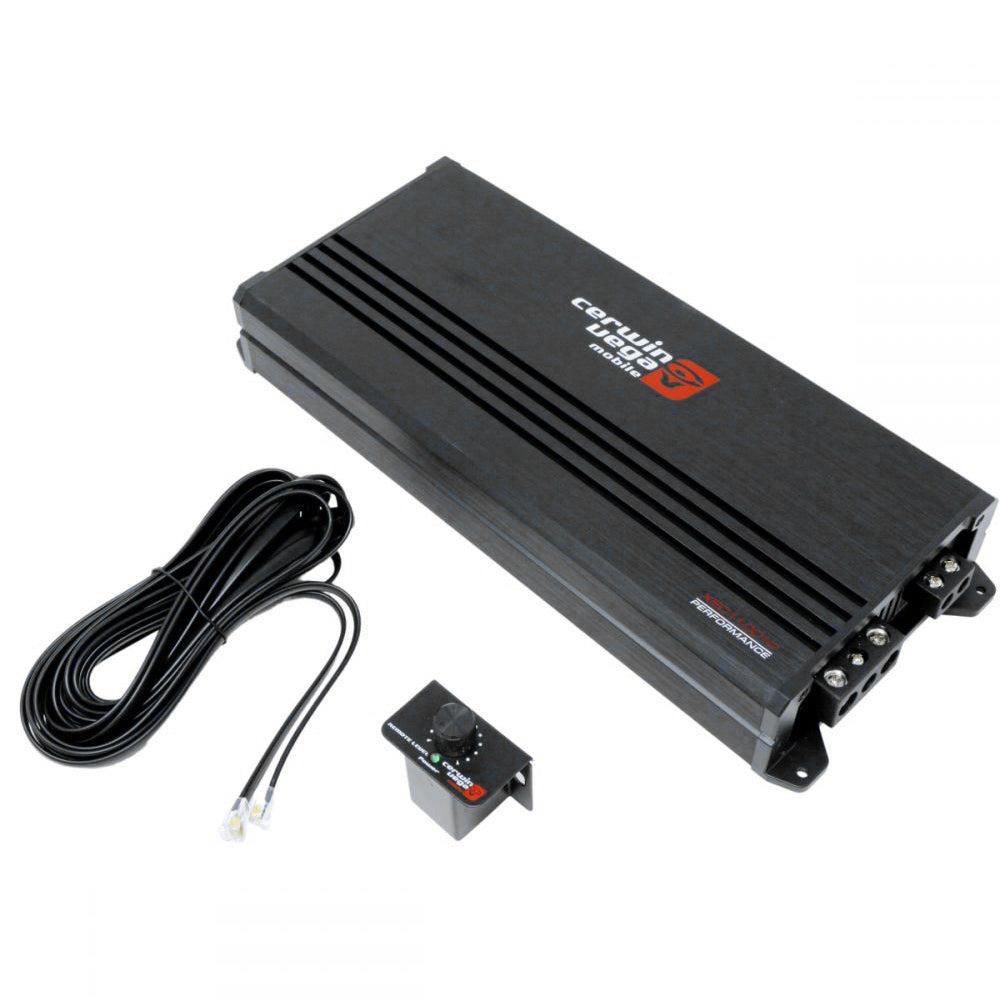

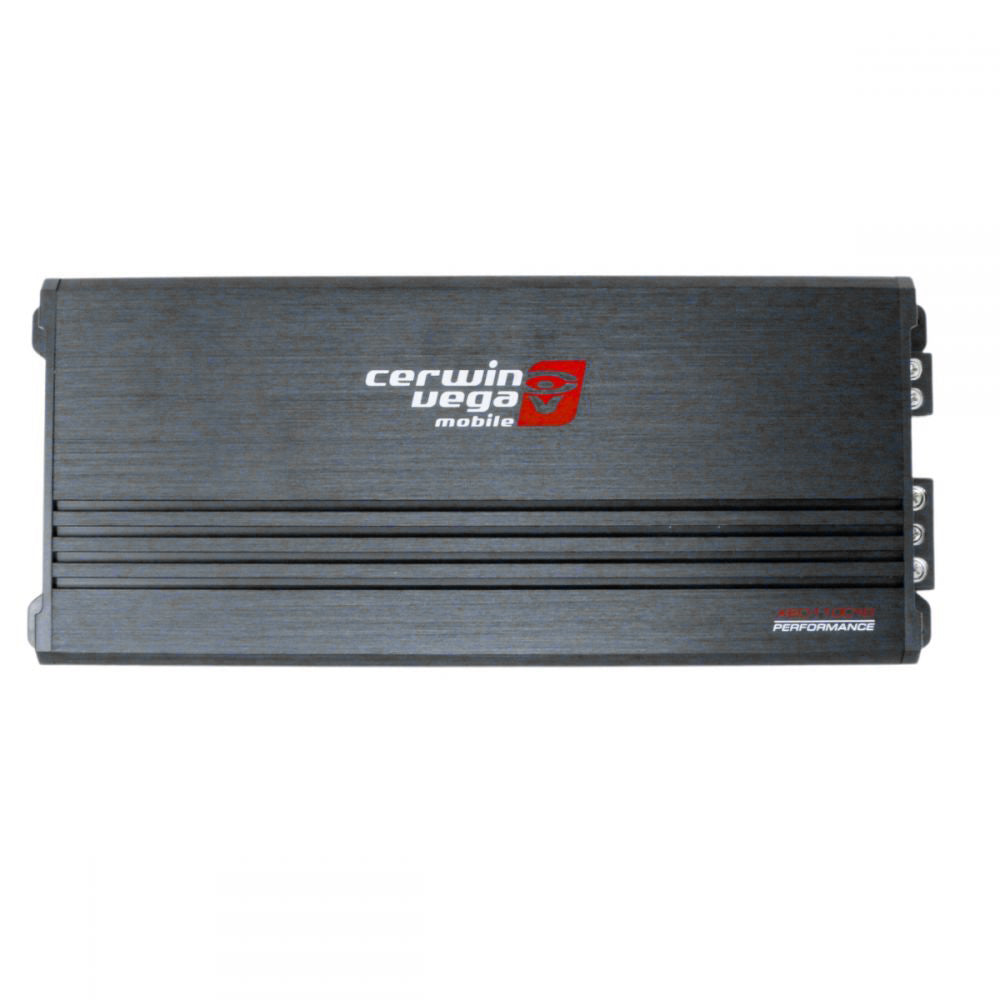

CERWIN VEGA AMPLIFIER XED SERIES MONO 650W RMS @ 4OHM / 1100W RMS @ 2OHM

$459.95
Tax included Shipping calculated at checkout.

Stock Item

Delivery and Shipping

Products marked as "In Stock" are stored in our different distribution centers. These products will ship within 2-5 business days. Orders are not shipped or delivered on weekends or holidays.

Items are then sent by courier, we use Courierpost & Posthaste which will take 1-3 days to arrive depending on your location and the size of the parcel.

While we will do our best to ship from the distribution center closest to you, not all items will always be in stock in every location at all times.  In some cases we will split the order and ship each package out to you individually and in other cases we may need to consolidate the items in one location to ship out as one package.  We utilize our best judgment in an attempt to get the products to you as quickly as possible.

You will receive a Shipment Confirmation email once your order has shipped containing your tracking number(s). The tracking number will be active within 48hours.

Returns

Our returns policy lasts 21 days. If 21 days have gone by since your purchase, unfortunately we can’t offer you a refund or exchange.

To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging.

Additional non-returnable items:

  • Gift cards
  •  Downloadable software products
  •  Any Electrical products
  •  Some health and personal care items
  •  Any product from the "Second Life" category or any product in the category "Used" by NZBike Tour and Rental , NZBike  Accessories or NZBike Workshop

To complete your return, we require a receipt or proof of purchase.
Please do not send your purchase back to the manufacturer.

There are certain situations where only partial refunds are granted (if applicable)
- Any item not in its original condition, is damaged or missing parts for reasons not due to our error

Description

XED11001D - 1 Channel XED Series Class-D Amplifier

Key Features:
• 1-channel Monoblock Class-D car audio amplifier
• Designed specifically for high-performance subwoofer systems
• High-efficiency amplifier technology for powerful output
• Lightweight aluminum chassis for superior heat dissipation
• Clean, distortion-free bass reproduction
• Ideal for aftermarket subwoofer upgrades

Specifications:

POWER RATING

RMS POWER PER CHANNEL 4Ω 650W X 1
RMS POWER PER CHANNEL 2Ω 1100W X 1

FREQUENCY RESPONSE (HZ): 35HZ - 350HZ

POWER SUPPLY

  • Power Supply: Full PWM
  • Power Supply Threshold: 10.0V-16.0V (DC)
  • Idle Current: (0.7A)

DISTORTION

  • THD 4 (100Hz @4Ω): <0.1%
  • S/N Ratio (A weighted @1W): -85dBA
  • S/N Ratio (A weighted @FP): -101.1dBA

INPUT SENSITIVITY

  • Low Input Level: 250mV-6V
  • High Input Level: 1.1V~>20.0V

INPUT IMPEDANCE

  • Low Input Level: 20KΩ
  • High Input Level: 100Ω

OUTPUT STAGE

  • Output Impedance: 2Ω
  • Damping Factor (50Hz @ 4?): >70
  • Bandwidth (-3dB): 10Hz-250Hz

CROSSOVER (-12dB/Oct)

  • Variable High-Pass:
  • Variable Low-Pass: 35Hz-250Hz
  • Variable Sub-Sonic: 10Hz-50Hz

FUSE RATINGS

  • ATC: 35A x 3 (Inside)

DIMENSIONS

  • L x W x H: 11”x 4.7”x 1.8” (280mm x 120mm x 46.5mm)

FEATURES

  • Bass Boost: 0dB-12dB
  • LED Power/Protect Light Indicator
  • Bass Control Included
  • MFR #: XED11001D
