Description
Description

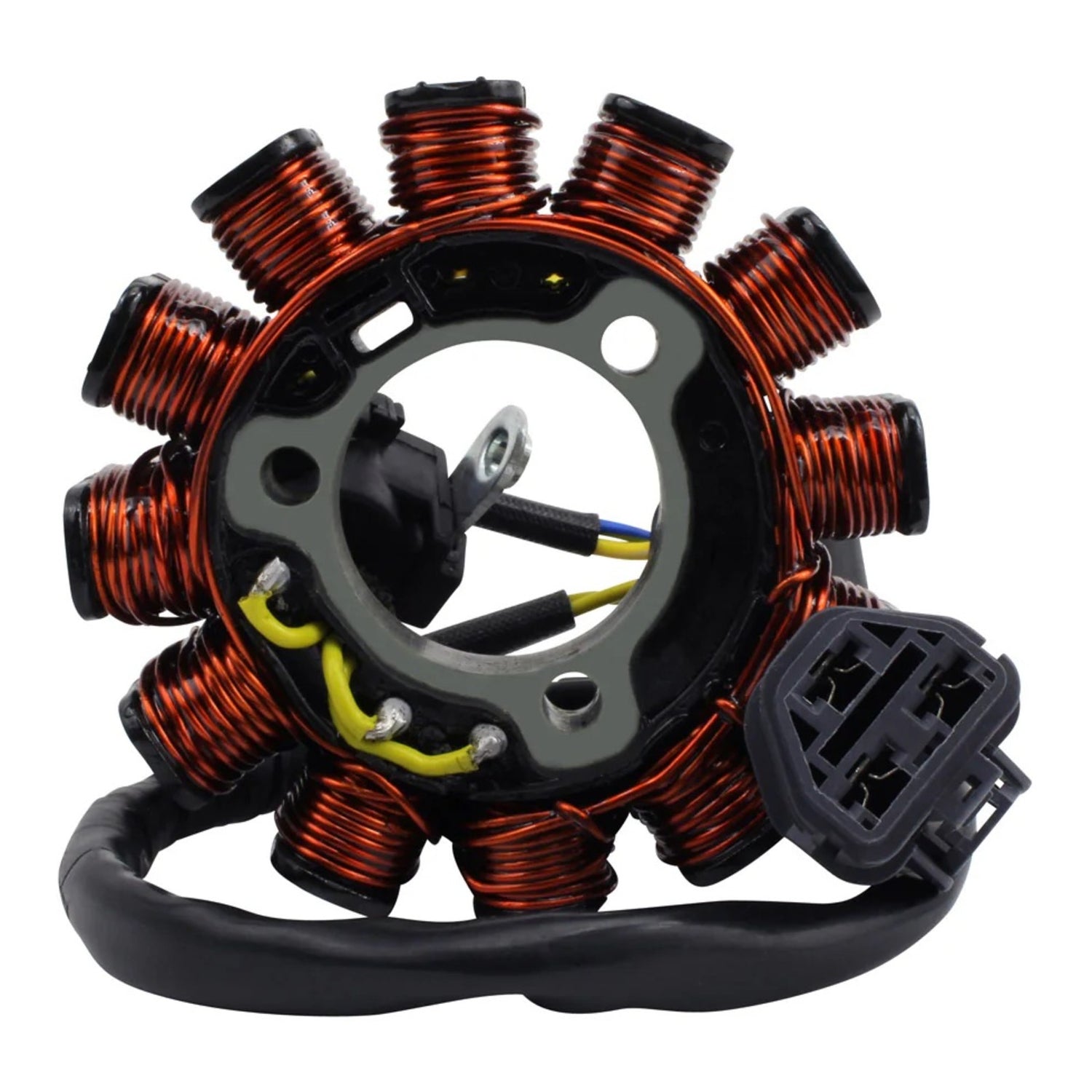

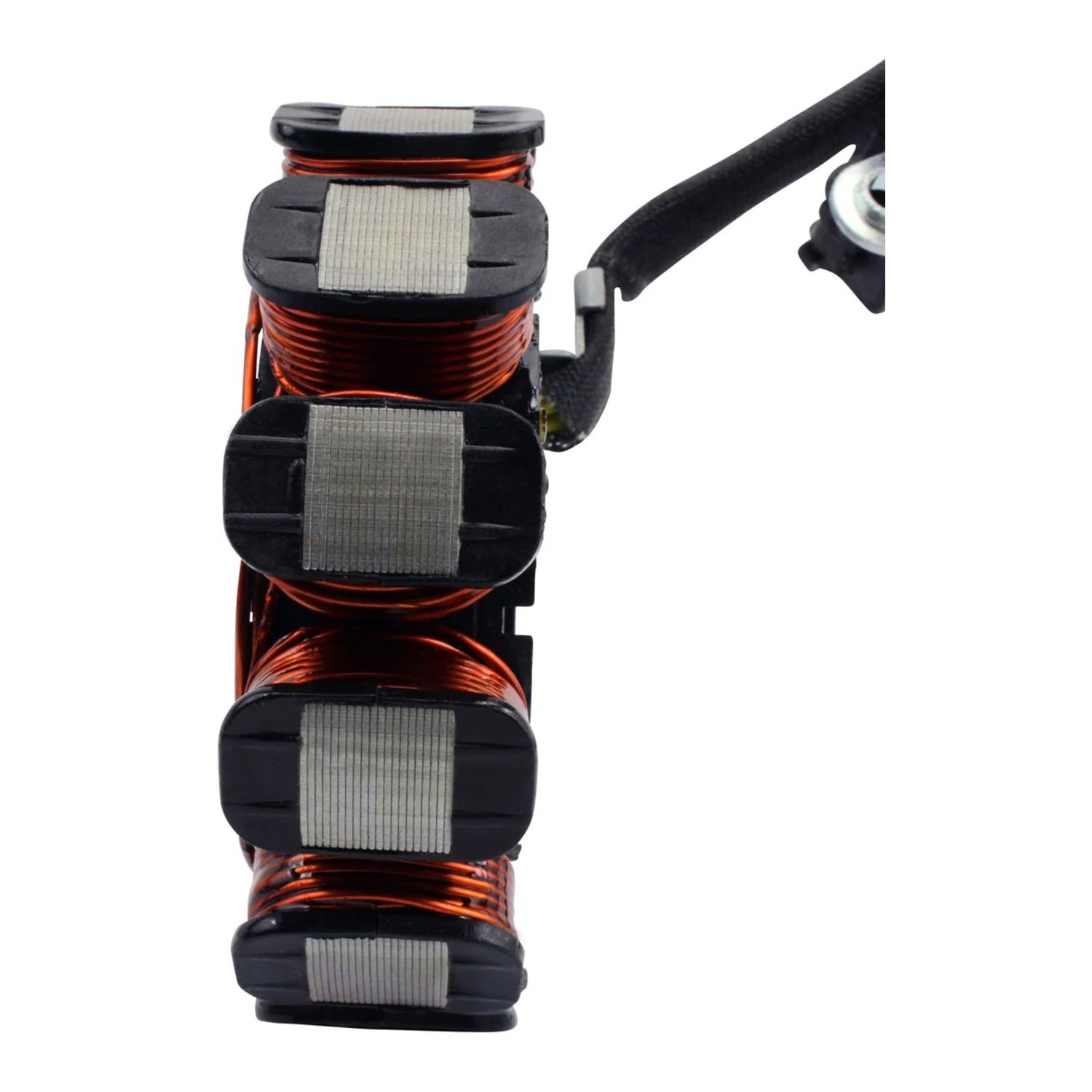

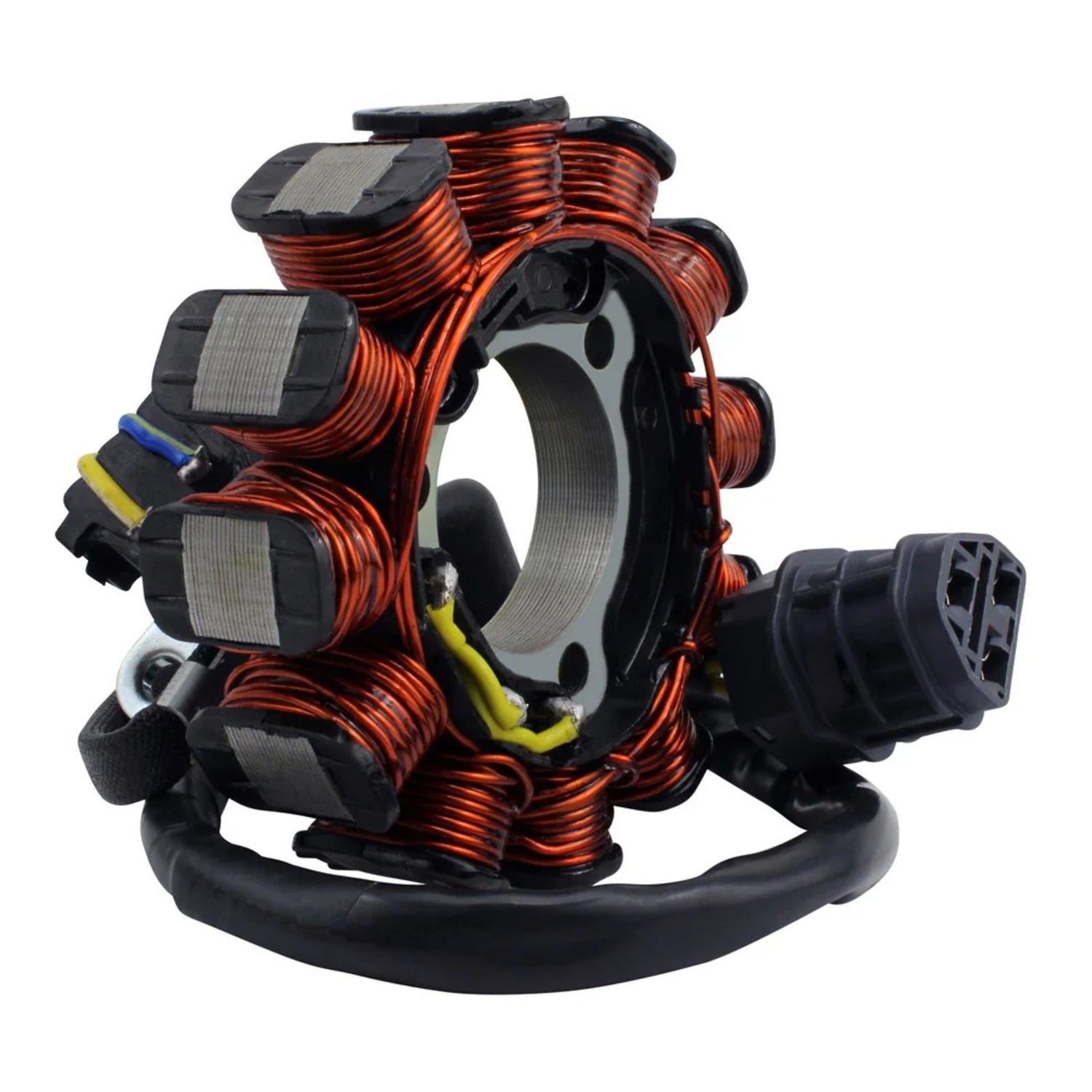

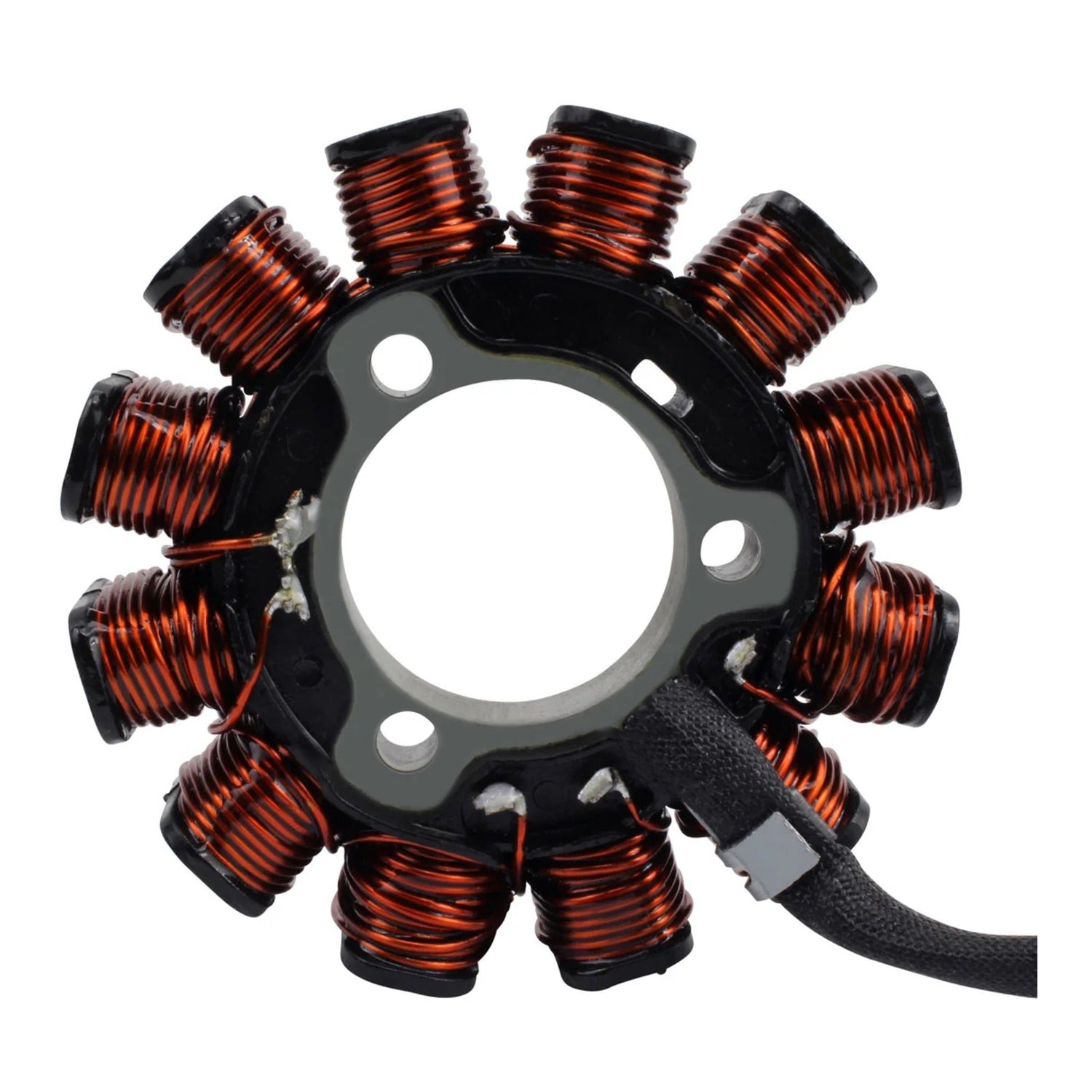

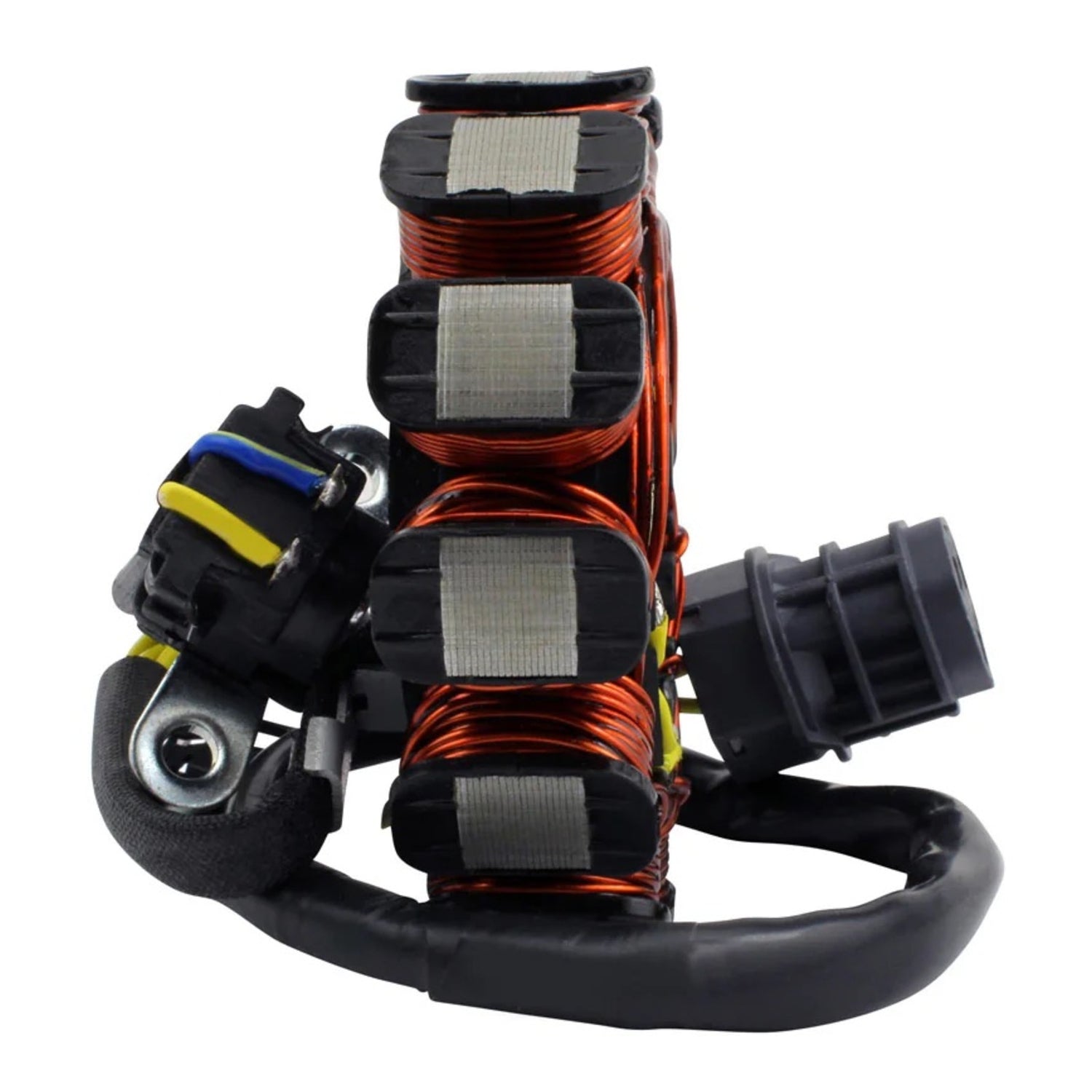

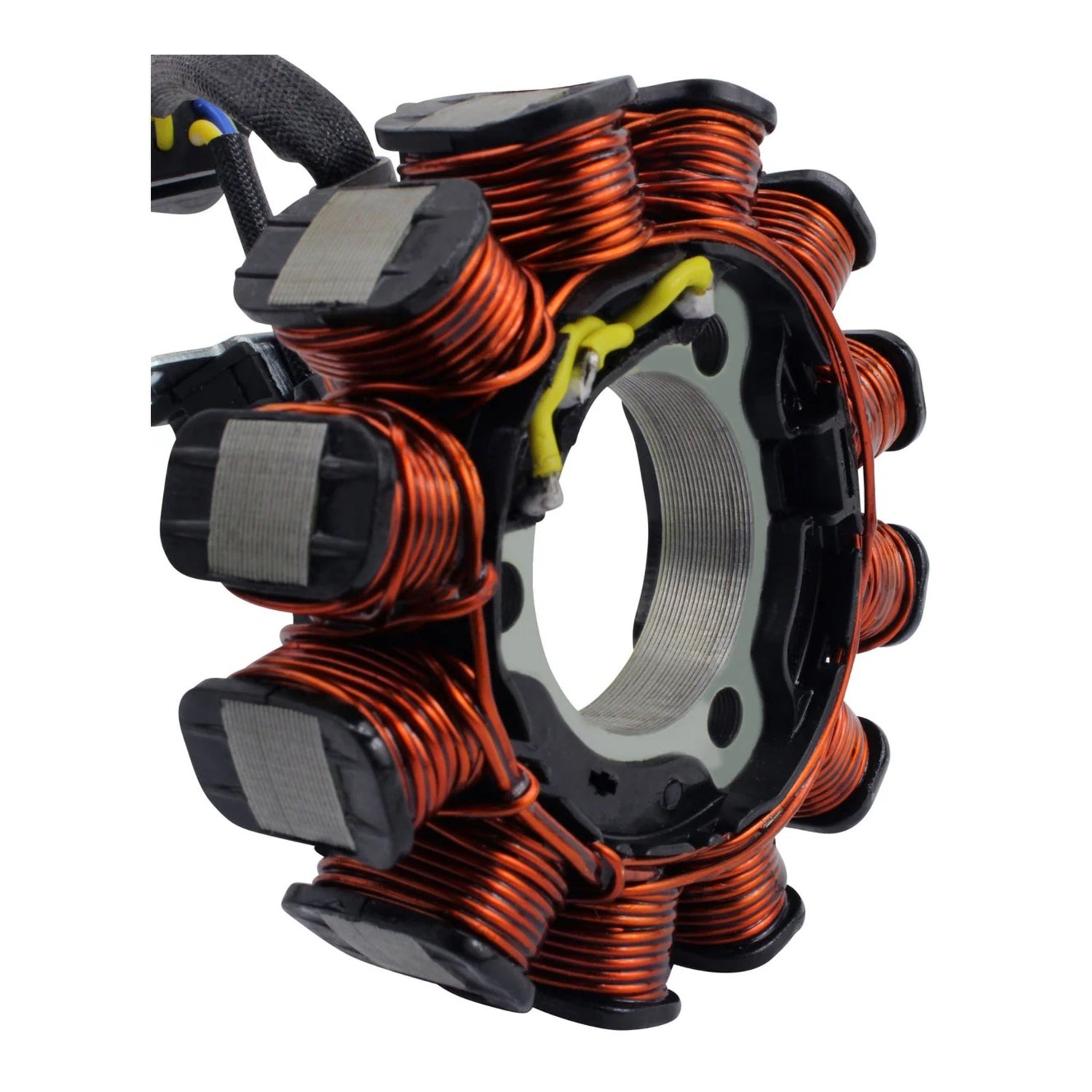

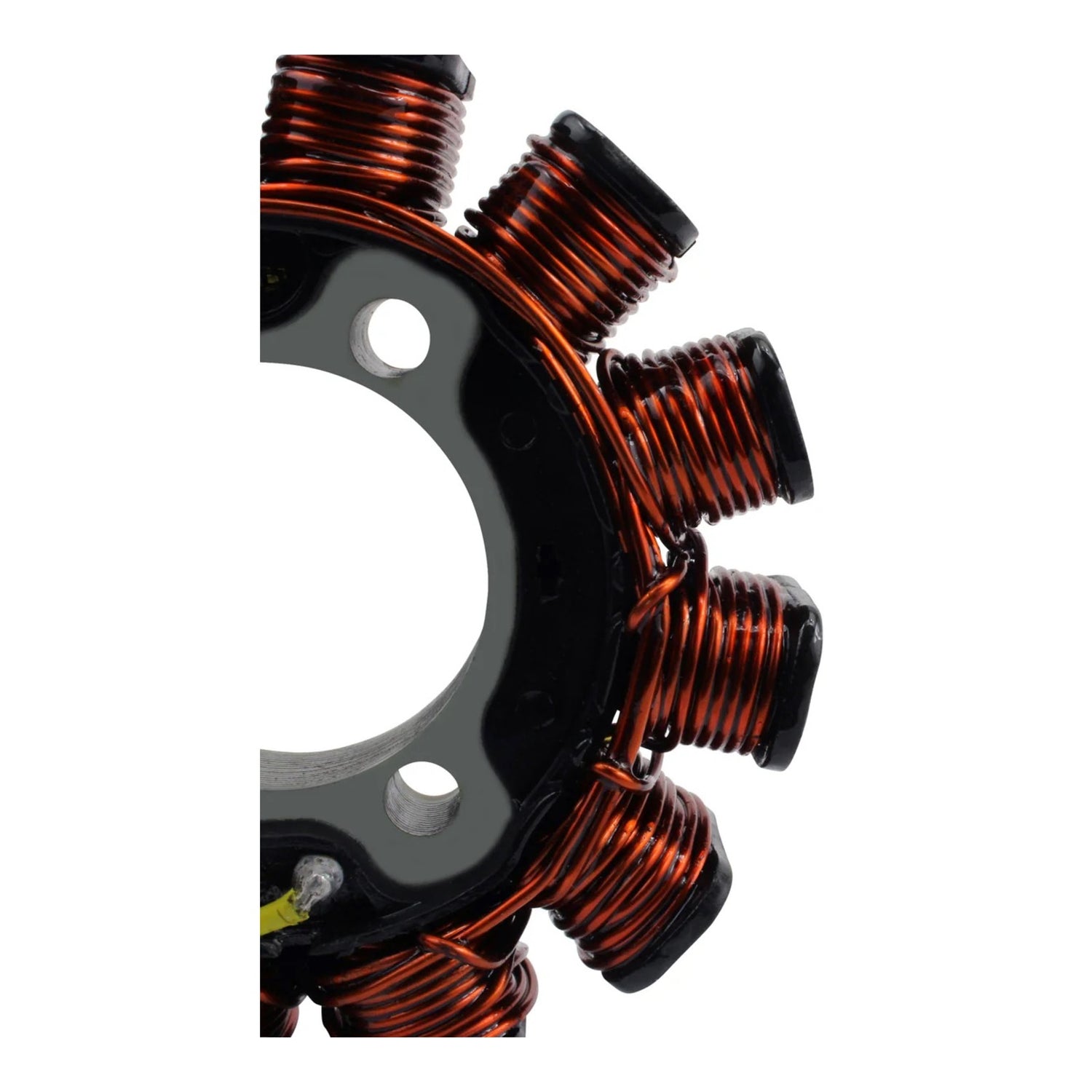

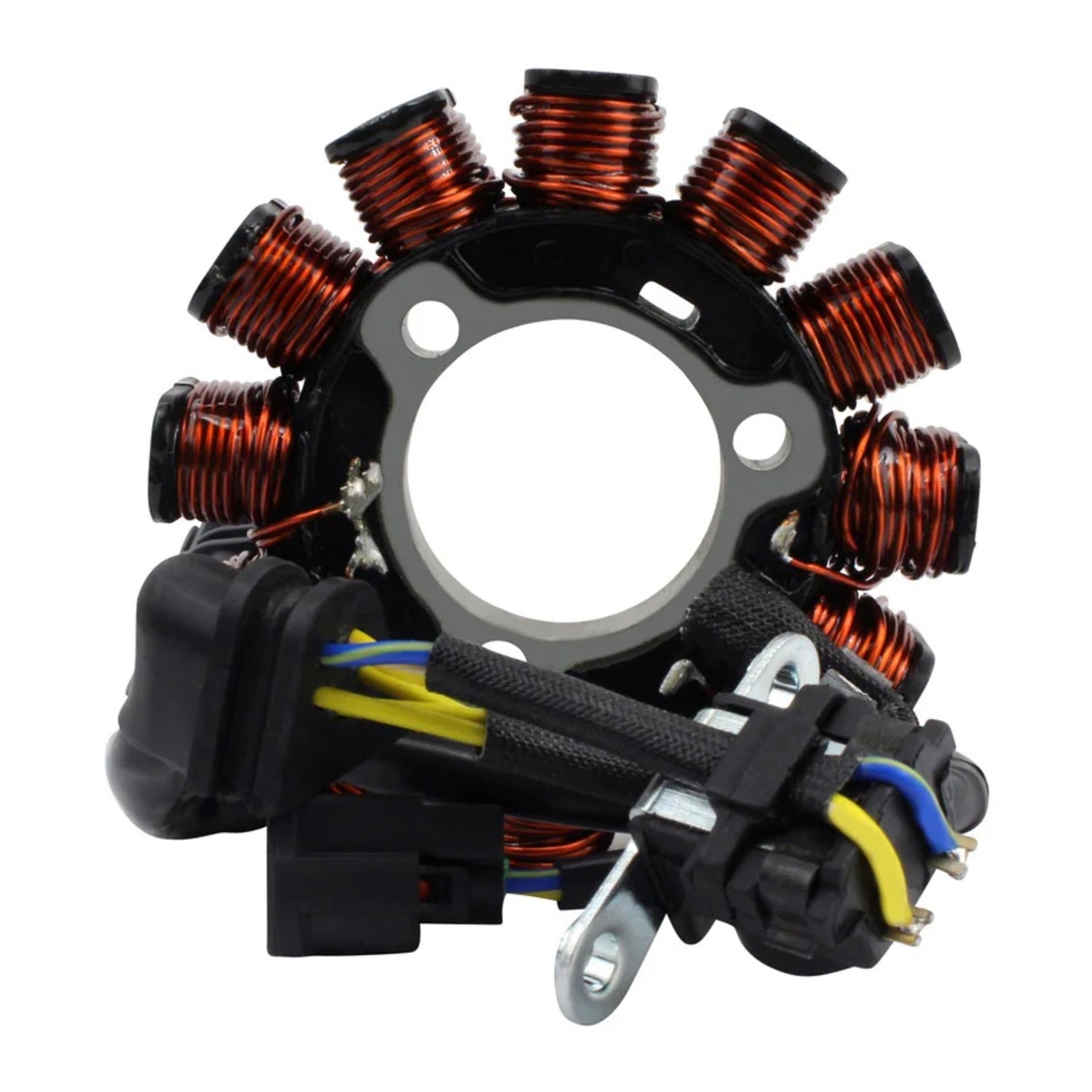

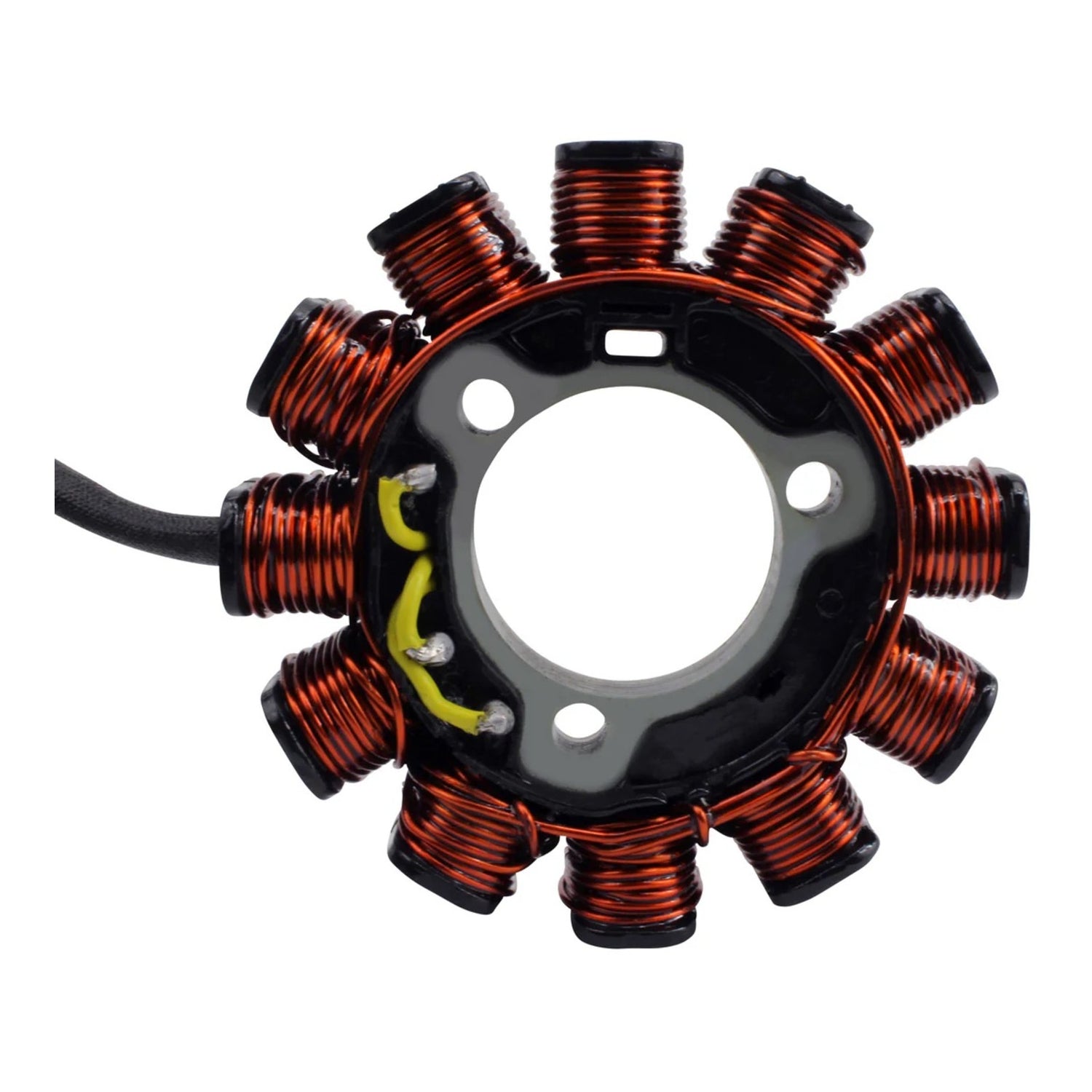

Brand new aftermarket high-output stator (200W).
Features:
- Direct replacement for your original unit.
- Plug-and-play, direct fit for easy installation.
- Highest grade lamination materials.
- Premium copper windings resistant to 200°C.

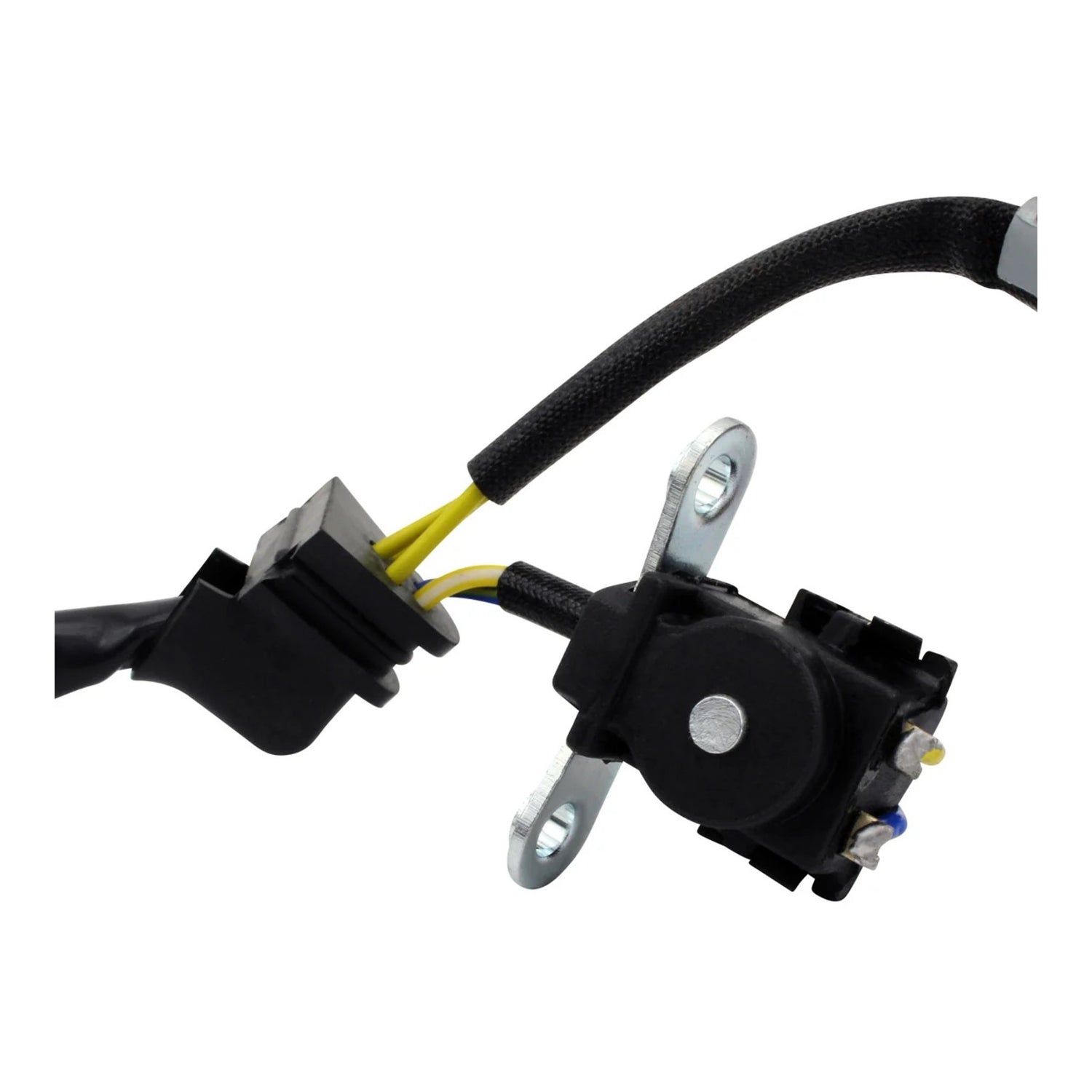

- Pickup pulsar coil included.

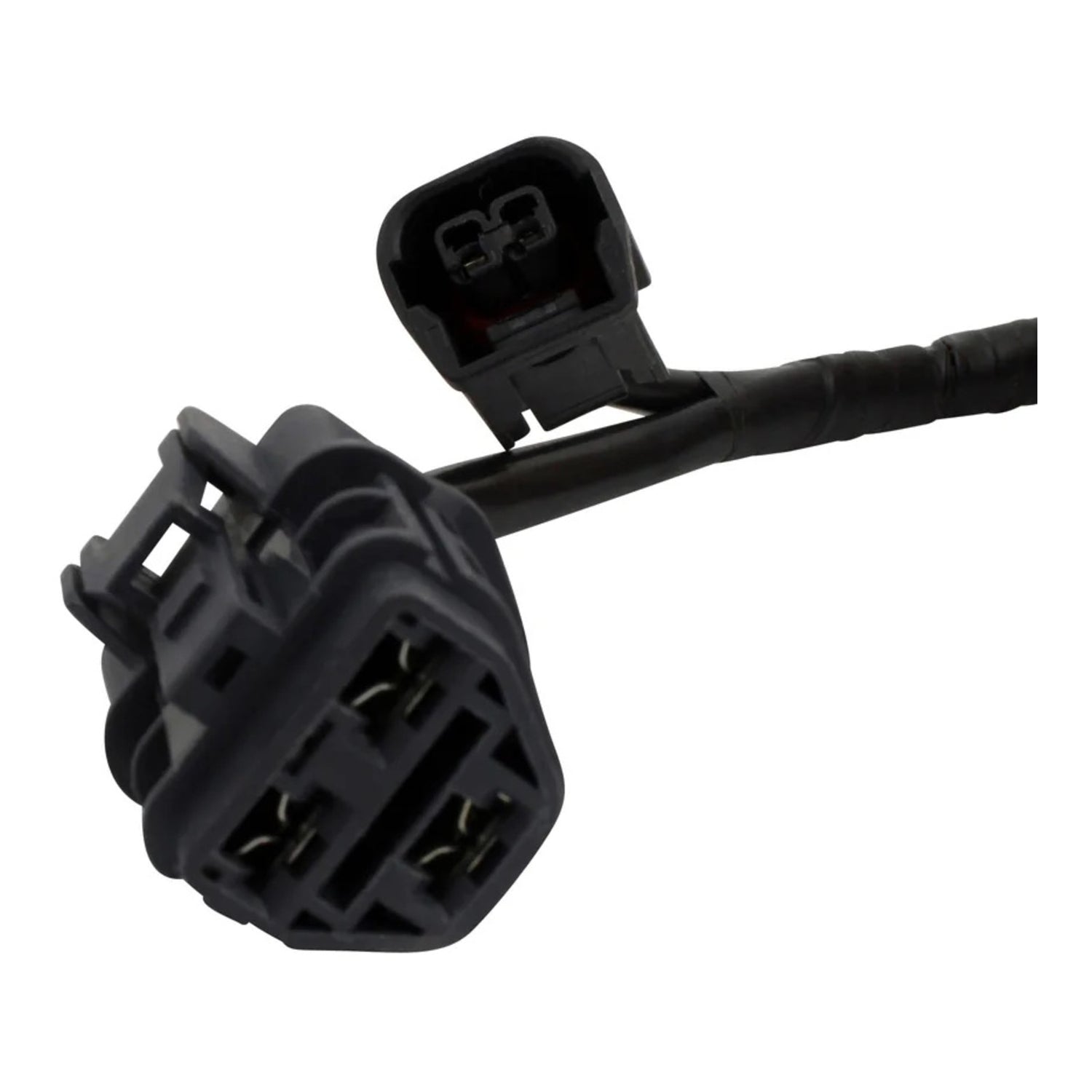

- Connectors included.

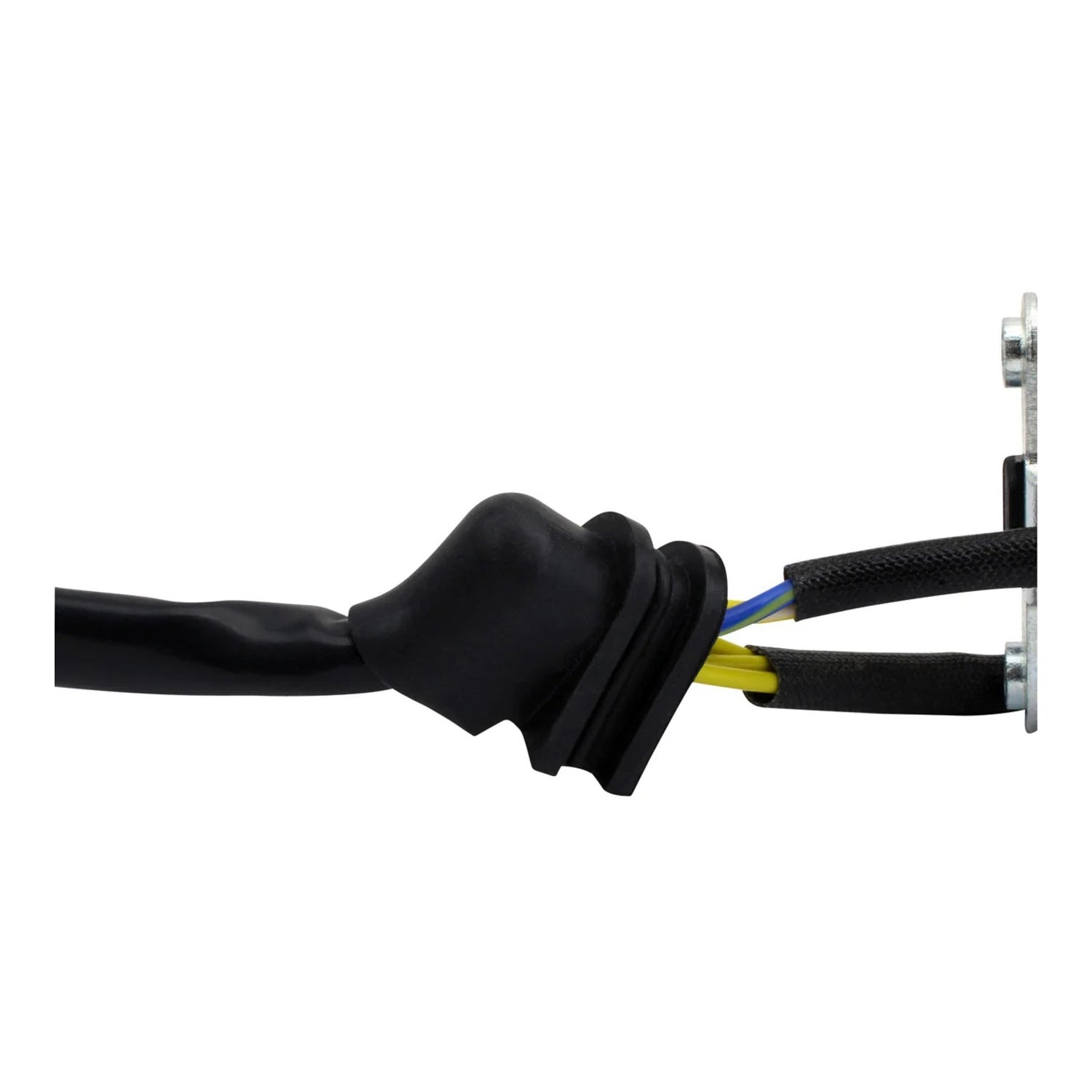

- Rubber grommet included.
- All units are tested before shipping.
Specifications:
Dimensio ns
- Interior diameter: 35 mm
- Exterior diameter: 89 mm
- Thickness: 12 mm
- Stator wires (to grommet): 80 mm
- Grommet to plug wire lengths: 250 mm and 310 mm
- Pickup coil wire (to grommet): 45 mm
Other Specifications
- Number of wires: 5
- Number of plugs: 2
- Number of pins: 5
- Number of poles: 12
Electrical Specifications
- Alternator resistance (Yellow to Yellow): 1.3 Ω ±20%
- Alternator resistance (Yellow to ground): O.L (open line)
- Pickup resistance (Blue/Yellow to White/Yellow): 240 Ω ±20%
