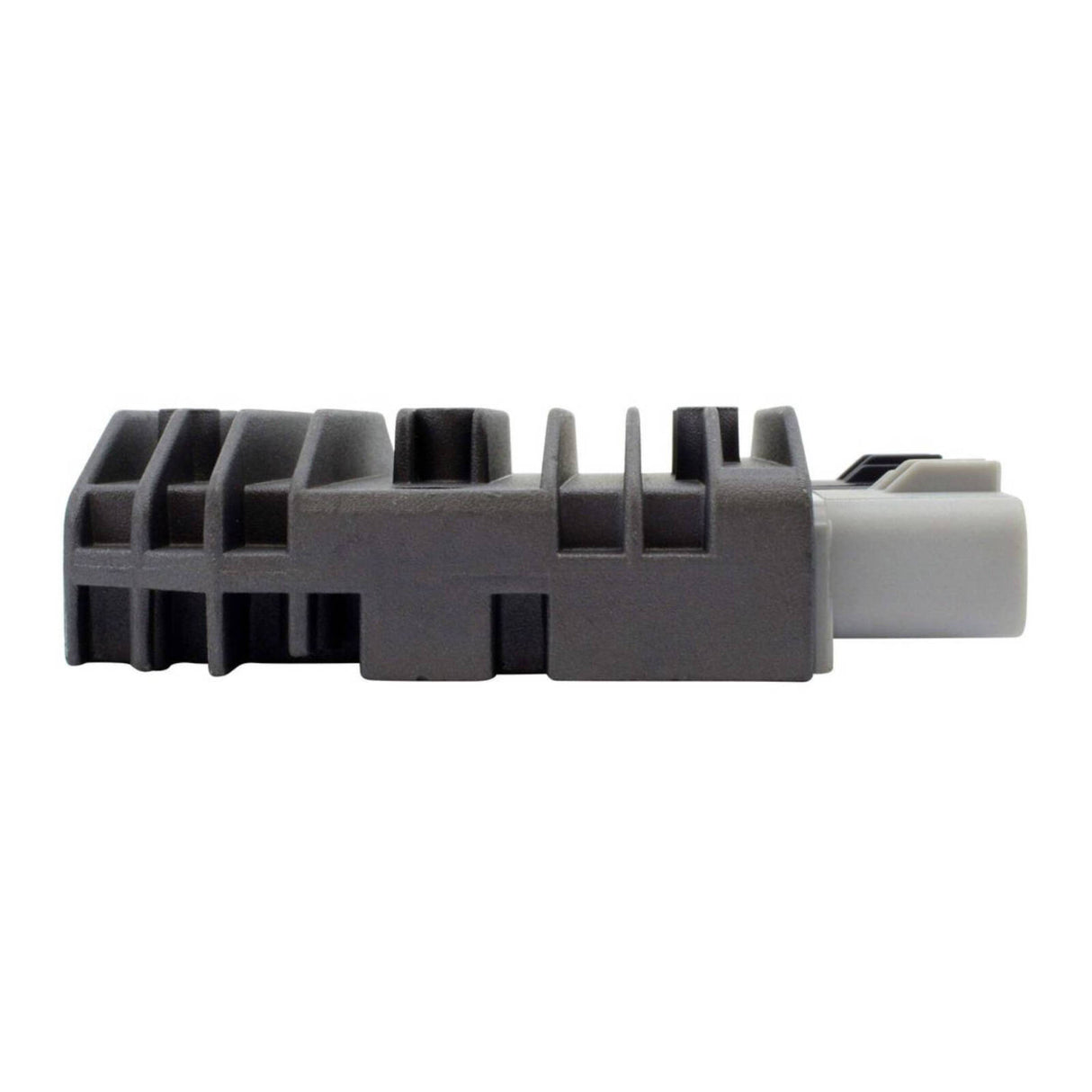

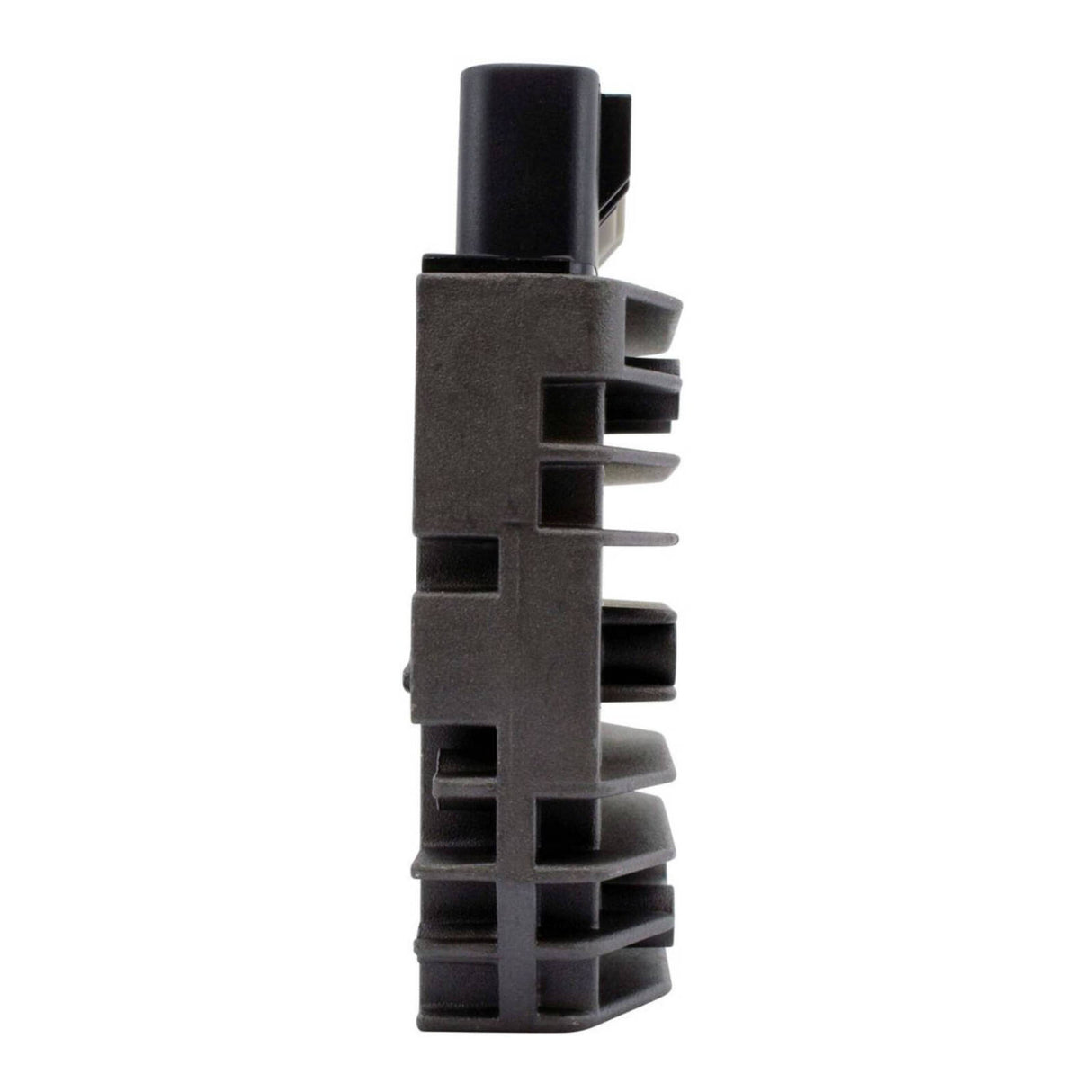

Series Regulator Can-Am Assorted (RMS020-106974)
Series Regulator Can-Am Assorted (RMS020-106974) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products marked as "In Stock" are stored in our different distribution centers. These products will ship within 2-5 business days. Orders are not shipped or delivered on weekends or holidays.
Items are then sent by courier, we use Courierpost & Posthaste which will take 1-3 days to arrive depending on your location and the size of the parcel.
While we will do our best to ship from the distribution center closest to you, not all items will always be in stock in every location at all times. In some cases we will split the order and ship each package out to you individually and in other cases we may need to consolidate the items in one location to ship out as one package. We utilize our best judgment in an attempt to get the products to you as quickly as possible.
You will receive a Shipment Confirmation email once your order has shipped containing your tracking number(s). The tracking number will be active within 48hours.
Returns
Returns
Our returns policy lasts 21 days. If 21 days have gone by since your purchase, unfortunately we can’t offer you a refund or exchange.
To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging.
Additional non-returnable items:
- Gift cards
- Downloadable software products
- Any Electrical products
- Some health and personal care items
- Any product from the "Second Life" category or any product in the category "Used" by NZBike Tour and Rental , NZBike Accessories or NZBike Workshop
To complete your return, we require a receipt or proof of purchase.
Please do not send your purchase back to the manufacturer.
There are certain situations where only partial refunds are granted (if applicable)
- Any item not in its original condition, is damaged or missing parts for reasons not due to our error
Description
Description
WHY USE SERIES ENHANCED TECHNOLOGY?
- Runs much cooler than the Shunt and MOSFET voltage regulator rectifier.
- Power only flows through the electrical components when the battery is charging.
- Allows the stator to have lower current flowing when not used, extending its lifetime.
- The regulator is easier to mount because it’s smaller than the OEM one.
With enhanced technology design
This product is an advanced technology that lowers operating temperatures for extended longevity and better performance than the OEM part.
THE SERIES VOLTAGE REGULATION TECHNOLOGY
RMSTATOR’s new SERIES voltage regulator brings better reliability and charging system performance. A SERIES regulator is a significant upgrade over typical shunt-type voltage regulators. A shunt regulator controls battery voltage by grounding the stator coils to dissipate current as heat, rather than sending it on to the battery. SERIES regulators control battery voltage by intermittently disconnecting stator coils from the regulator electronics, limiting current flow through the unit and onto the battery completely. This results in lower regulator and stator temperatures, more accurate voltage regulation, and increased reliability of the charging system components.
Brand new series voltage regulator rectifier
THE ULTIMATE SOLUTION TO THE REGULATOR RECTIFIER PROBLEMS! It is time to update or replace the voltage regulator with the advanced series type. It runs cooler than all OEM, shunt, or MOSFET, diode-style regulators. In addition, this rectifier has overheat protection; rather than burning up it will simply turn off for a while and cool off.
- Direct replacement for the original unit
- Plug-and-play, direct fit, easy installation
- The quality exceeds the OEM equipment
- Improved heat sink and charging capabilities
- Higher grade of electrical components
- All shipped products are tested

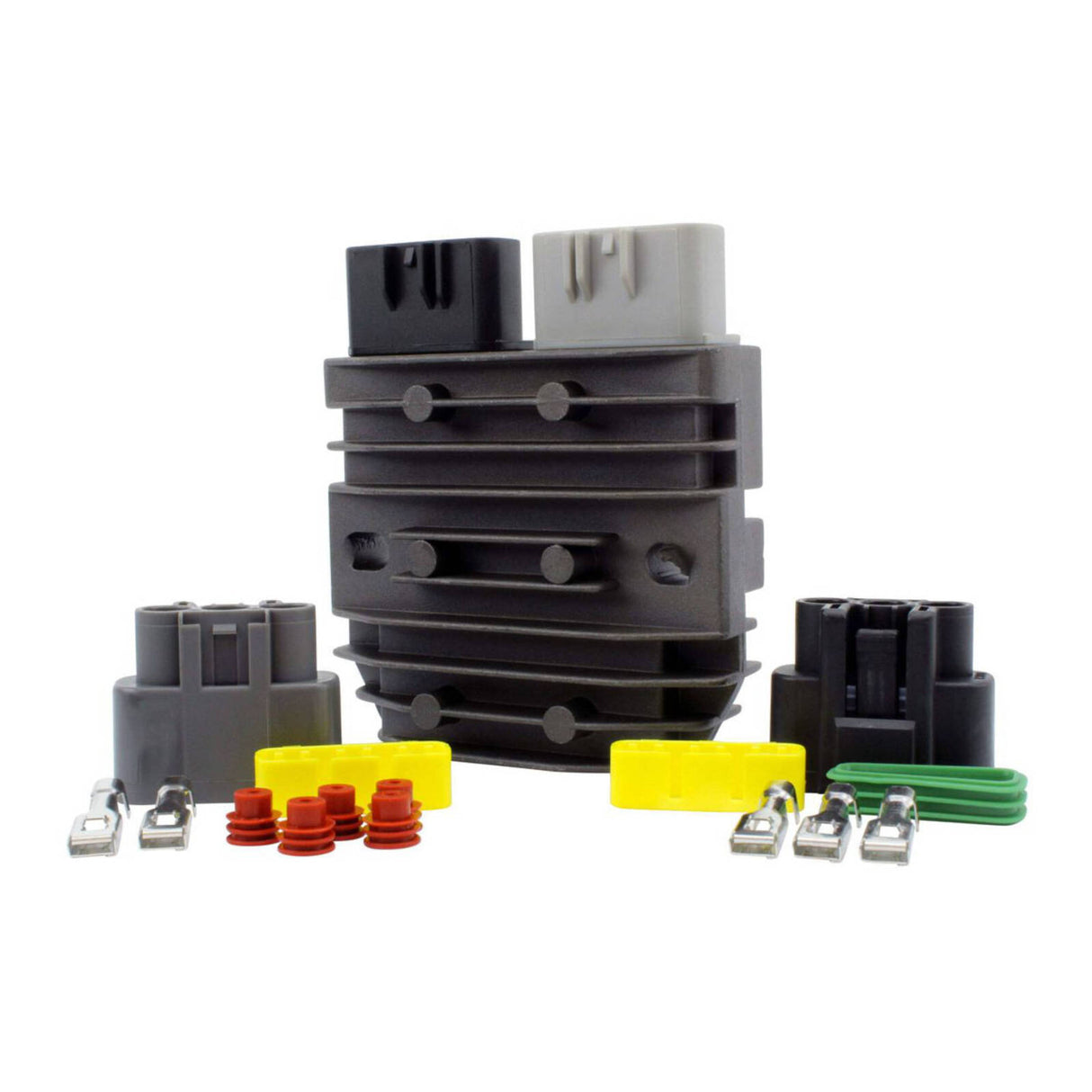

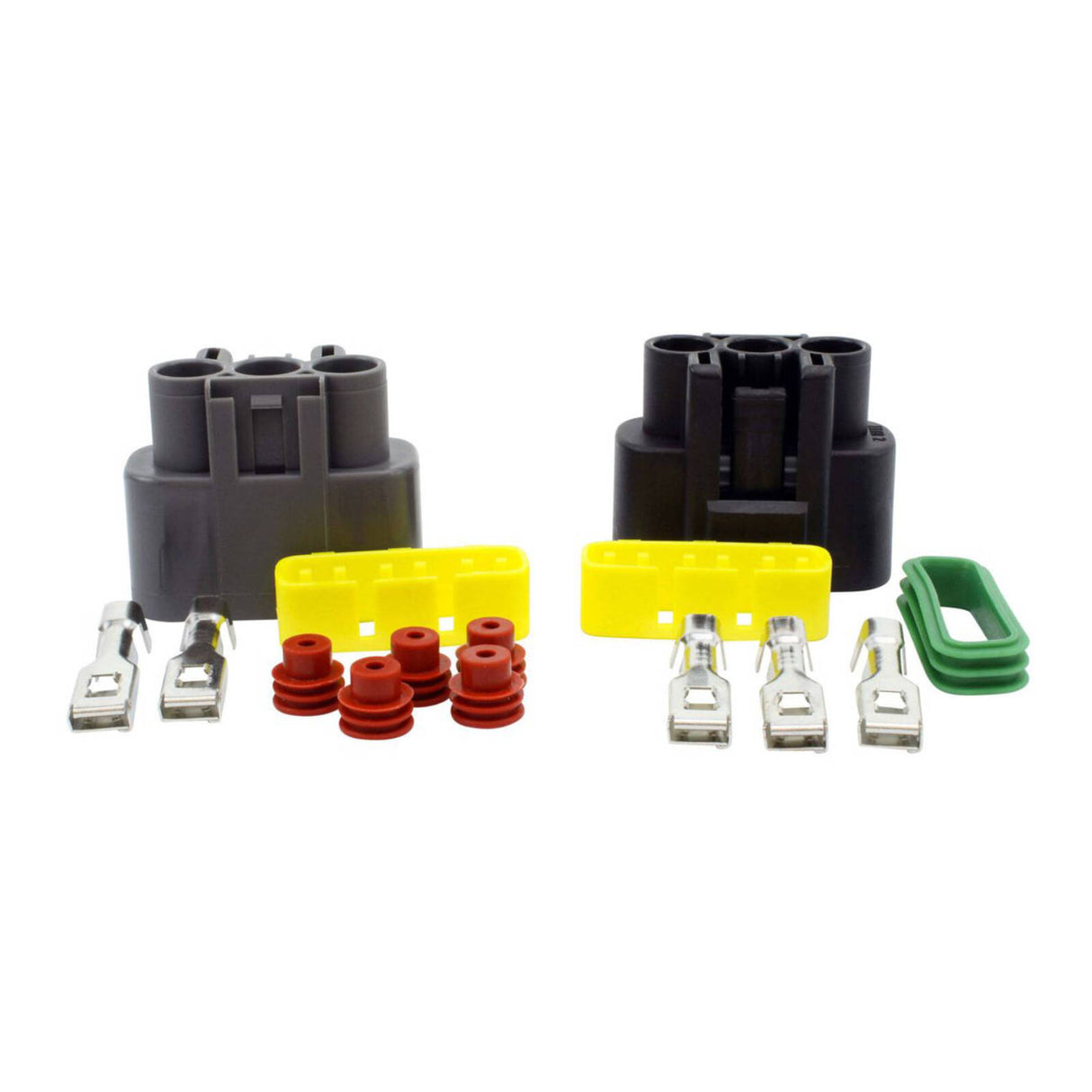

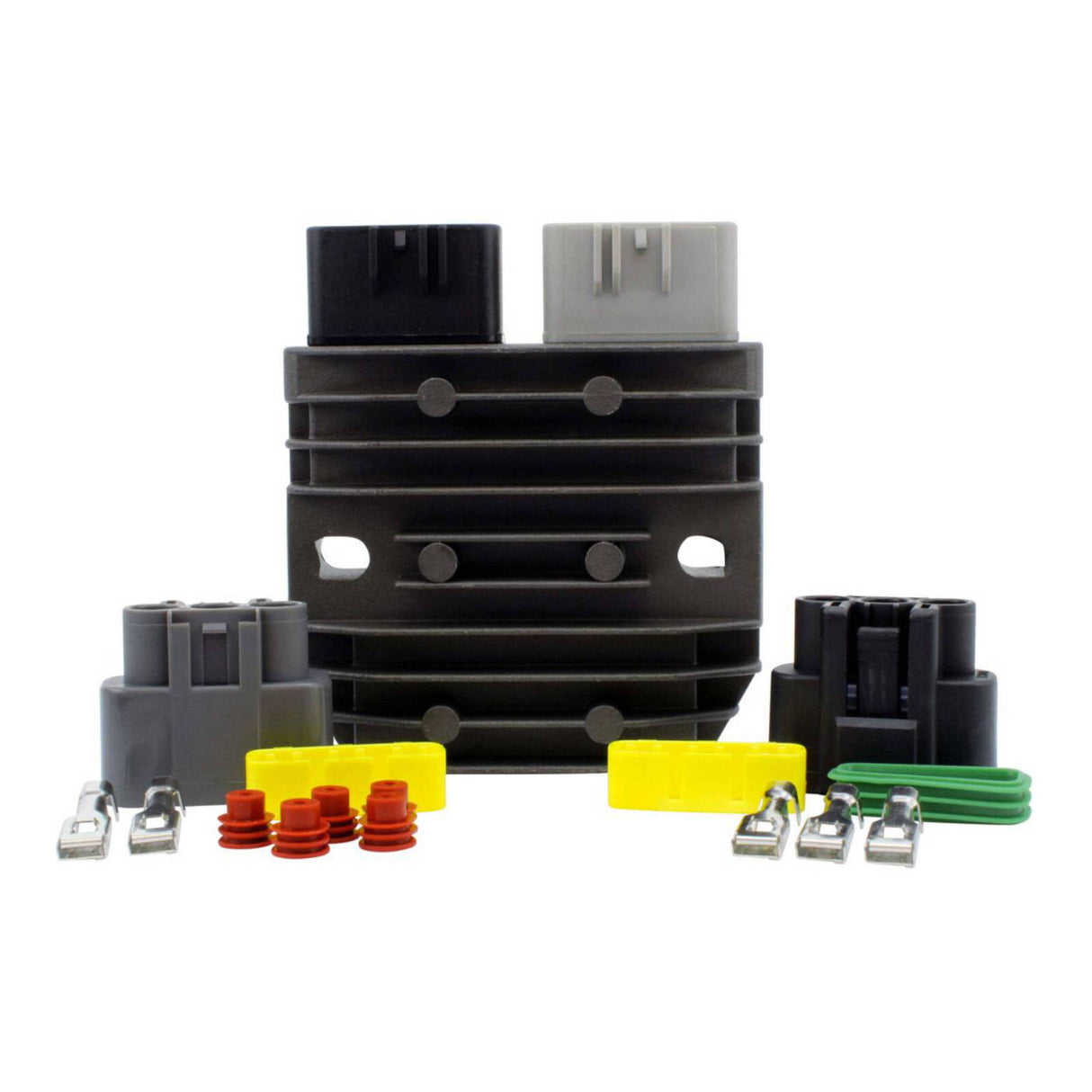

We even include the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.
All item pictures are accurate. If in doubt, do not hesitate and compare the item to the original part.
Before installing the new Series Voltage Regulator Rectifier :
- Check the AC output of the stator
- Replace any burned or corroded connectors on the stator and regulator rectifier
- Check and repair any melted wiring
- Use hi-temp dielectric grease on all connectors
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
Dimensions:
- Width: 84mm
- Length: 90mm
- Height: 32mm
- Distance between fixation holes centre to centre: 69mm
Other specifications:

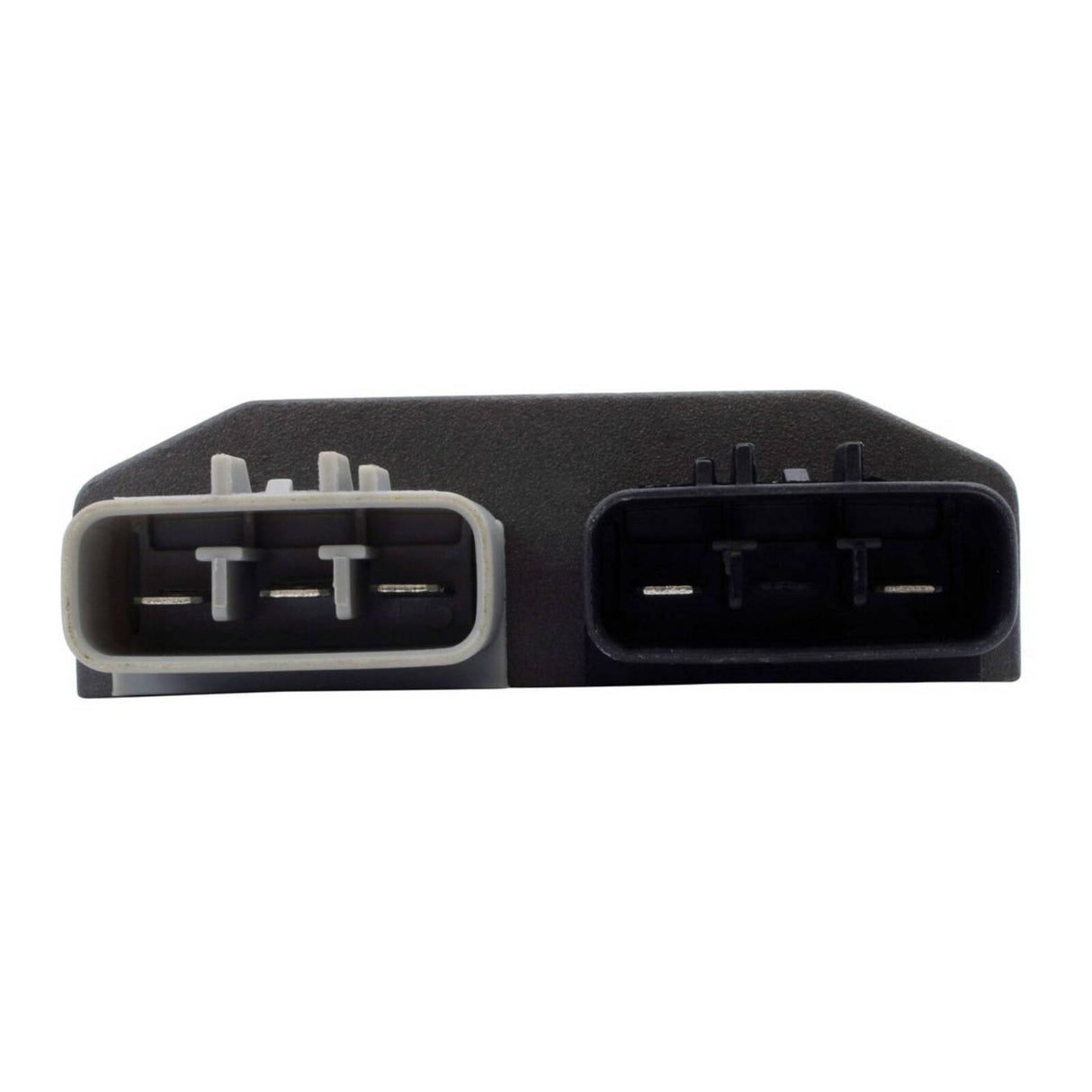

- Number of plugs: 2
- Number of pins: 5
- Minimum Charging Voltage: 14.5 V +/- 0.5 V
- Maximum Charging Current: 50 A / 500 W
- Open Circuit Voltage: < 15 V
- Operation Temperature: -20°C to 85°C
