Description
Description
Benefits of Series Voltage Regulators
Series regulators run much cooler than Shunt and MOSFET voltage regulator rectifiers and much cooler than OEM parts.
Moreover, the regulator has The new machined billet aluminium casing which dissipates heat 33% better than standard moulded casing.
Power only flows through the electrical components when the battery is charging.
Allows the stator to have lower current flowing when not used, extending its lifetime.
About the Series Voltage Regulation Technology
RMSTATOR’s new SERIES voltage regulator brings better reliability and charging system performance. A SERIES regulator is a significant upgrade over typical shunt-type voltage regulators.
A shunt regulator controls battery voltage by grounding the stator coils to dissipate current as heat, rather than sending it on to the battery. SERIES regulators control battery voltage by intermittently disconnecting stator coils from the regulator electronics, limiting current flow through the unit and on to the battery completely.
This results in lower regulator and stator temperatures, more accurate voltage regulation, and increased reliability of the charging system components.
Install Like a Pro

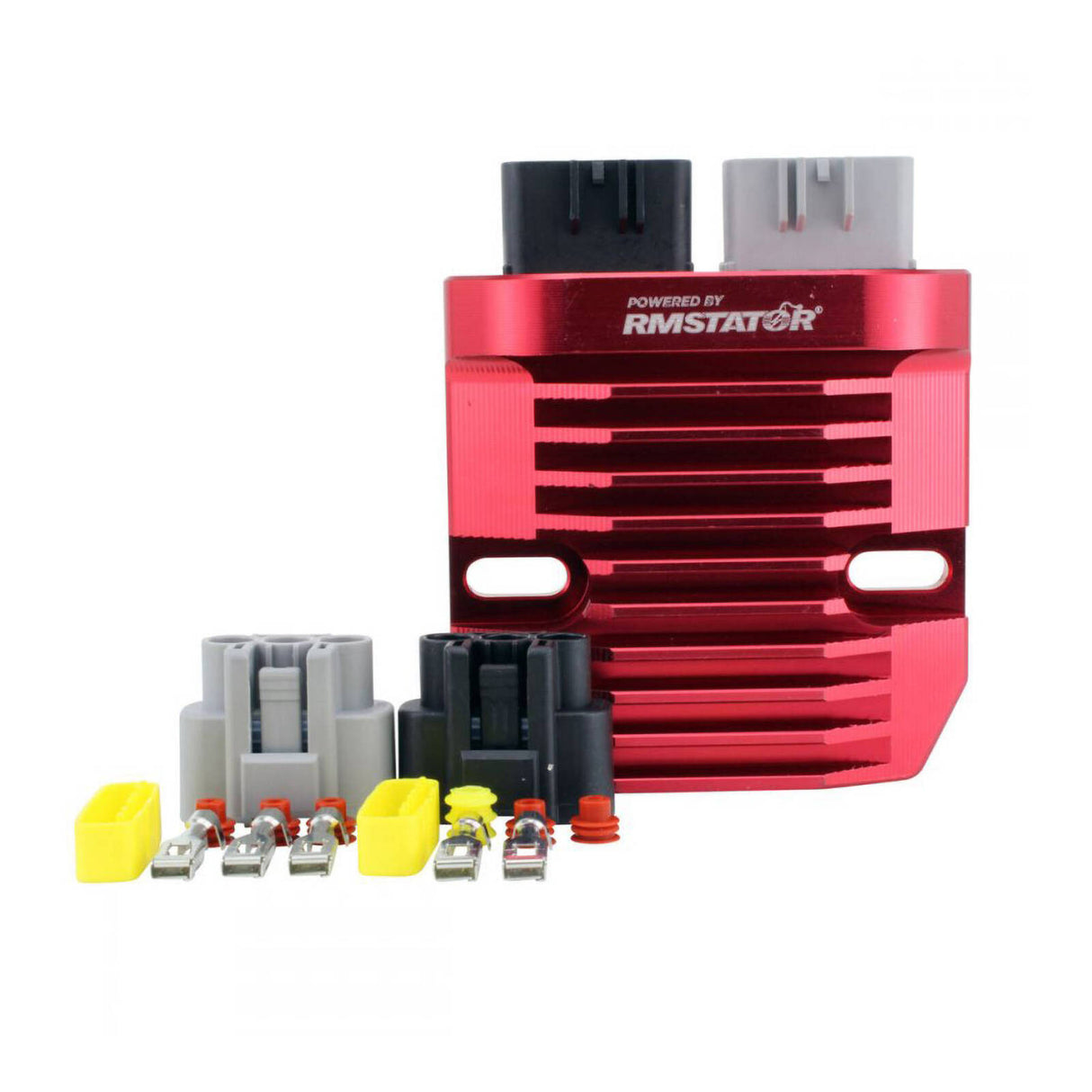

We include the opposite connector (main harness side) as we know these are often melted / corroded / defective. Defective connectors are a major cause for repetitive electrical issues.
Before installing the new CNC SERIES Voltage Regulator Rectifier:
- Check the AC output of the stator.
- Replace any burned or corroded connectors on stator and regulator rectifier.
- Check and repair any melted wiring.
- Use hi-temp dielectric grease on all connectors.
2006 2007 Can-Am Outlander 400 Installation Particularities
If you are using this regulator for 2006 2007 Can-Am Outlander 400 fitments, it will function perfectly fine. You will need to convert the vehicle wiring to The included mating connectors.
From the original stator connector, the outer 2 Yellow wires will be spliced into 1, the centre 2 Yellow wires will be spliced into 1, and the opposite outer 2 Yellow wires will be spliced into 1. These go into The Grey connector in any location; there is no order.
The Red Battery + goes to the inner terminal of the Black connector. The Brown Battery - (ground) wire goes to the outer terminal of the Black connector. The centre terminal of the black connector is not used.
You will need to relocate or build a mounting bracket for this regulator; it will not mount like the original regulator for this application.
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
Dimensions:
- Width: 103 mm.
- Length: 103 mm.
- Height: 28 mm.
- Fixation holes centre to centre: 80 mm.
Other specifications:
- Number of plugs: 2.
- Number of pins: 5.
- Minimum Charging Voltage: 14.5 V +/- 0.5 V.
- Maximum Charging Current: 50 A / 500 W.
- Open Circuit Voltage: < 15 V.
- Operation Temperature: -20°C to 85°C.
