RMSTATOR  |  SKU: RMS900104929

STATOR + MITSUBISHI FLYWHEEL ASSTD APR MODEL (RMS900-104929)

$939.90
Tax included Shipping calculated at checkout.


Delivery and Shipping

Products marked as "In Stock" are stored in our different distribution centers. These products will ship within 2-5 business days. Orders are not shipped or delivered on weekends or holidays.

Items are then sent by courier, we use Courierpost & Posthaste which will take 1-3 days to arrive depending on your location and the size of the parcel.

While we will do our best to ship from the distribution center closest to you, not all items will always be in stock in every location at all times.  In some cases we will split the order and ship each package out to you individually and in other cases we may need to consolidate the items in one location to ship out as one package.  We utilize our best judgment in an attempt to get the products to you as quickly as possible.

You will receive a Shipment Confirmation email once your order has shipped containing your tracking number(s). The tracking number will be active within 48hours.

Returns

Our returns policy lasts 21 days. If 21 days have gone by since your purchase, unfortunately we can’t offer you a refund or exchange.

To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging.

Additional non-returnable items:

  • Gift cards
  •  Downloadable software products
  •  Any Electrical products
  •  Some health and personal care items
  •  Any product from the "Second Life" category or any product in the category "Used" by NZBike Tour and Rental , NZBike  Accessories or NZBike Workshop

To complete your return, we require a receipt or proof of purchase.
Please do not send your purchase back to the manufacturer.

There are certain situations where only partial refunds are granted (if applicable)
- Any item not in its original condition, is damaged or missing parts for reasons not due to our error

Description

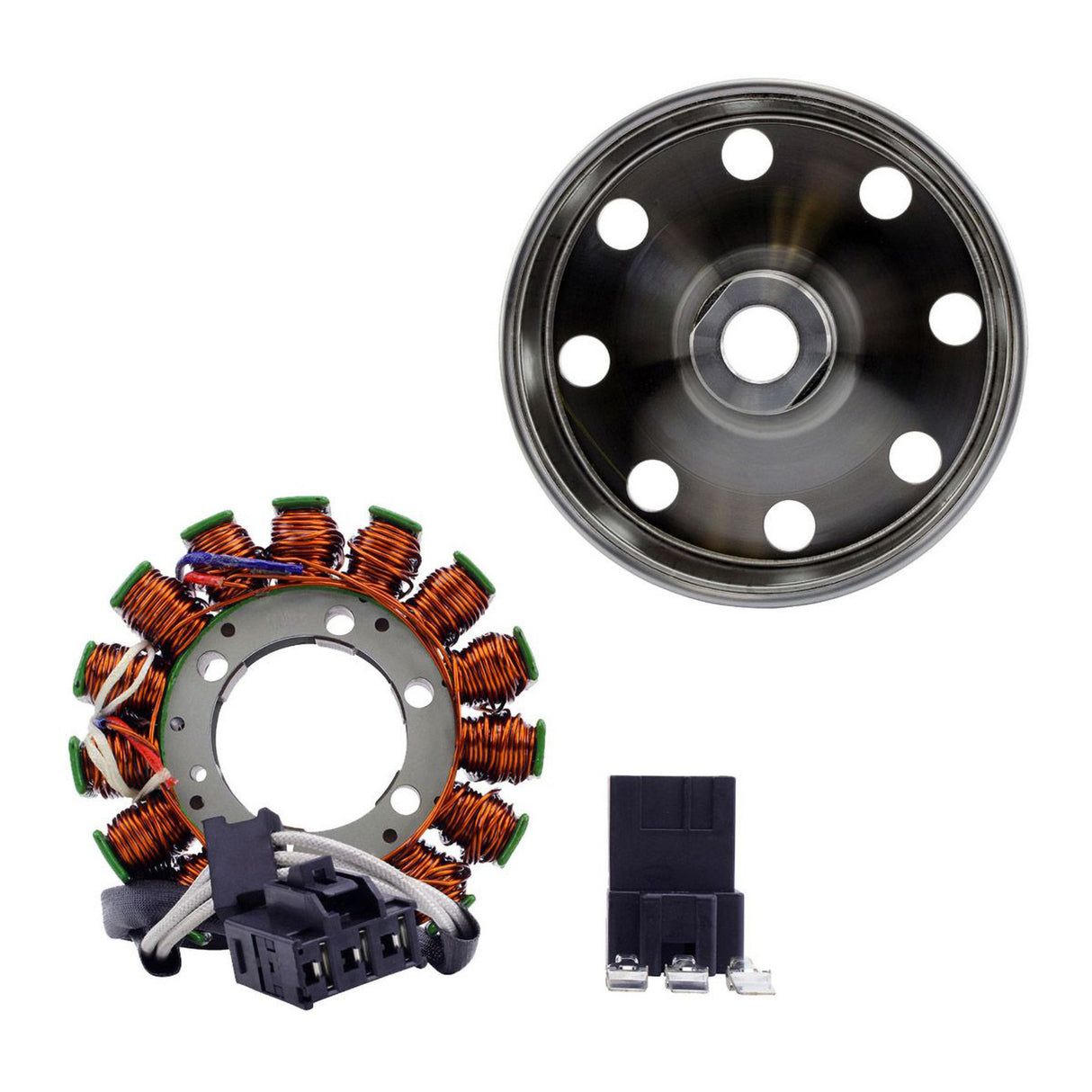

Brand New kit Flywheel + Generator Stator

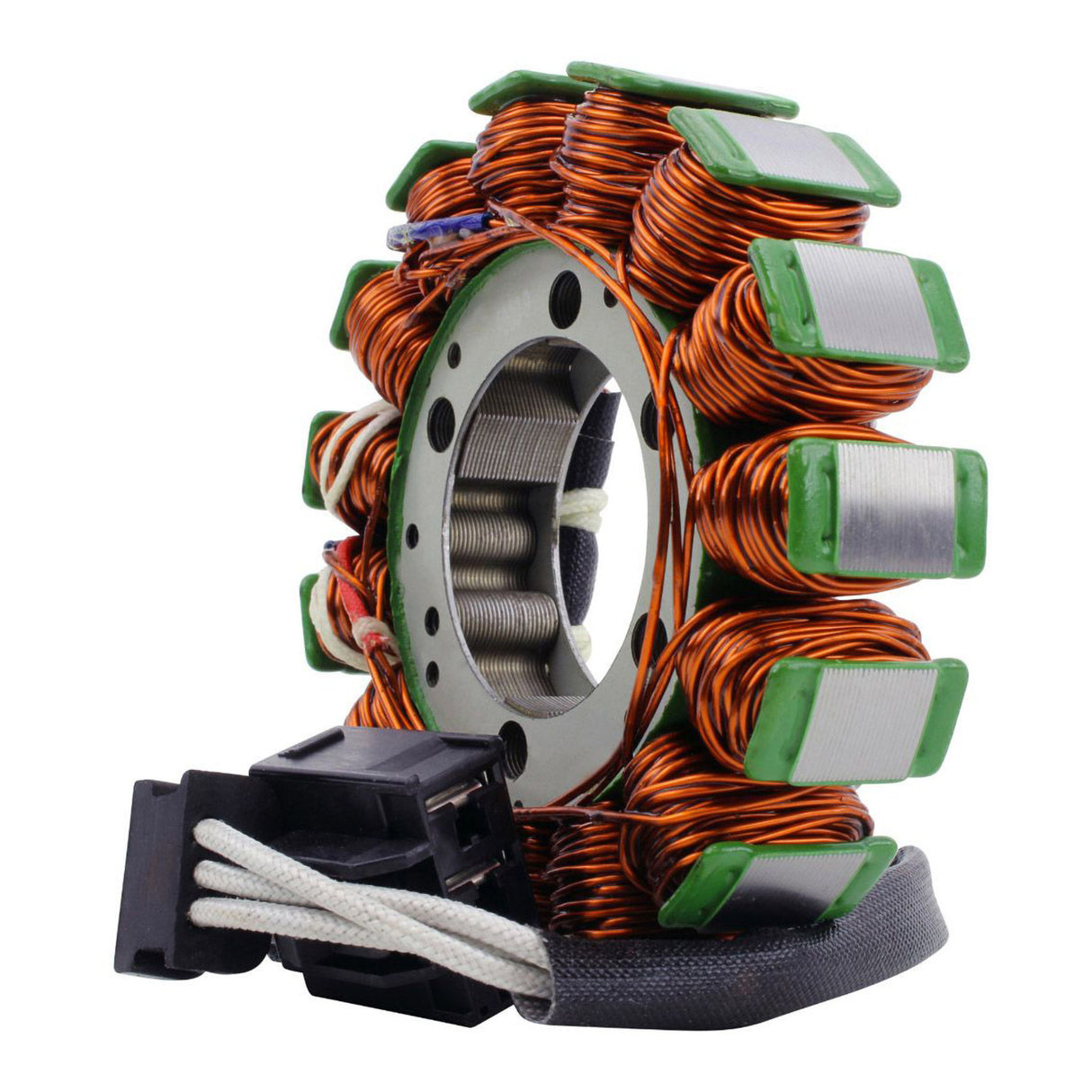

Brand new aftermarket stator

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Connector included
  • Rubber grommet included
  • All shipped products are tested

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

Generator Stator Dimensions:

  • Interior diameter: 42mm
  • Exterior diameter: 105mm
  • Thickness: 17mm
  • Length of wires stator to grommet: 90mm
  • Length of wires grommet to plug: 300mm

Other specifications:

  • Number of wires: 3
  • Number of plugs: 1
  • Number of pins: 3

Wire to wire resistance:

  • Alternator: Between each White = 0.4 ohms +/-20%

Flywheel Dimensions:

  • Exterior Diameter: 115mm
  • Interior Diameter: 108mm
  • Interior Diameter Center Housing: 16mm
  • Exterior Diameter Center Housing: 24mm
  • Thickness (exterior): 30mm
  • Thickness (interior): 33mm

Please Note: This kit is compatible with RSV4 that have an engine number equal to or lower than 3413, otherwise you will need RMS900-103848. On rare occasion, this kit will work with Tuono V4. This kit includes a MITSUBISHI flywheel.

Please Note:

  1. All electrical components must be fitted by a qualified technician.
  2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
  3. The absence of either of points 1 or 2 above, will void any warranty.
