STATOR KIT + MOSFET REGULATOR (RMS900-106211)
Description
Description

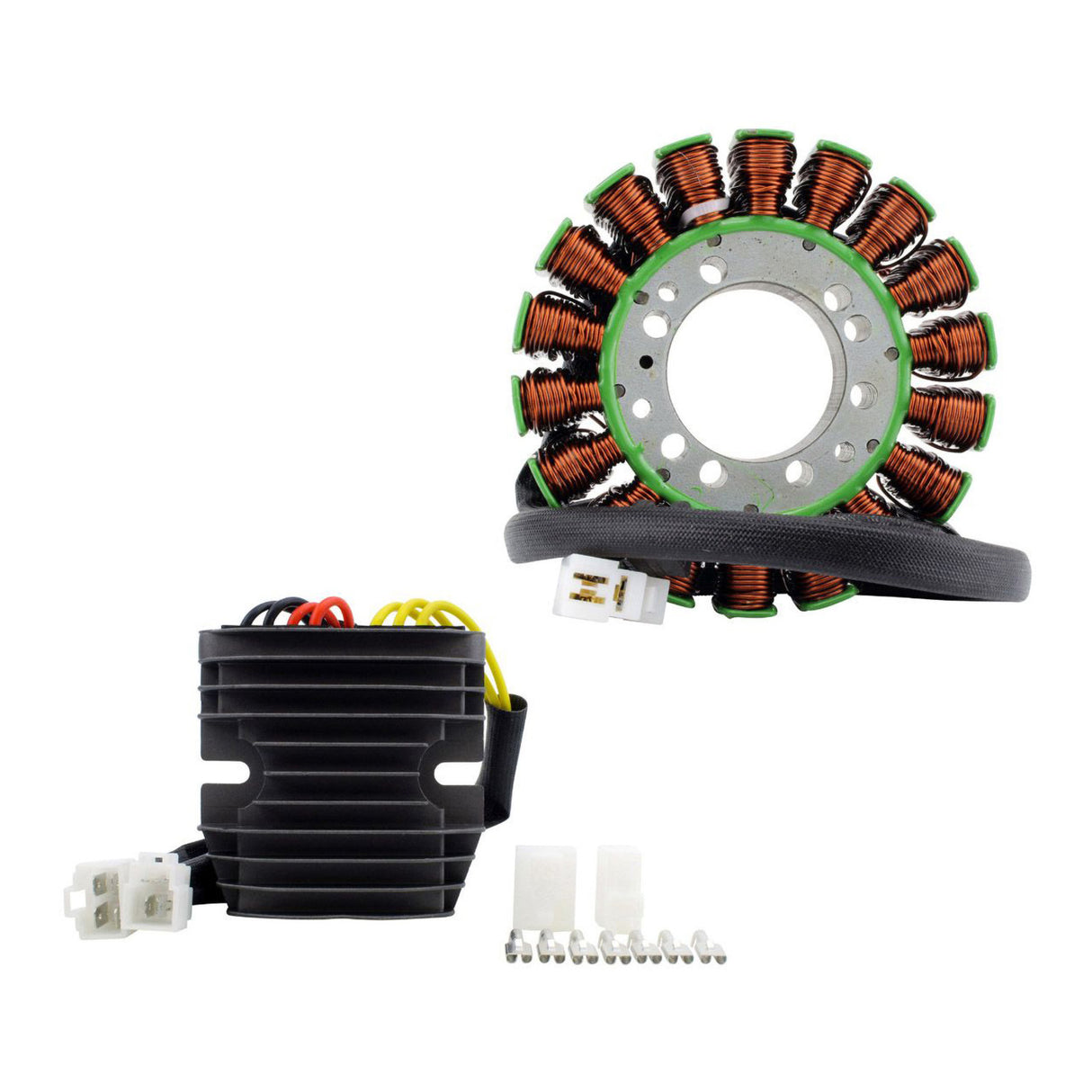

Brand new aftermarket stator and MOSFET regulator kit.
- Direct replacement for the original unit.
- Plug-and-play, direct fit and easy installation.
- All products are tested before shipping.
All item pictures are accurate. If in doubt, compare the item with the original part.

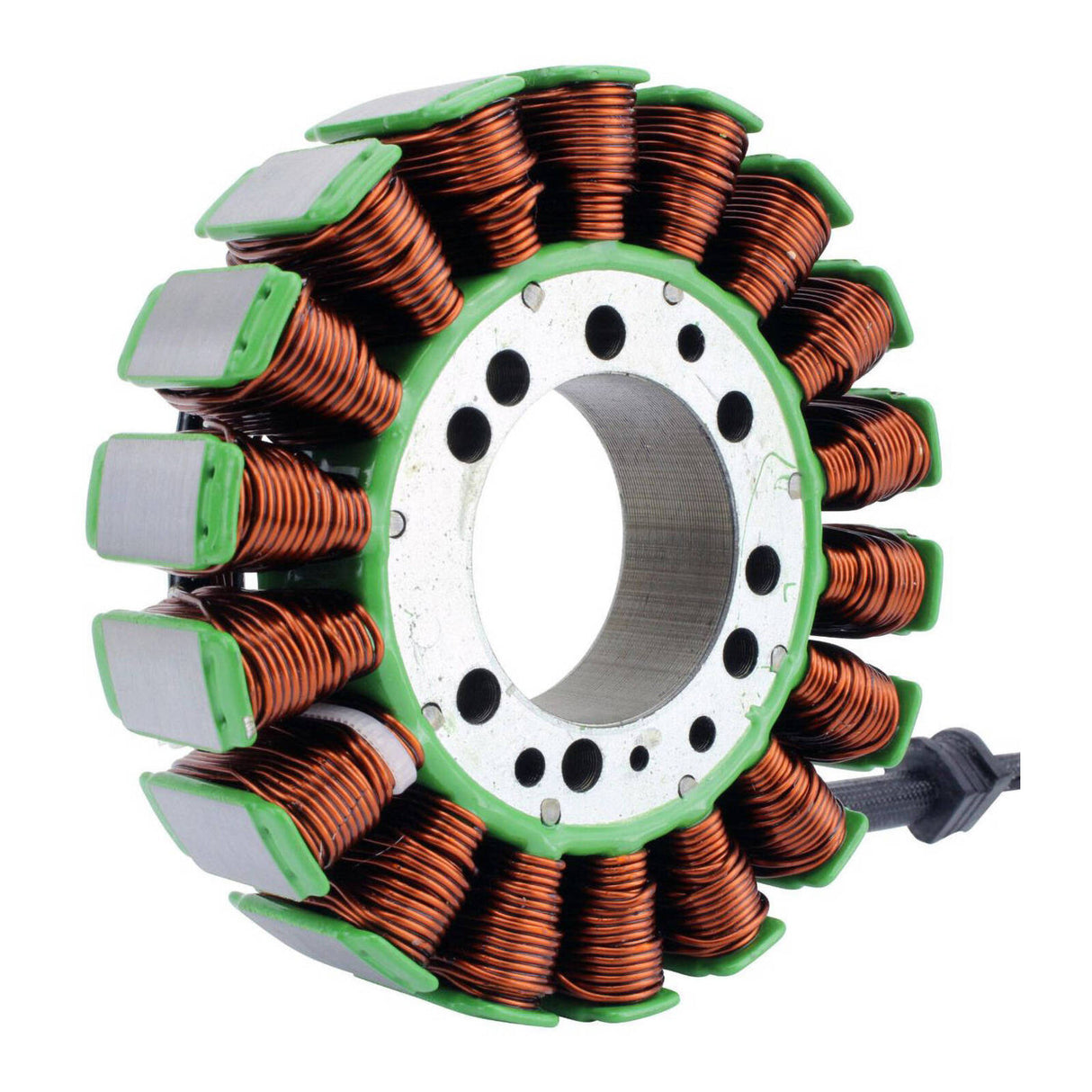

Stator Features:
- Made with high-grade lamination materials.
- High-grade copper winding, resistant to temperatures up to 200°C.
- Connectors included.
- Rubber grommet included.

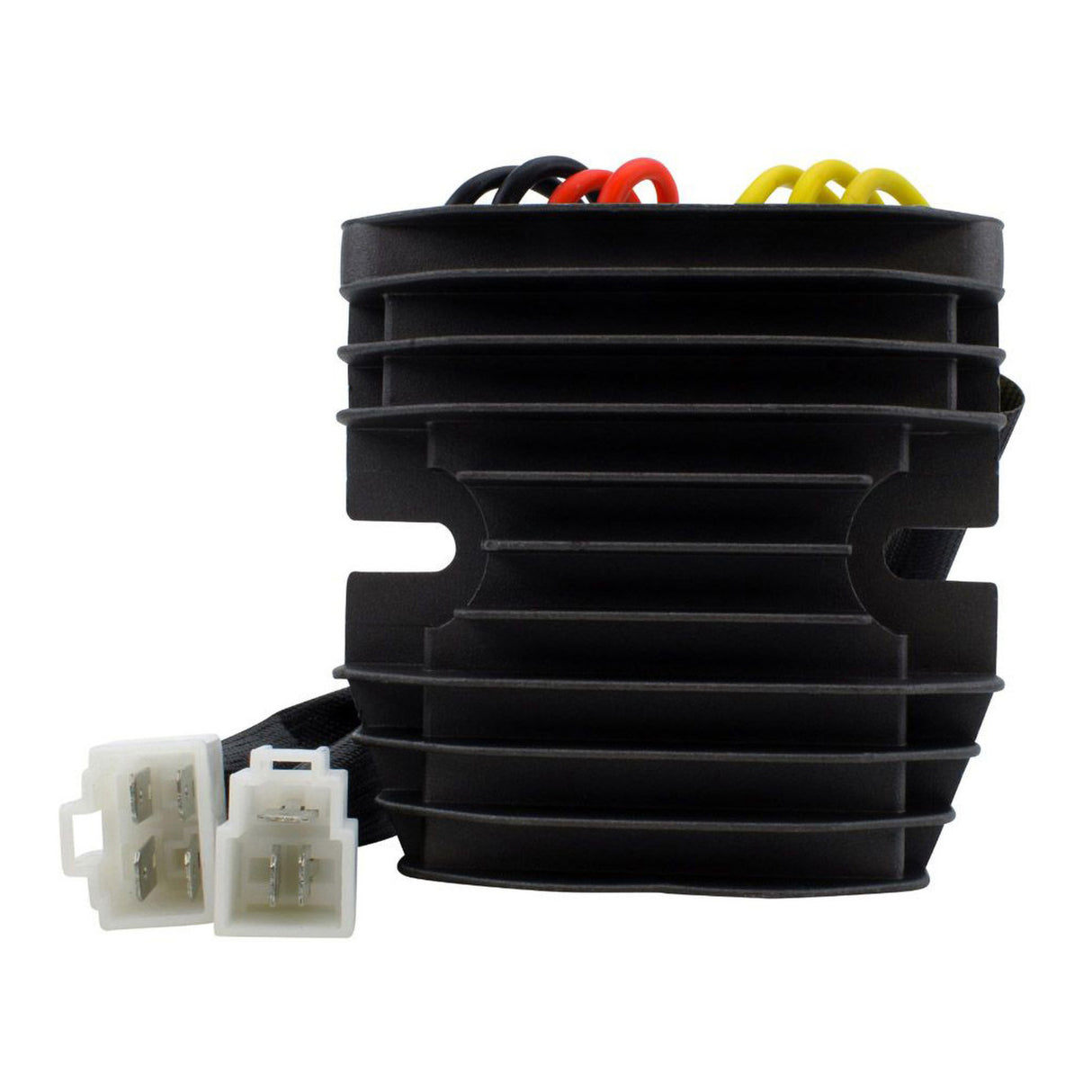

Brand New MOSFET Voltage Regulator Rectifier
Stop burning your regulator rectifier. Upgrade or replace your voltage regulator with advanced MOSFET technology. It runs cooler than conventional OEM diode-style regulators. It also features overheat protection: instead of burning out, it temporarily switches off to cool down.
- Quality exceeds OEM equipment.
- Improved heat sink and charging capabilities.
- Higher-grade electrical components.
An opposite connector for the main harness side is also included, as these connectors are often melted, corroded or defective and can be a major cause of recurring electrical issues.
Why Use MOSFET Enhanced Technology?
- Runs cooler: Runs much cooler than a traditional shunt voltage regulator rectifier.
- Saves fuel: Less load on the stator means less work and potentially lower fuel consumption.
- Regulated energy: Provides steadier, smoother power to the battery.
- Extended battery life: Helps extend battery life and cold-cranking capacity.
- More engine power: Removes stator load, resulting in more engine power.
- Optimised power: Optimises power delivery by switching the stator coils on or off.
Enhanced Technology:
This advanced design lowers operating temperatures for extended longevity and better performance than the OEM part.
Before Installing the New Stator:
- Check the AC output of the stator.
- Replace any burned or corroded connectors on the stator and regulator rectifier.
- Check and repair any melted wiring.
- Use high-temperature dielectric grease on all connectors.
The stator may use a different wire colour code from the original. All wires are installed in the correct order; do not change any wiring configurations. This stator is designed as a direct plug-in replacement and should be used as such. Always use locking compound when bolting the stator in place. If the stator includes a pickup coil, ensure the air gap is correct during installation. We recommend setting it as close as possible, but no less than 0.010 inches.
Before Installing the New MOSFET Voltage Regulator Rectifier:
- Check the AC output of the stator.
- Replace any burned or corroded connectors on the stator and regulator rectifier.
- Check and repair any melted wiring.
- Use high-temperature dielectric grease on all connectors.
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
Stator Dimensions:
- Interior diameter: 42 mm
- Exterior diameter: 115 mm
- Thickness: 22 mm
- Length of wires from stator to grommet: 110 mm
- Length of wires from grommet to plug: 600 mm
Stator Specifications:
- Number of wires: 3
- Number of plugs: 1
- Number of pins: 3
- Number of poles: 18
Wire-to-Wire Resistance:
- Alternator 3P: Between each Black = 0.5 ohms ±20%
Regulator Dimensions:
- Width: 90 mm
- Length: 94 mm
- Height: 30 mm
- Wire lengths: 320 mm and 235 mm
- Fixing hole centres: 75 mm
Regulator Specifications:
- Number of plugs: 2
- Number of pins: 7
- Number of wires: 7
- Minimum charging voltage: 14.5 V ±0.5 V
- Maximum charging current: 50 A / 500 W
- Open-circuit voltage: <15 V
- Operating temperature: -20°C to 85°C
