Description
Description
RMSTATOR SPLYT Technology provides a reliable solution to common charging system failures. Featured by Dirt Trax Television, this system uses a dual-output stator with two completely separate stator windings. The power generated is split between two voltage regulators, allowing each regulator to handle only half the original load. This reduces operating temperatures and improves reliability.
Series Voltage Regulation
Unlike traditional regulators that shunt excess power to ground, SERIES regulators protect the battery from high voltage by disconnecting the stator coils from the regulator and preventing current from passing through. This reduces heat generation and operating temperatures.
Ultimate Reliability
Stock charging systems often operate voltage regulators within 5% of their maximum capacity, creating heat and stress that can lead to failure. With the RMSTATOR SPLYT system, both SERIES regulators operate with 40% overhead for longer service life and stable output.
Better Design
Unlike the original OEM stator, which uses a single three-phase winding, the SPLYT stator has two completely separate three-phase windings. Each winding produces half the power of the stock stator, reducing the temperature of each individual coil.
More Available Power
For vehicles running additional accessories such as lighting, stereos or winches, the SPLYT kit is available with an upgraded flywheel that increases power output from 650 W to 900 W.
Easy Installation
All components feature a plug-and-play design like the original OEM parts, making installation straightforward without requiring special tools or technical knowledge.
Relocation Harnesses Included
The included relocation wiring harnesses allow both regulators to be mounted elsewhere on the vehicle for improved airflow and easier access.

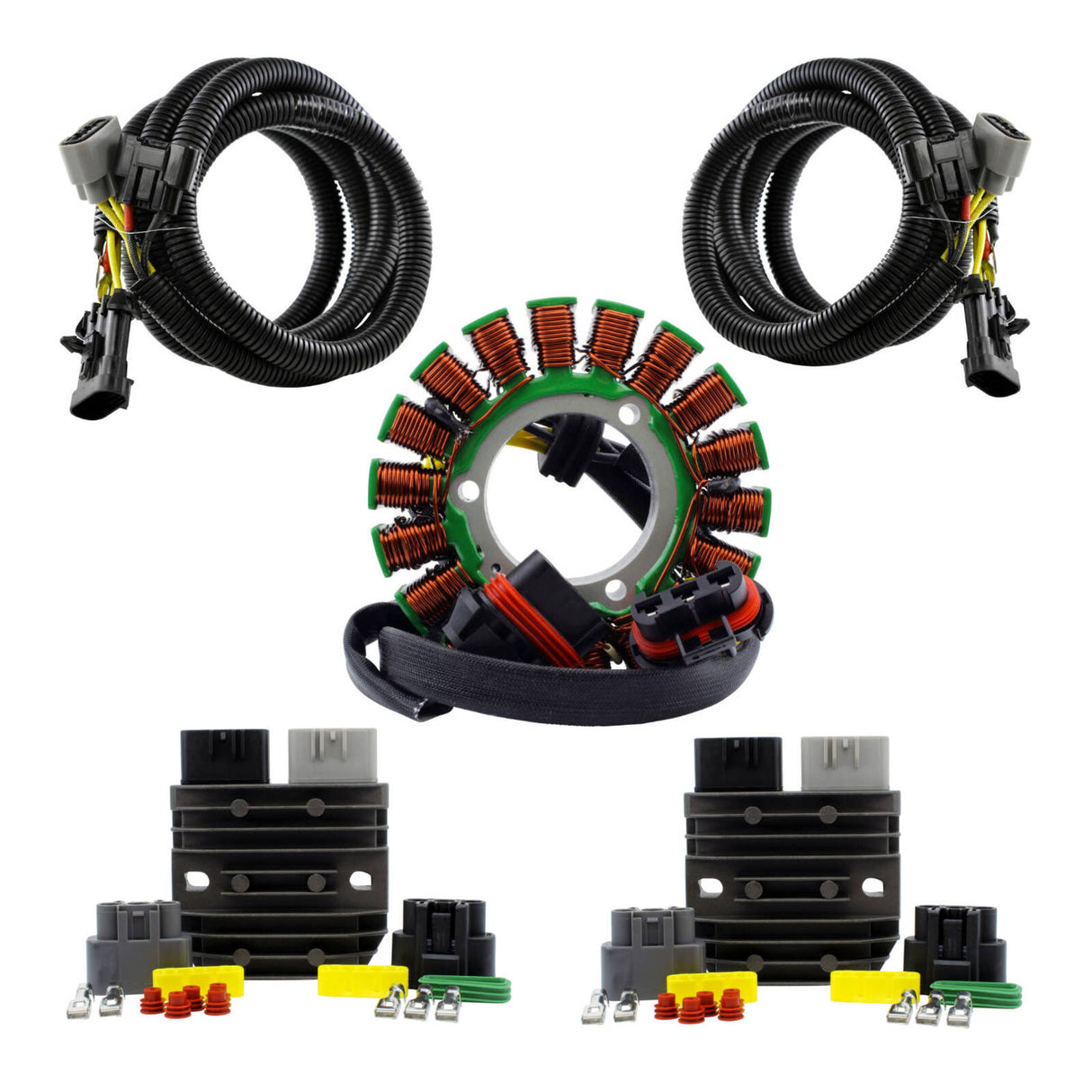

This Kit Includes:
- Dual-output stator
- Two SERIES voltage regulators
- Two automotive-grade relocation wiring harnesses with OEM-quality heavy-duty connectors
- Complete voltage regulator relocation instructions
Resolve Polaris RZR and Sportsman charging system issues with RMSTATOR SPLYT Technology.
Important Notice: This kit includes two wiring harnesses in accordance with Polaris recall # Z-16-01-C (OEM # 2206620, 2206367 and 2206473). Relocating both regulators is strongly recommended to prevent premature wear caused by mud, dust and rocks.
Before Installing the New Stator
- Check the AC output of the stator.
- Replace any burned or corroded connectors on the stator and regulator rectifier.
- Check and repair any melted wiring.
- Apply high-temperature dielectric grease to all connectors.
The stator may use a different wire colour code from the original part. All wires are installed in the correct order; do not change the wiring configuration. This stator is designed as a direct plug-in replacement. Always use thread-locking compound when securing the stator bolts. If the stator includes a pickup coil, check the air gap during installation. Adjust it as close as possible, but no less than 0.010 inches.
Before Installing the New MOSFET Voltage Regulator Rectifier
- Check the AC output of the stator.
- Replace any burned or corroded connectors on the stator and regulator rectifier.
- Check and repair any melted wiring.
- Apply high-temperature dielectric grease to all connectors.
Relocation Harness
- Plug-and-play, direct fit.
- Apply high-temperature dielectric grease to all connectors.
Warning
Risk of electric shock. Disconnect the battery before servicing. Installation should be carried out by a qualified technician to avoid malfunction.

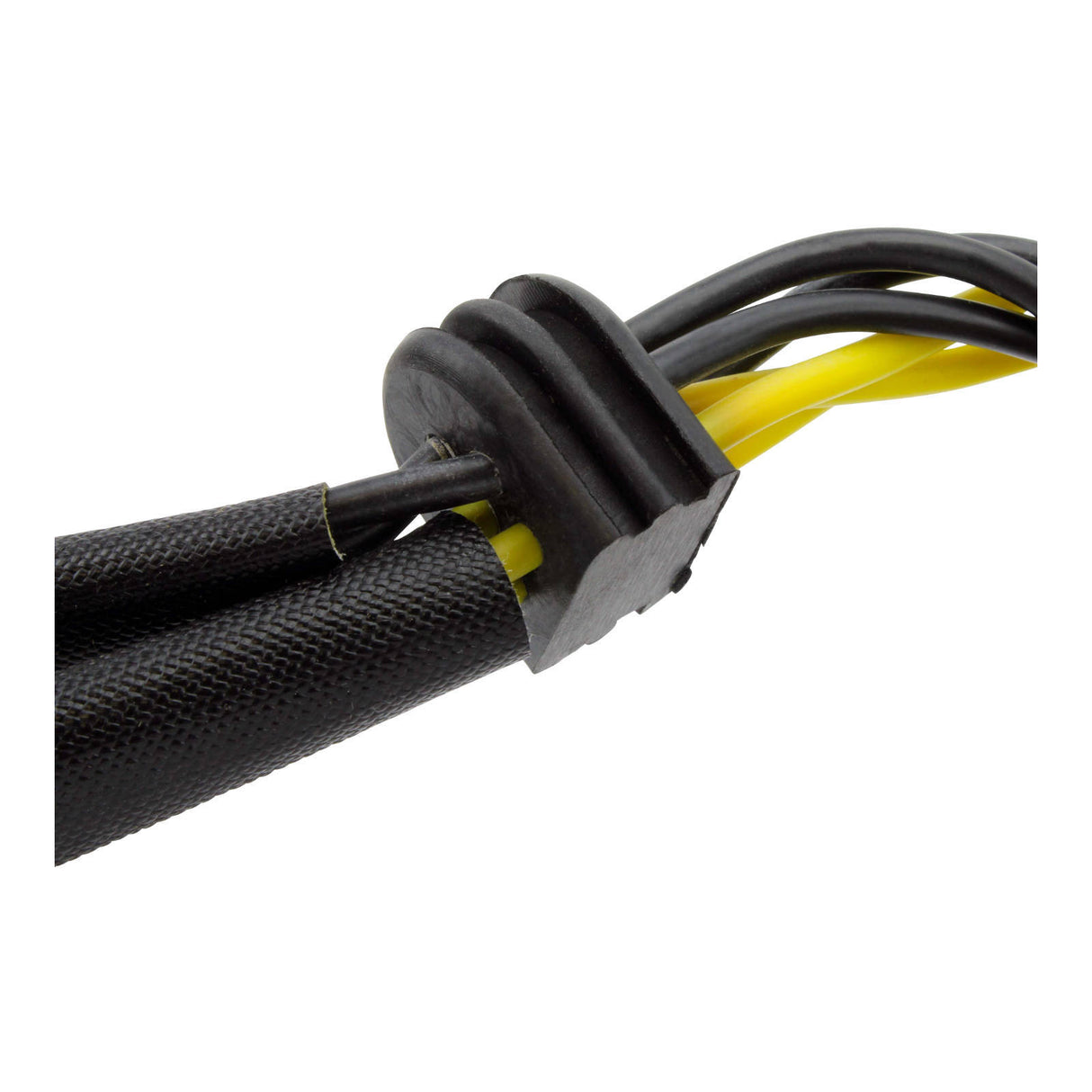

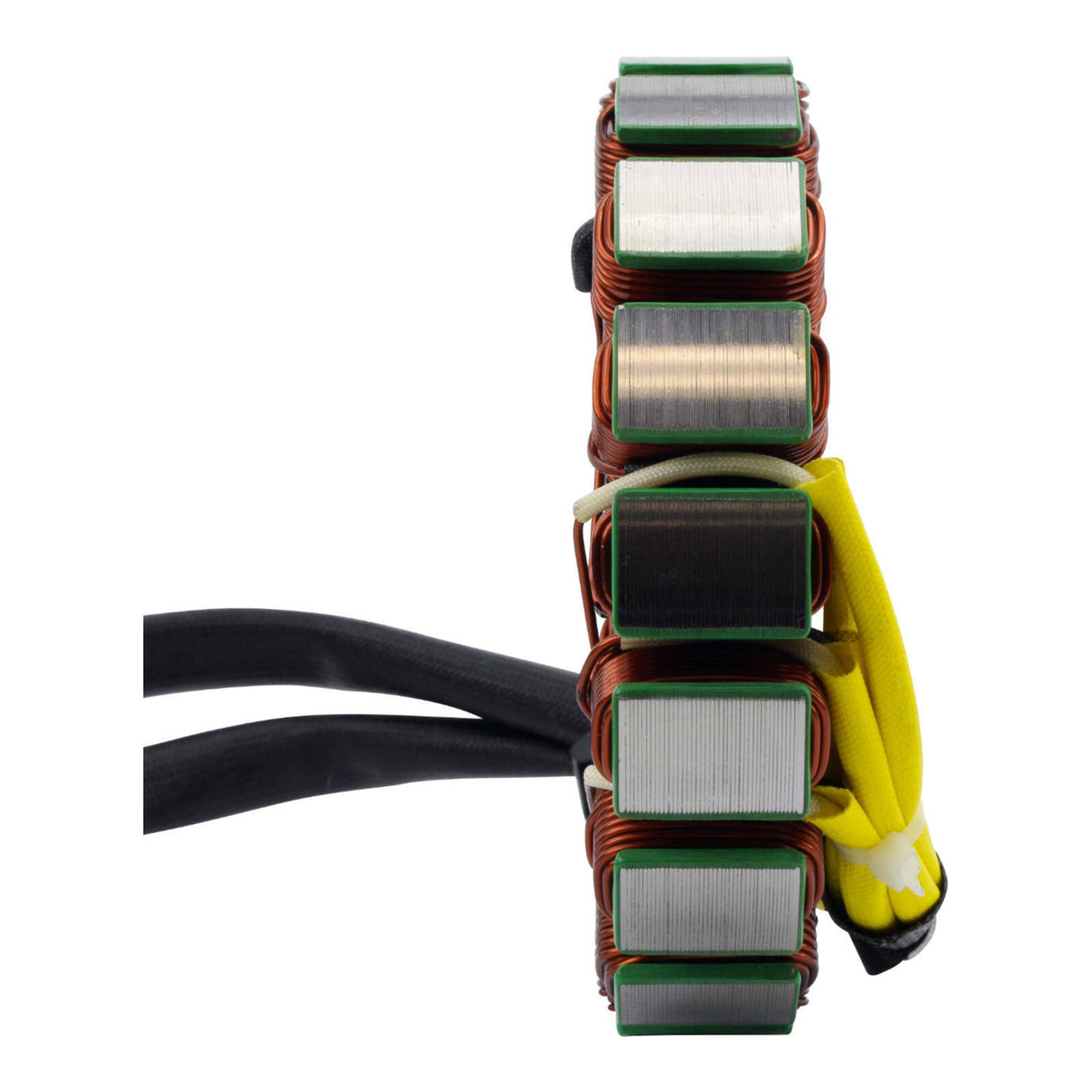

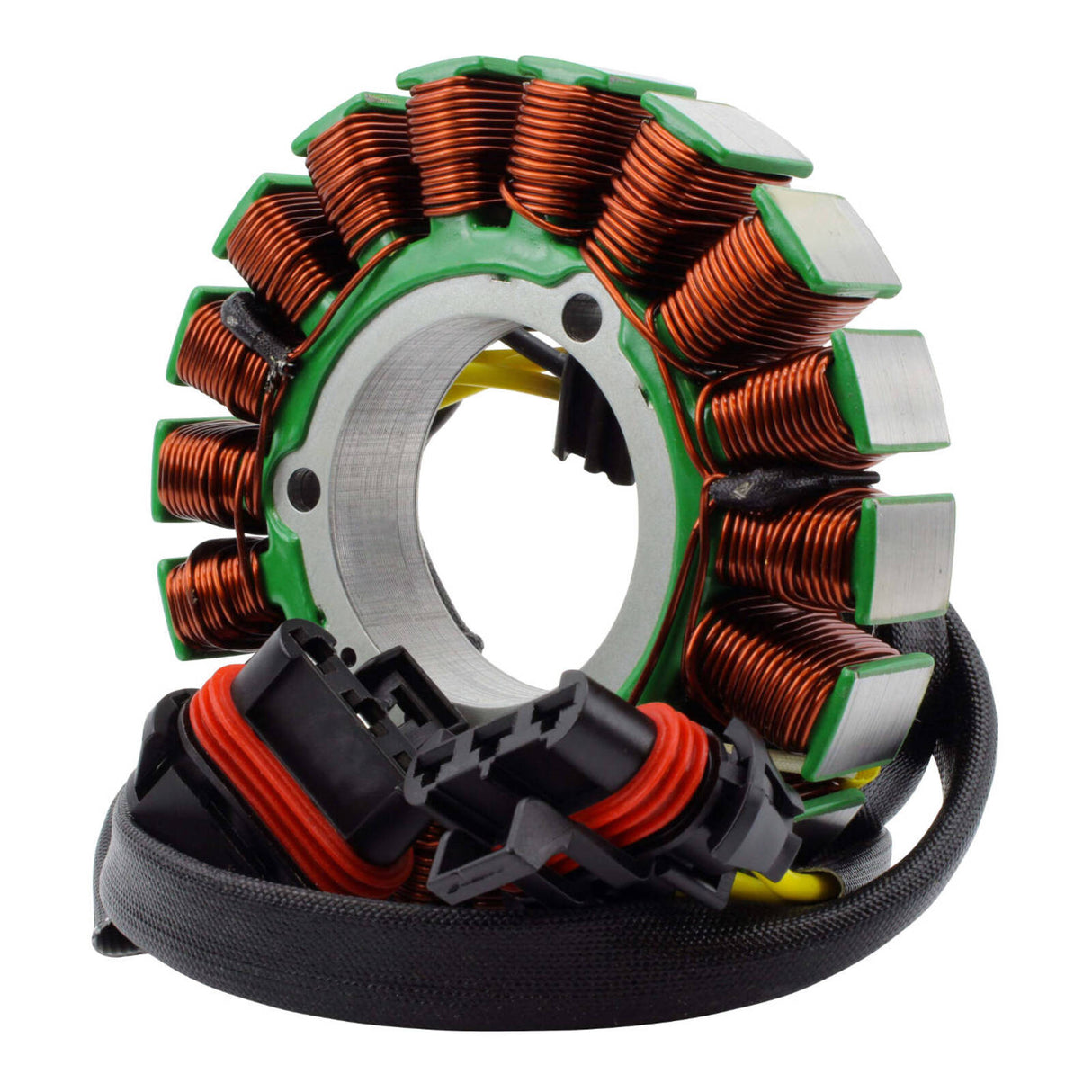

Dual Stator Dimensions
- Interior diameter: 53 mm
- Exterior diameter: 125 mm
- Thickness: 26 mm
- Stator-to-grommet wire length: 125 mm
- Grommet-to-plug wire lengths: 290 mm and 550 mm
Other Specifications
- Number of wires: 6
- Number of plugs: 2
- Number of pins: 6
- Number of poles: 18
- Alternator resistance: Yellow/black to yellow/black = 0.5 ohms ±20%

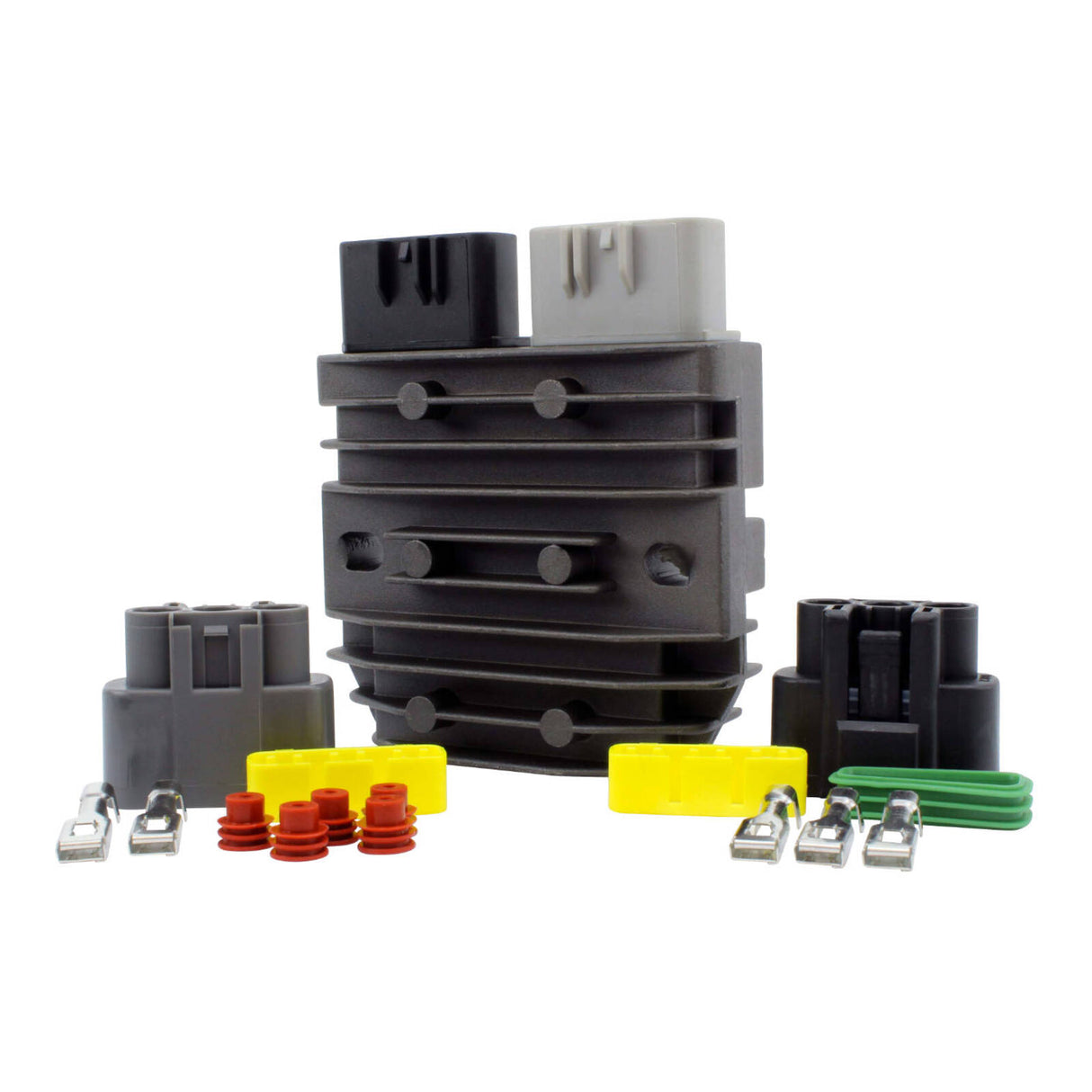

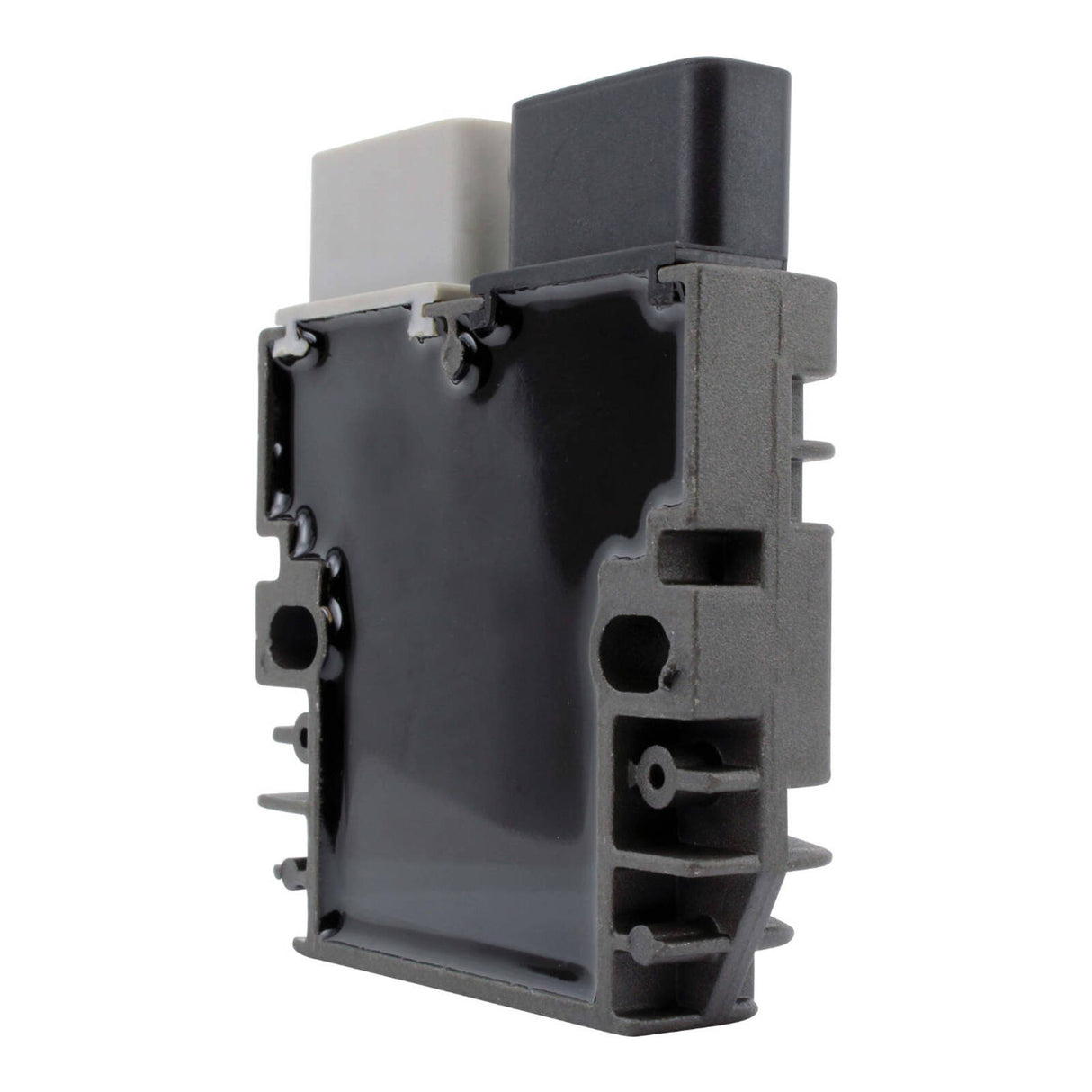

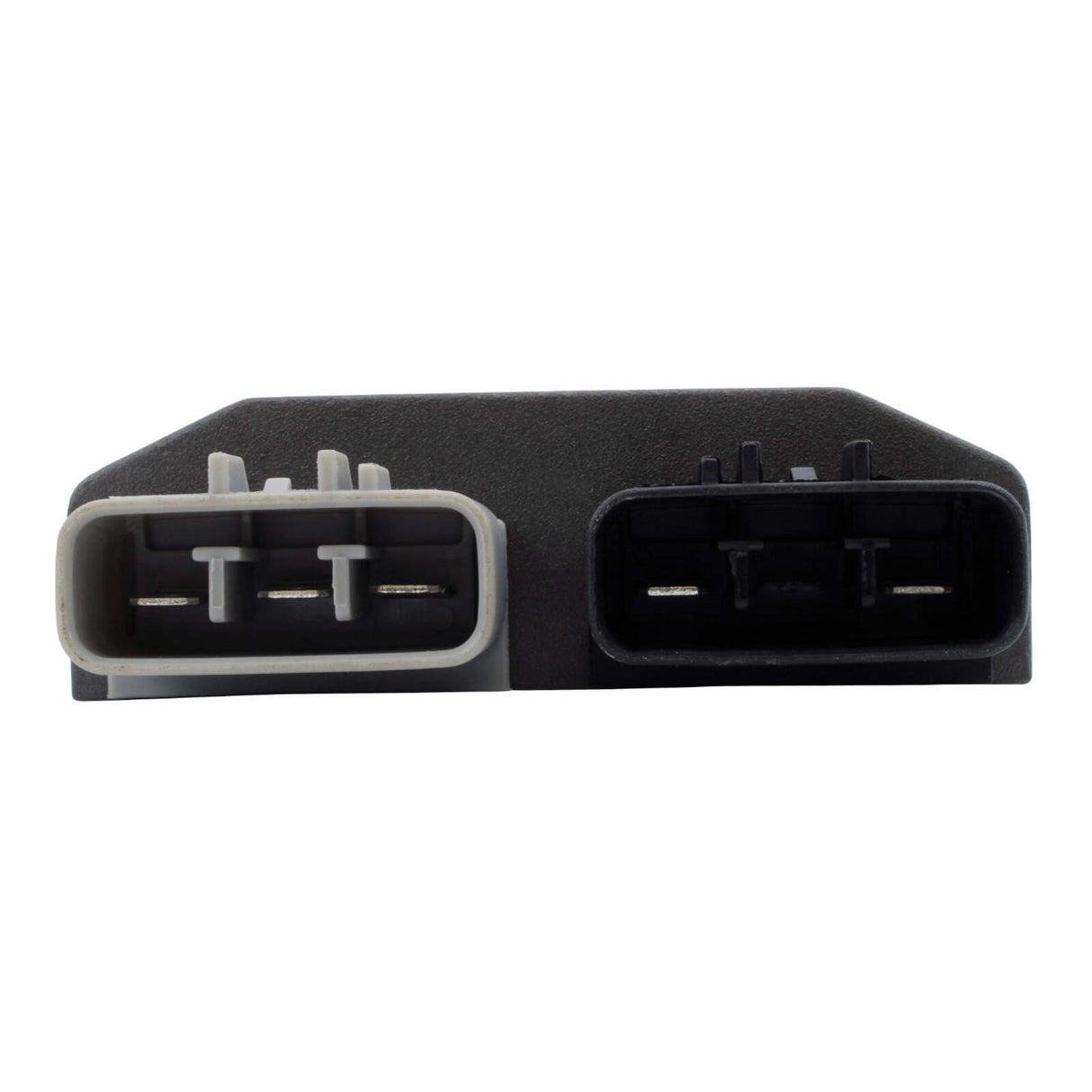

Regulator Dimensions
- Width: 84 mm
- Length: 90 mm
- Height: 32 mm
- Mounting hole centre-to-centre distance: 69 mm
Other Specifications
- Number of plugs: 2
- Number of pins: 5
- Minimum charging voltage: 14.5 V ±0.5 V
- Maximum charging current: 50 A / 500 W
- Open-circuit voltage: < 15 V
- Operating temperature: -20°C to 85°C

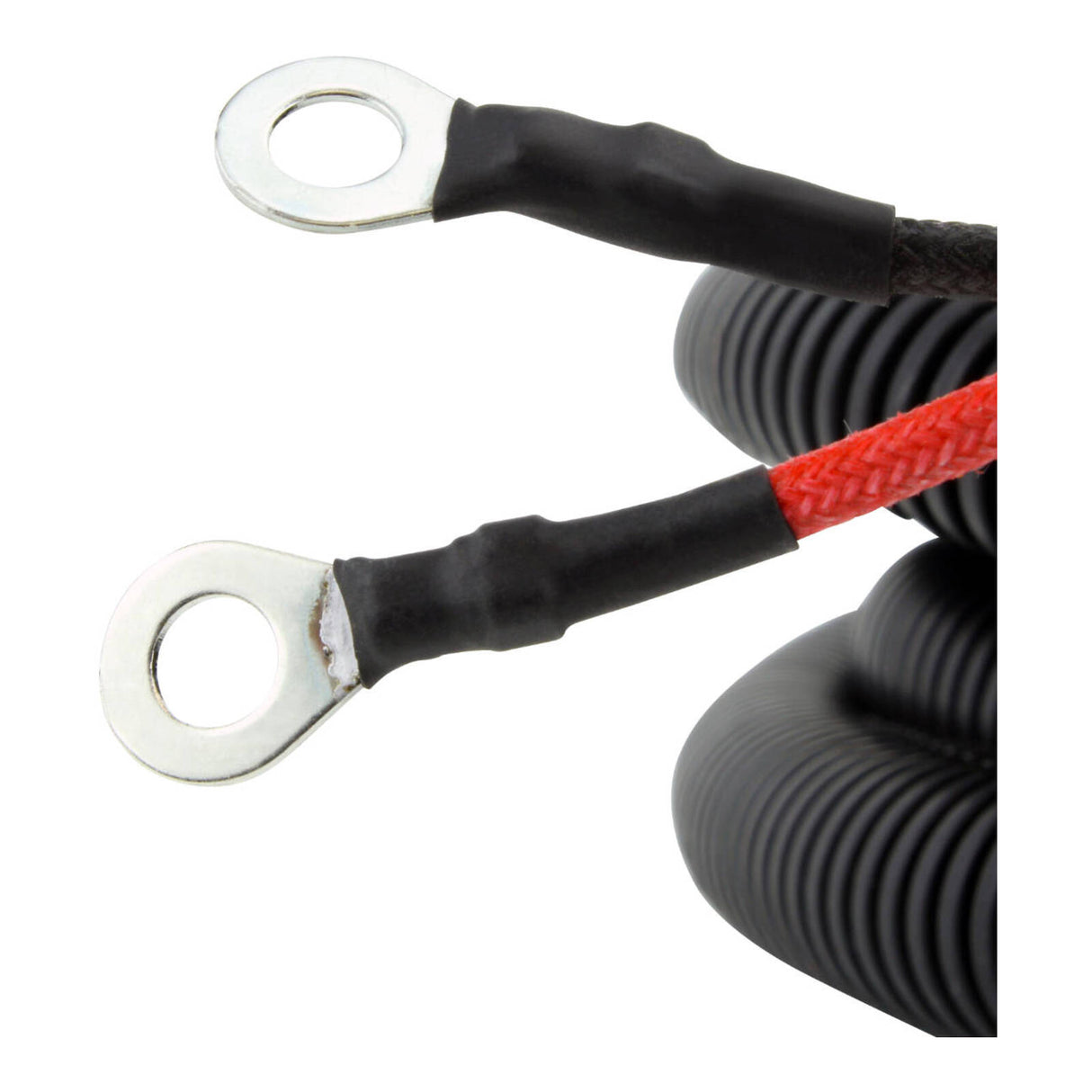

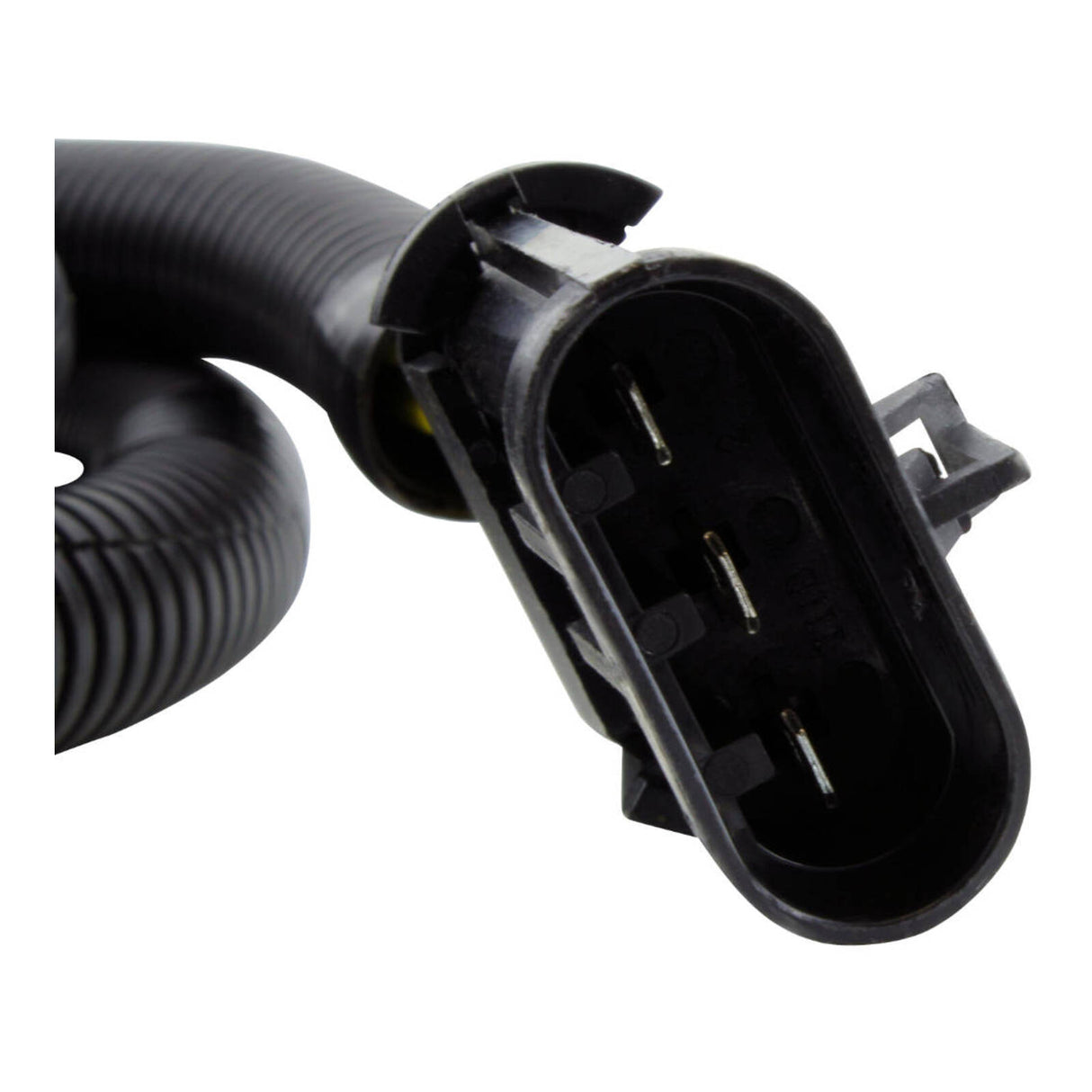

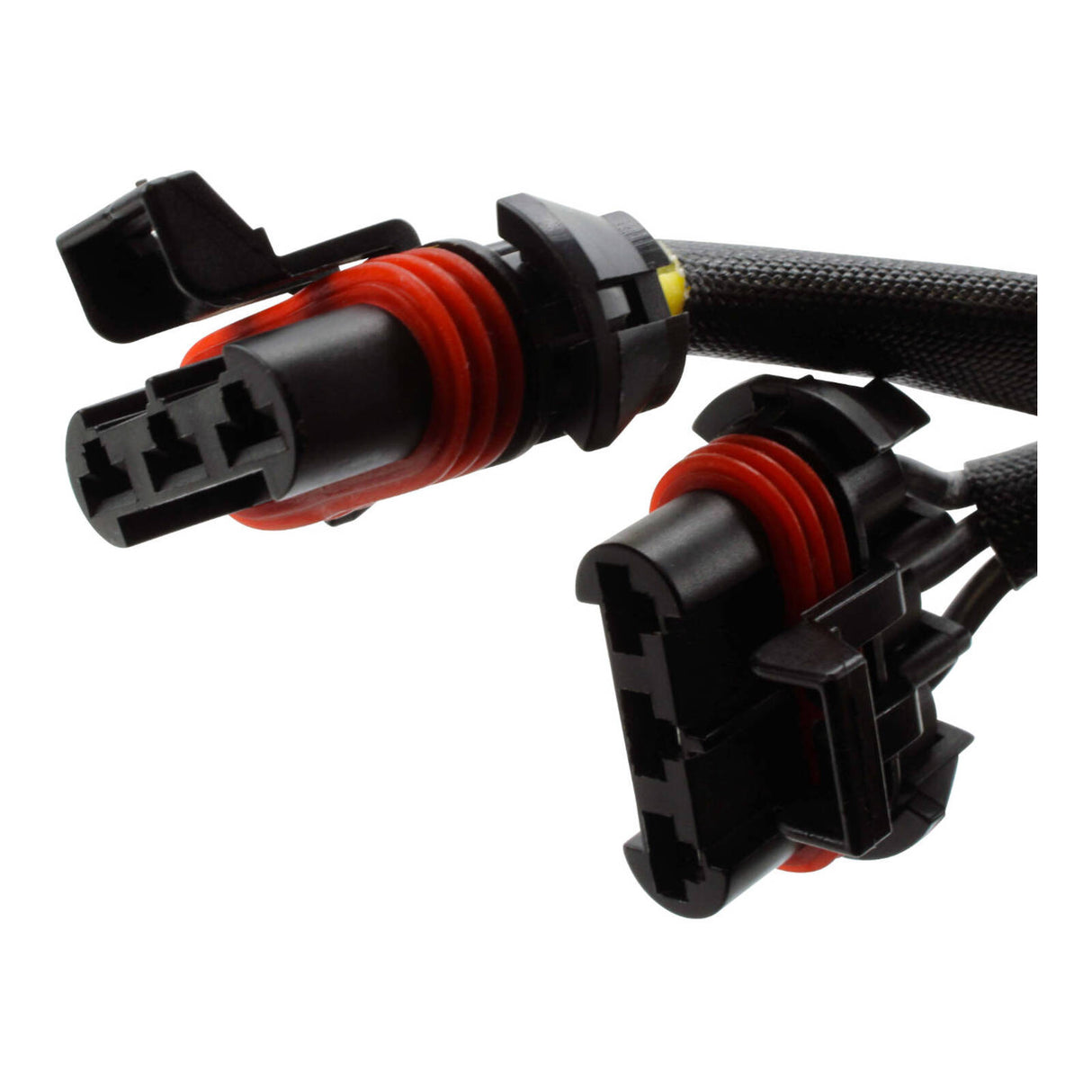

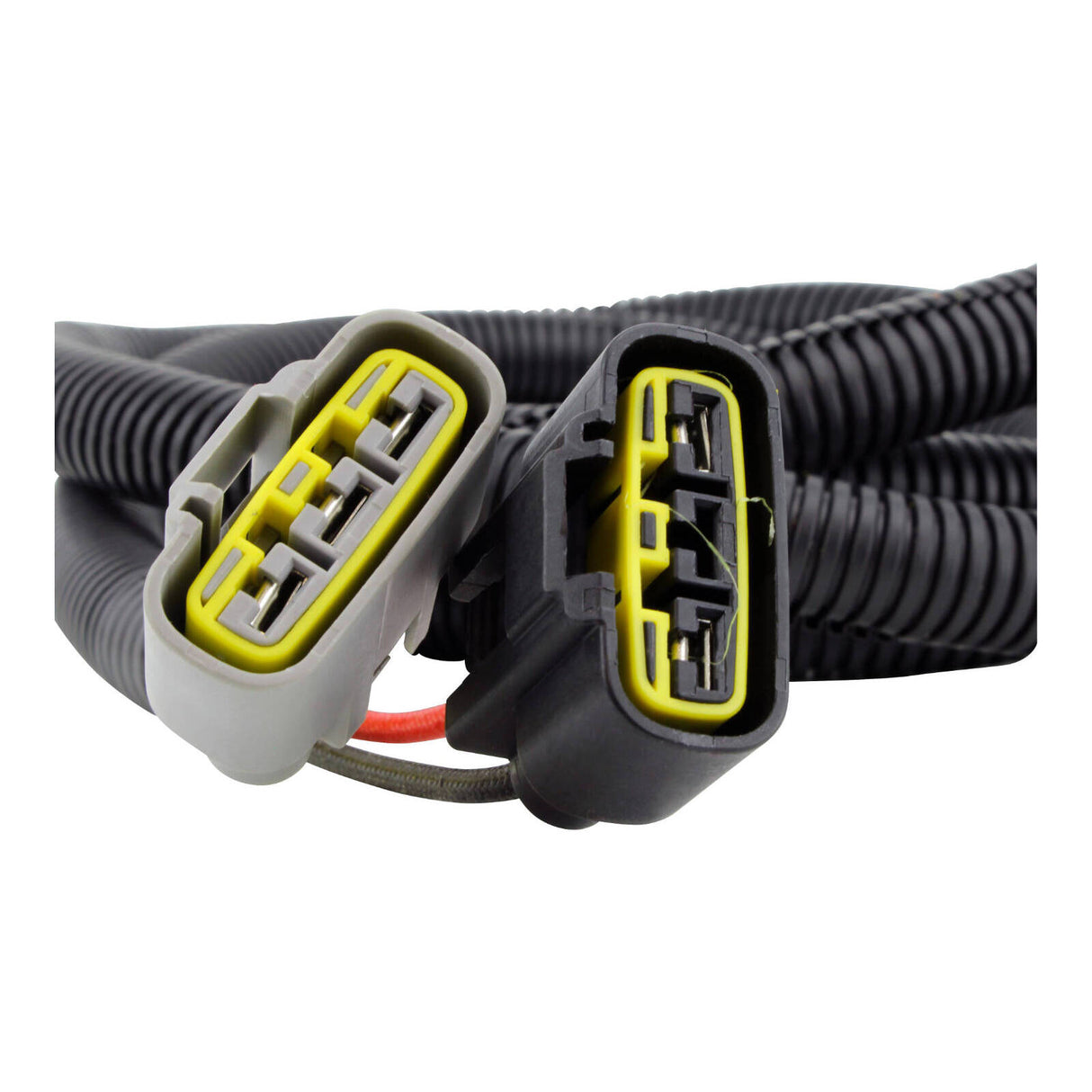

Relocation Harness Dimensions
- Wire length: 2400 mm
- Number of yellow wires: 3
- Number of red wires: 1
- Number of black wires: 1
- Number of plugs: 2
