RMSTATOR  |  SKU: RMS900106906

140W CONV KIT AC TO DC YAM YFZ450 2004-2009 (RMS900-106906)

$809.90
Tax included Shipping calculated at checkout.


Delivery and Shipping

Products marked as "In Stock" are stored in our different distribution centers. These products will ship within 2-5 business days. Orders are not shipped or delivered on weekends or holidays.

Items are then sent by courier, we use Courierpost & Posthaste which will take 1-3 days to arrive depending on your location and the size of the parcel.

While we will do our best to ship from the distribution center closest to you, not all items will always be in stock in every location at all times.  In some cases we will split the order and ship each package out to you individually and in other cases we may need to consolidate the items in one location to ship out as one package.  We utilize our best judgment in an attempt to get the products to you as quickly as possible.

You will receive a Shipment Confirmation email once your order has shipped containing your tracking number(s). The tracking number will be active within 48hours.

Returns

Our returns policy lasts 21 days. If 21 days have gone by since your purchase, unfortunately we can’t offer you a refund or exchange.

To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging.

Additional non-returnable items:

  • Gift cards
  •  Downloadable software products
  •  Any Electrical products
  •  Some health and personal care items
  •  Any product from the "Second Life" category or any product in the category "Used" by NZBike Tour and Rental , NZBike  Accessories or NZBike Workshop

To complete your return, we require a receipt or proof of purchase.
Please do not send your purchase back to the manufacturer.

There are certain situations where only partial refunds are granted (if applicable)
- Any item not in its original condition, is damaged or missing parts for reasons not due to our error

Description

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

Brand new HO Stator + Heavy Duty Regulator Rectifier + High-Performance CDI Box ECM Kit

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • All shipped products are tested

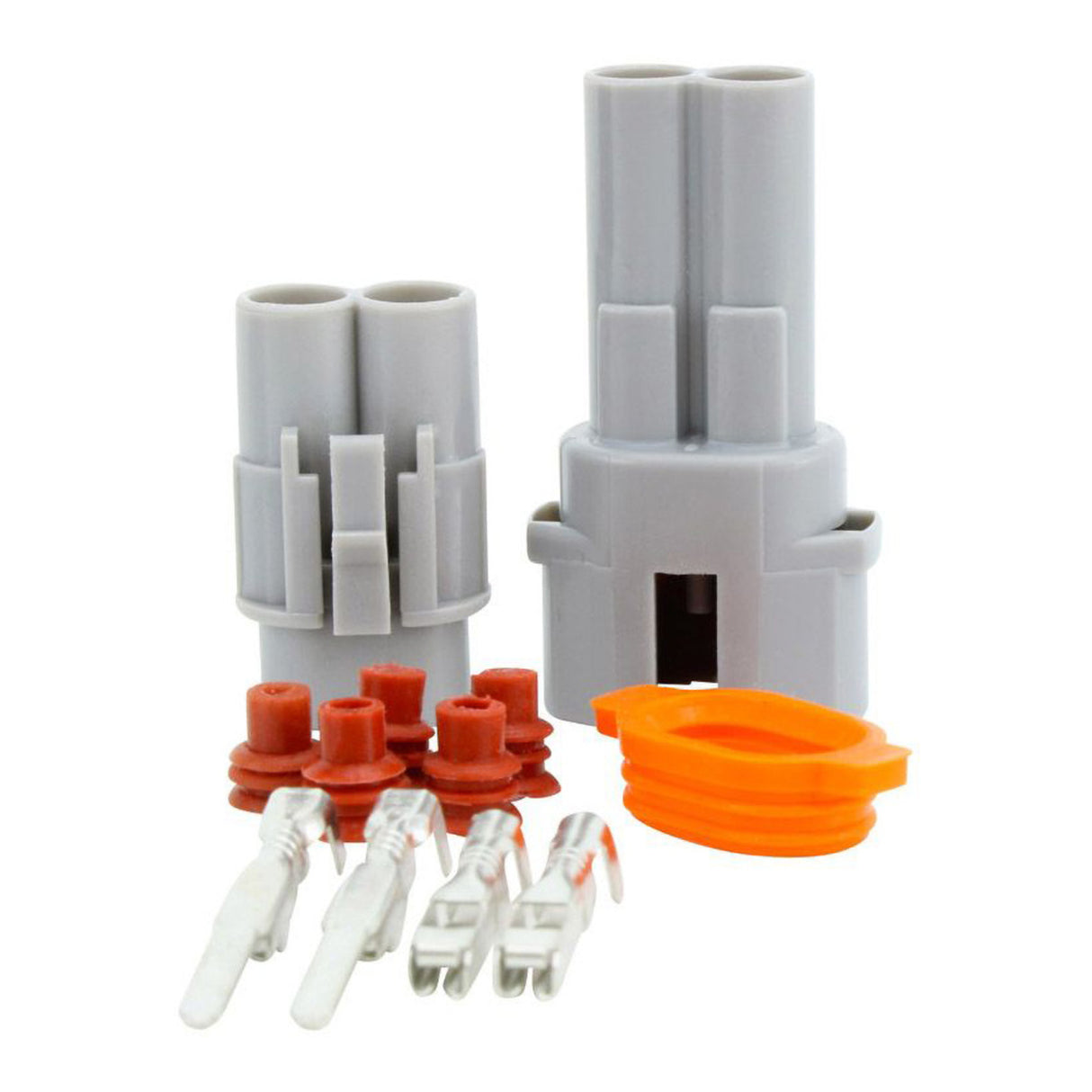

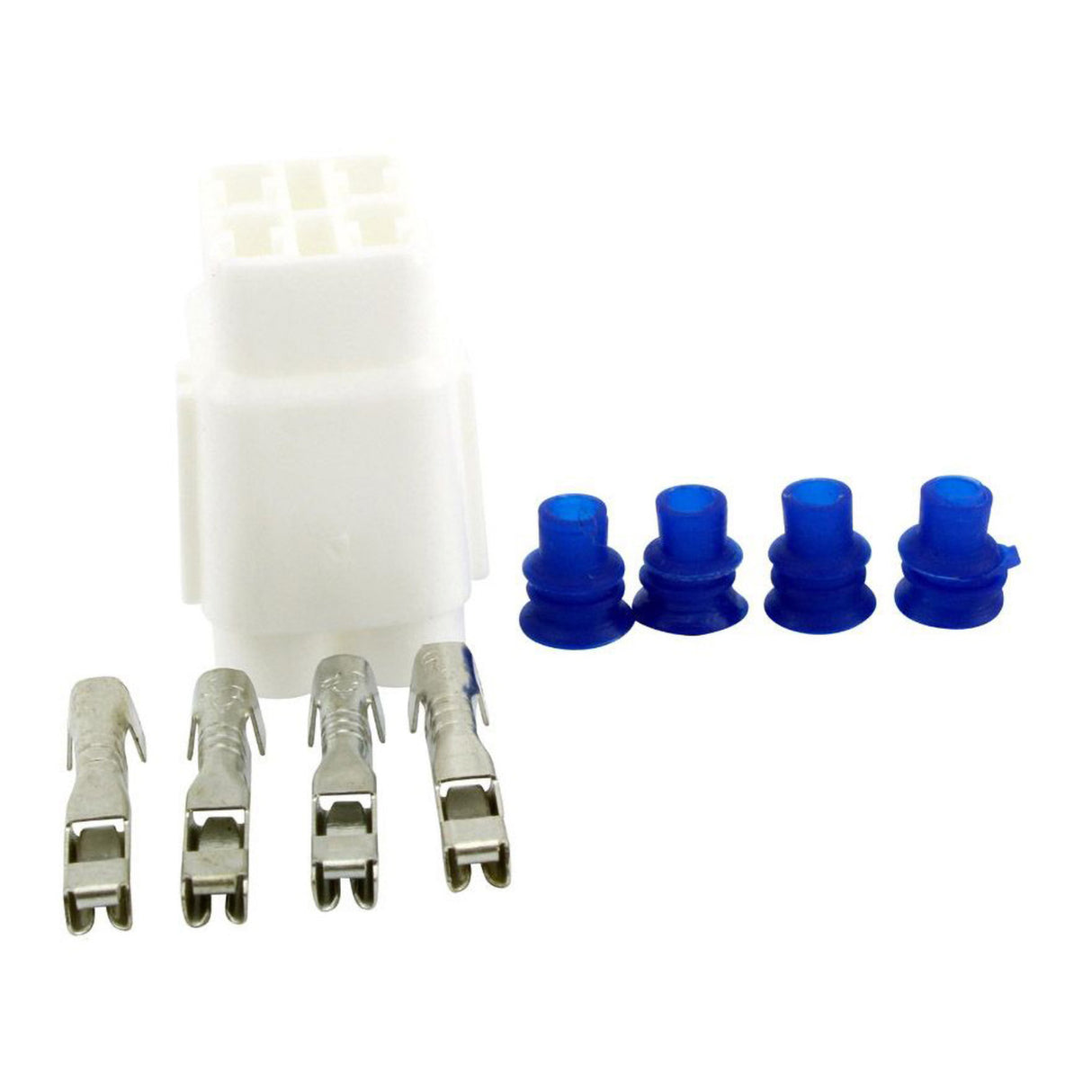

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

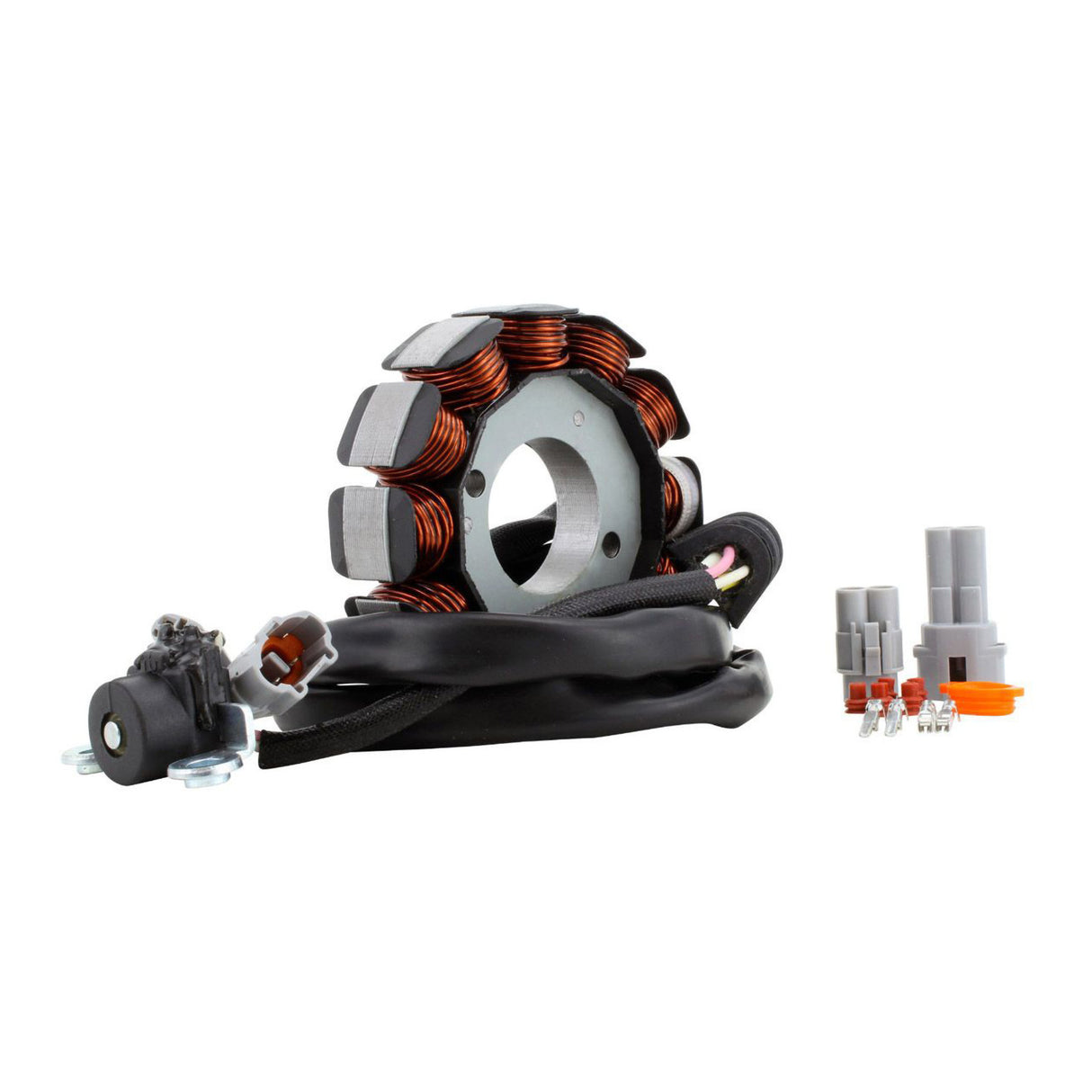

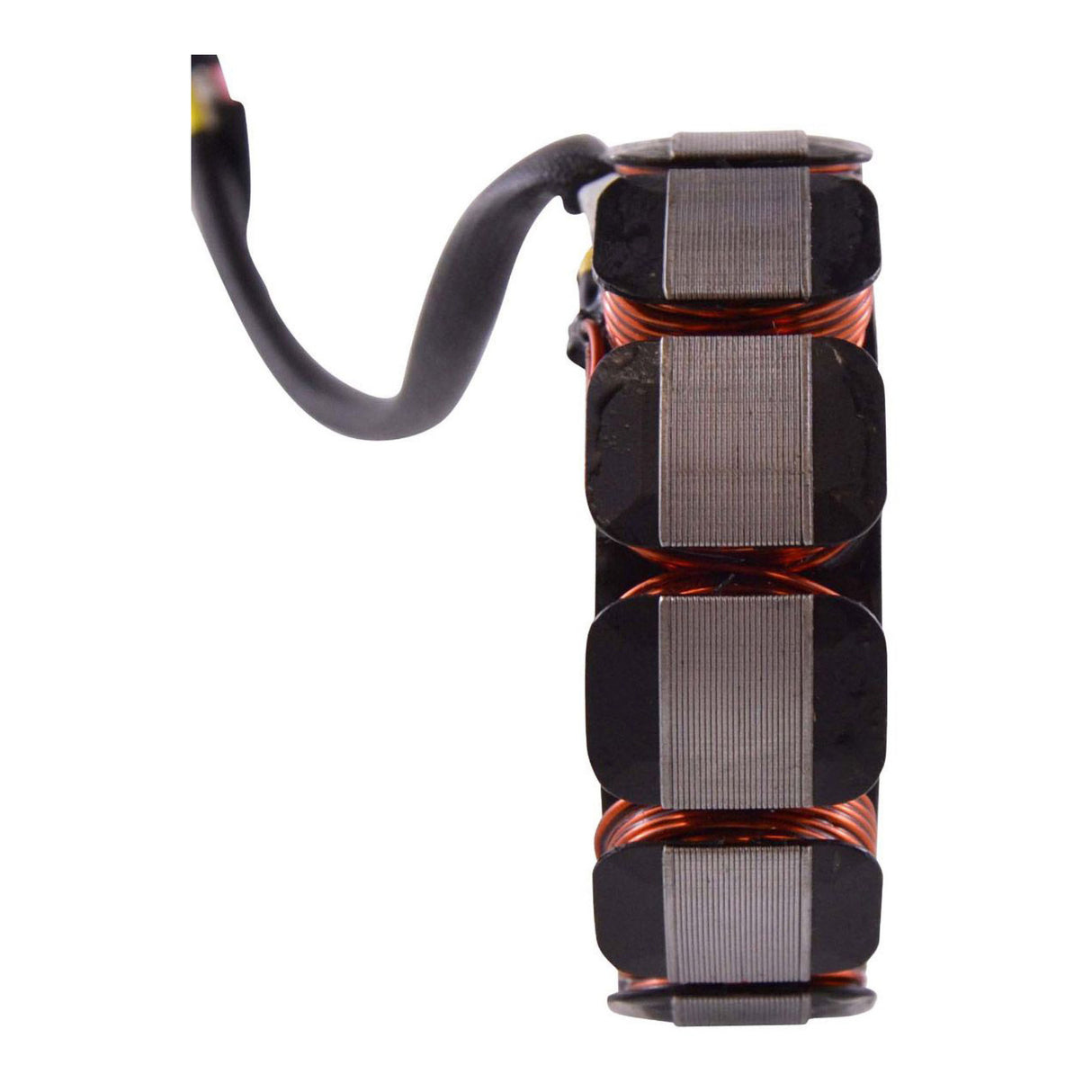

Brand new High output stator

  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Pick up pulsar coil included
  • Connector included
  • Rubber grommet included

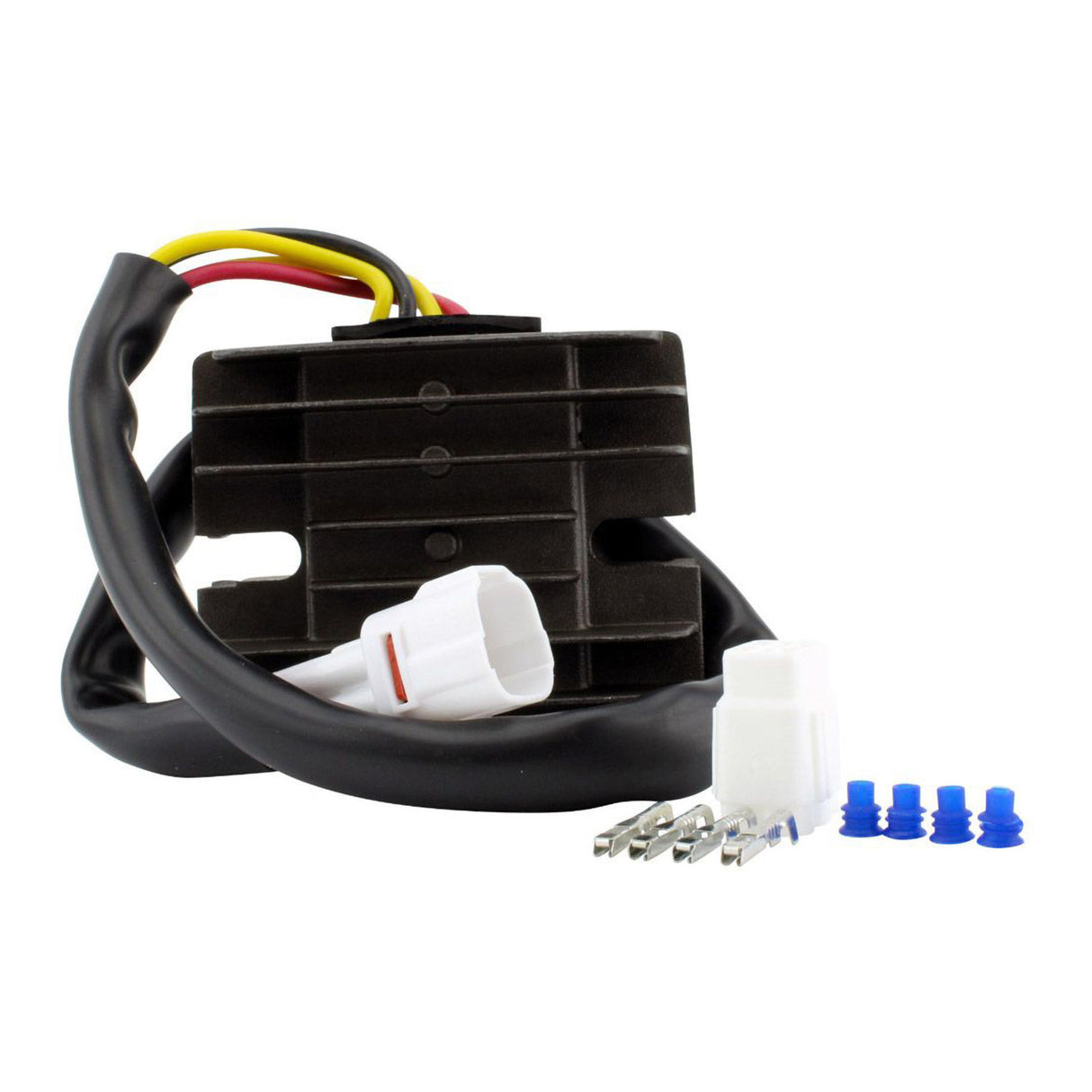

Brand new Heavy-duty Voltage regulator rectifier

  • The quality exceeds the OEM equipment
  • Improved heat sink and charging capabilities
  • Higher grade of electric components

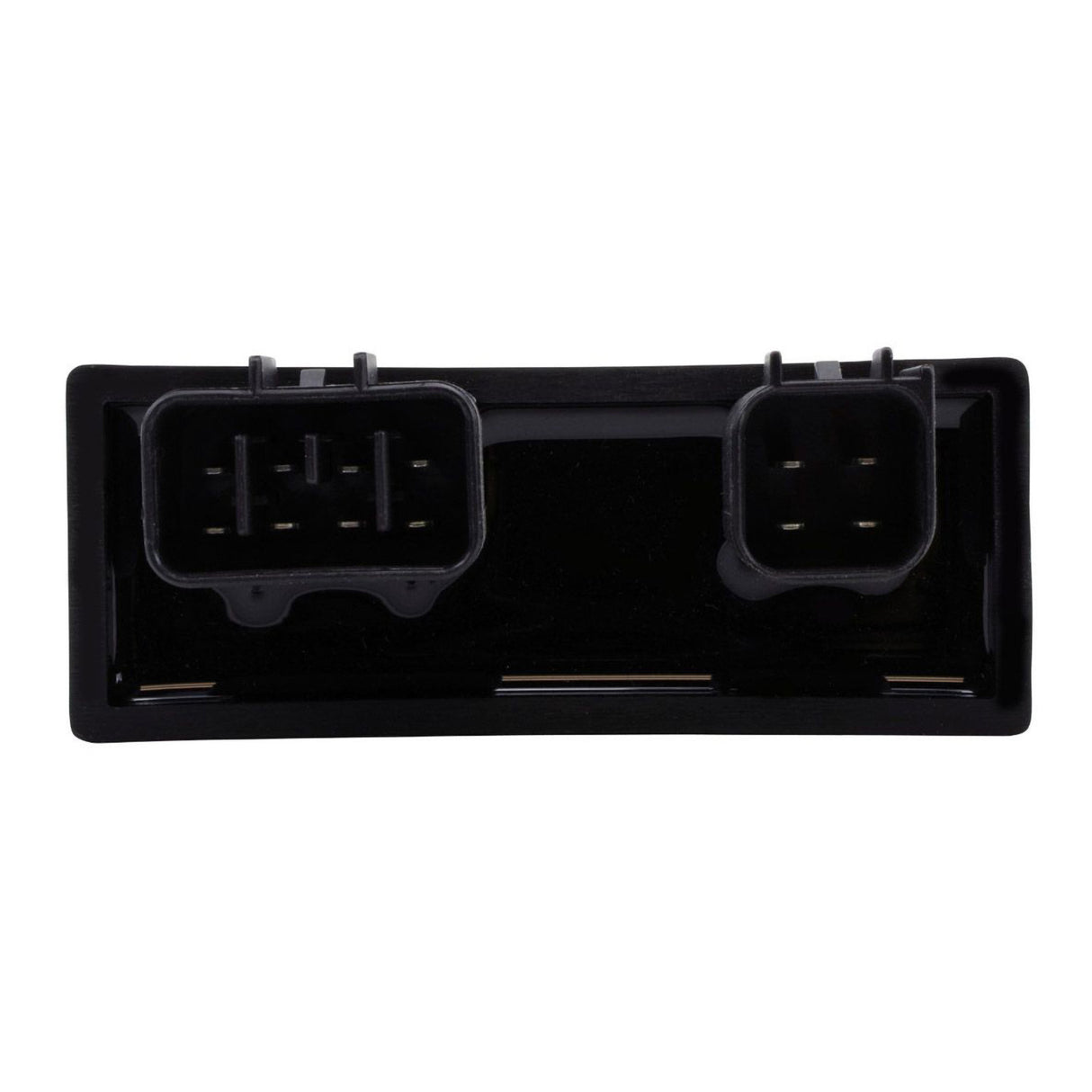

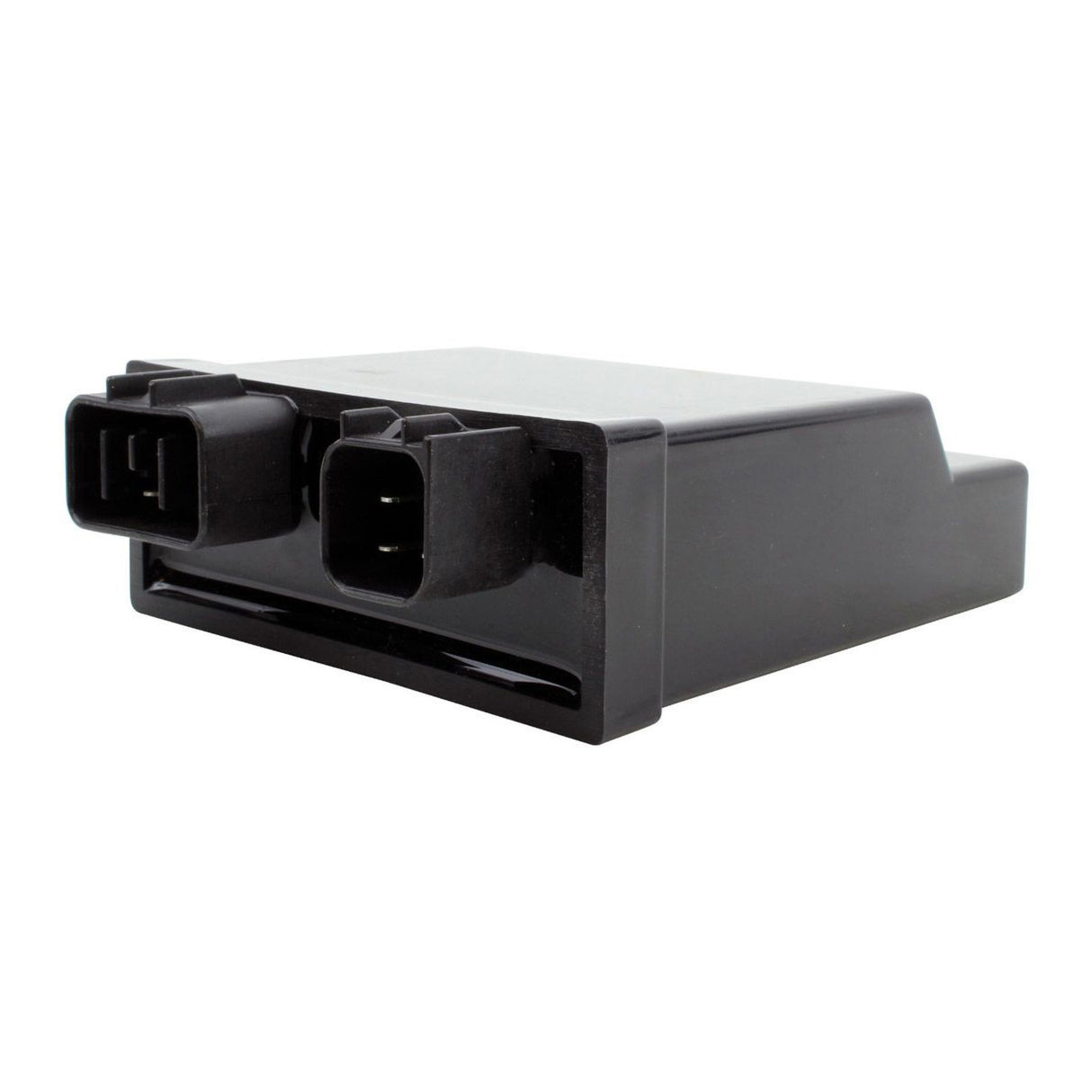

Brand new high-performance CDI Box

  • Our part is a Plug-and-play unit, direct fit, and easy to install.
  • Enhanced timing curve, increased rev limiter (approximately 1000 rpm)
  • Higher grade of electronic components.
  • The Quality exceeds the OEM equipment
  • All products shipped are tested

Stator

Dimensions:

  • Int erior diameter: 30mm
  • Exterior diameter: 85mm
  • Thickness: 10mm
  • Length of wires stator to grommet: 180mm
  • Length of wires grommet to plug: 900mm
  • Length of pickup coil's wire to grommet: 90mm

Other specifications:

  • Number of wires: 4
  • Number of plugs: 2
  • Number of pins: 4

Wire to wire resistance:

  • Pickup: White to Red = 275 ohms +/- 20%
  • Alternator: White to Yellow = 0.4 ohms +/- 20%

Voltage Regulator Rectifier

Dimensions:

  • Width: 63mm
  • Length: 78mm
  • Height: 26mm
  • Fixation holes centre to centre: 60mm
  • Wires length: 450mm

Other specifications:

  • Number of plugs: 1
  • Number of pins: 4

HP CDI Box

Dimensions:

  • Height: 36mm
  • Length: 86mm
  • Width: 81mm

Other specifications:

  • Number of plugs: 2
  • Number of pins: 12

Please Note:

  1. All electrical components must be fitted by a qualified technician.
  2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
  3. The absence of either of points 1 or 2 above, will void any warranty.
