Description
Description

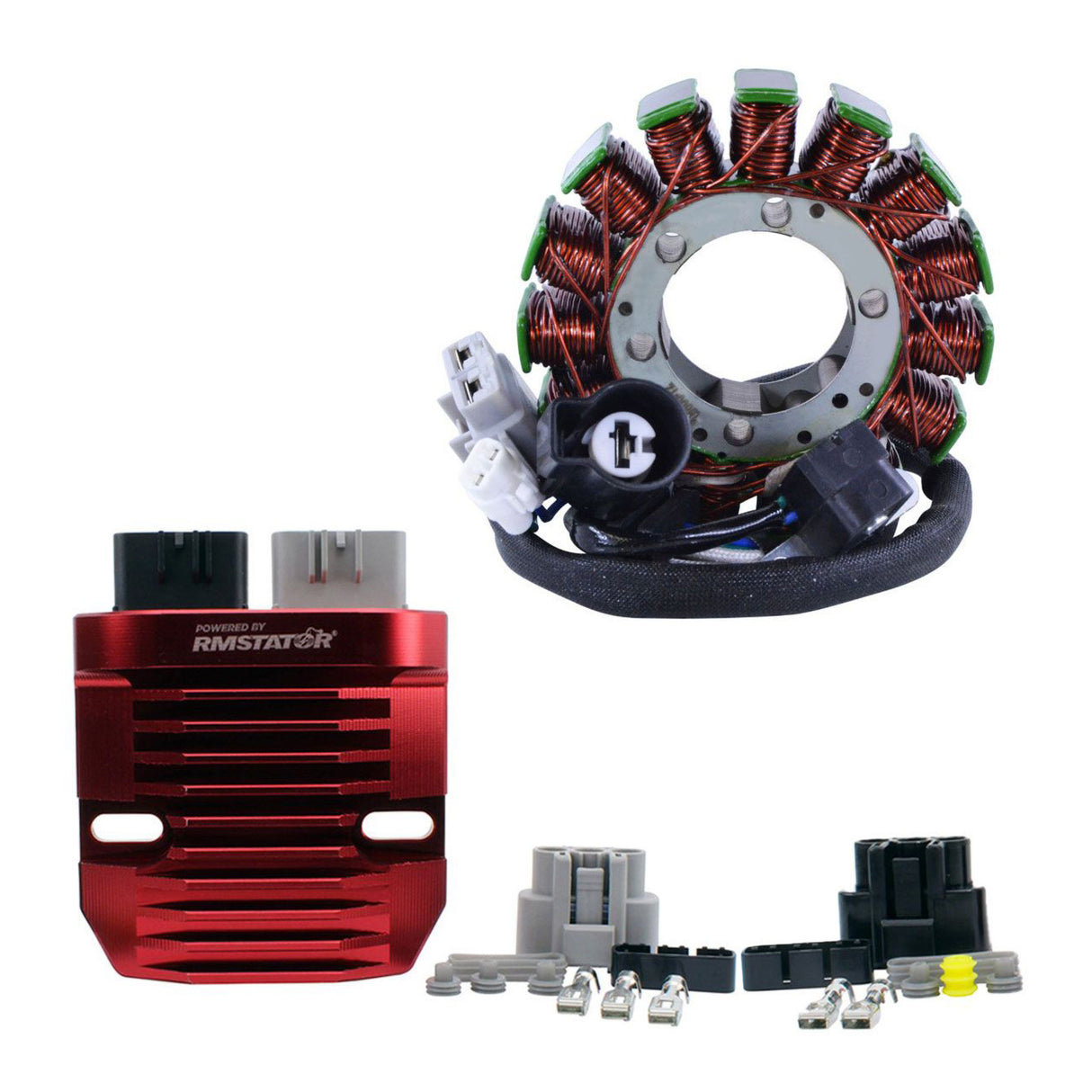

Brand new aftermarket stator and red machined aluminium MOSFET regulator kit.
- Direct replacement for the original unit.
- Plug-and-play, direct fit and easy installation.
- All products are tested before shipping.
Product images are accurate. If in doubt, compare the item with the original part to confirm compatibility.

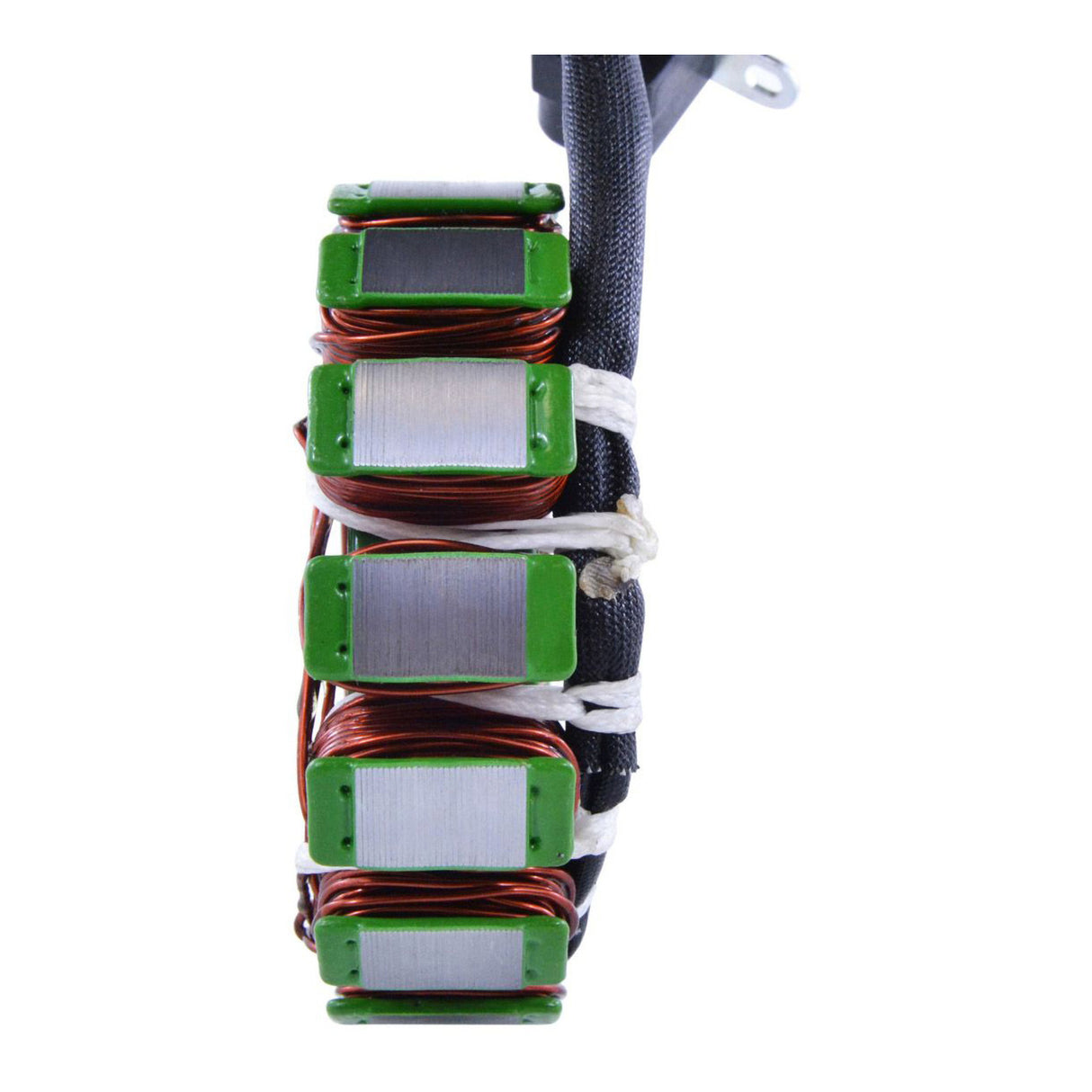

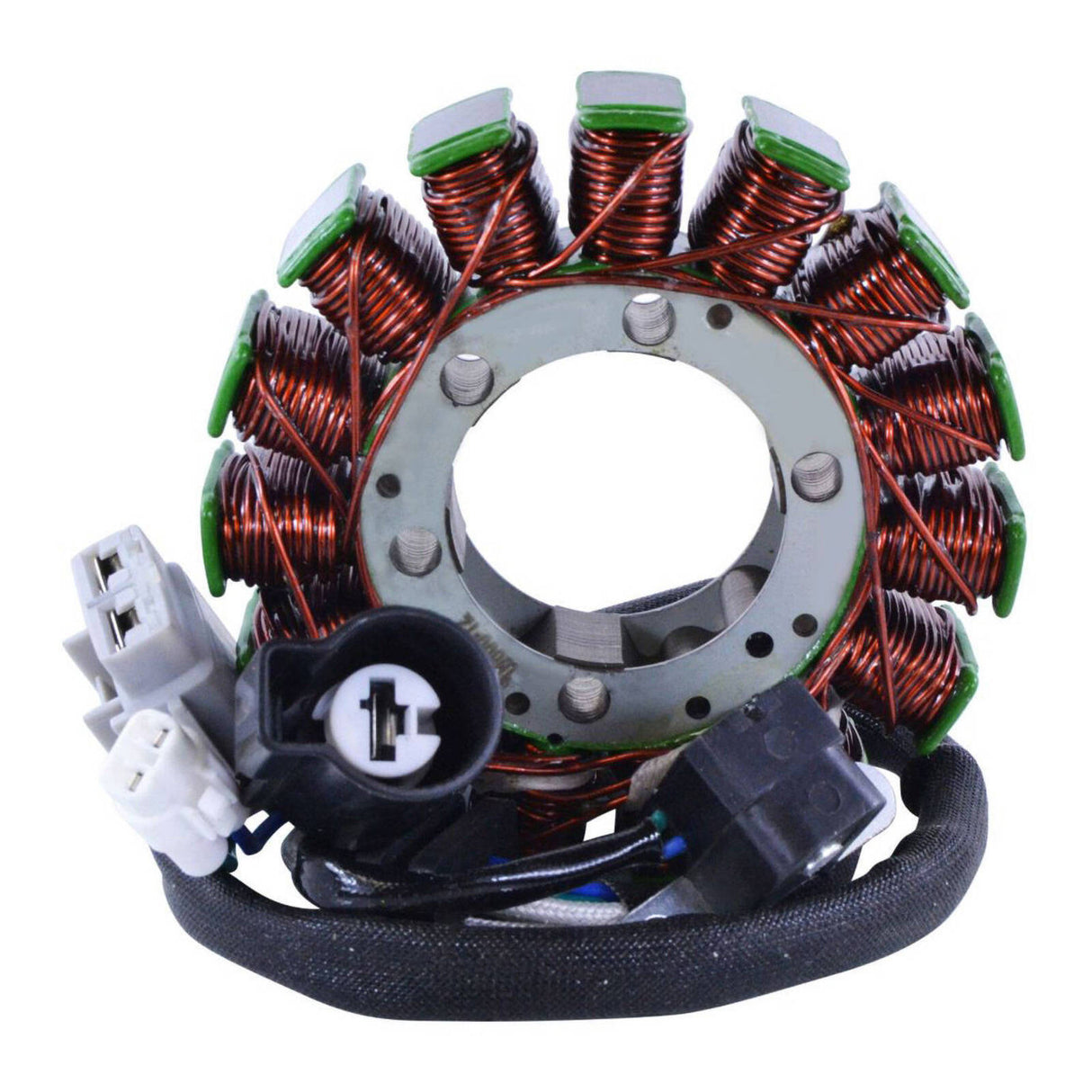

Stator Features:
- High-grade lamination materials.
- High-grade copper windings, resistant to temperatures up to 200°C.

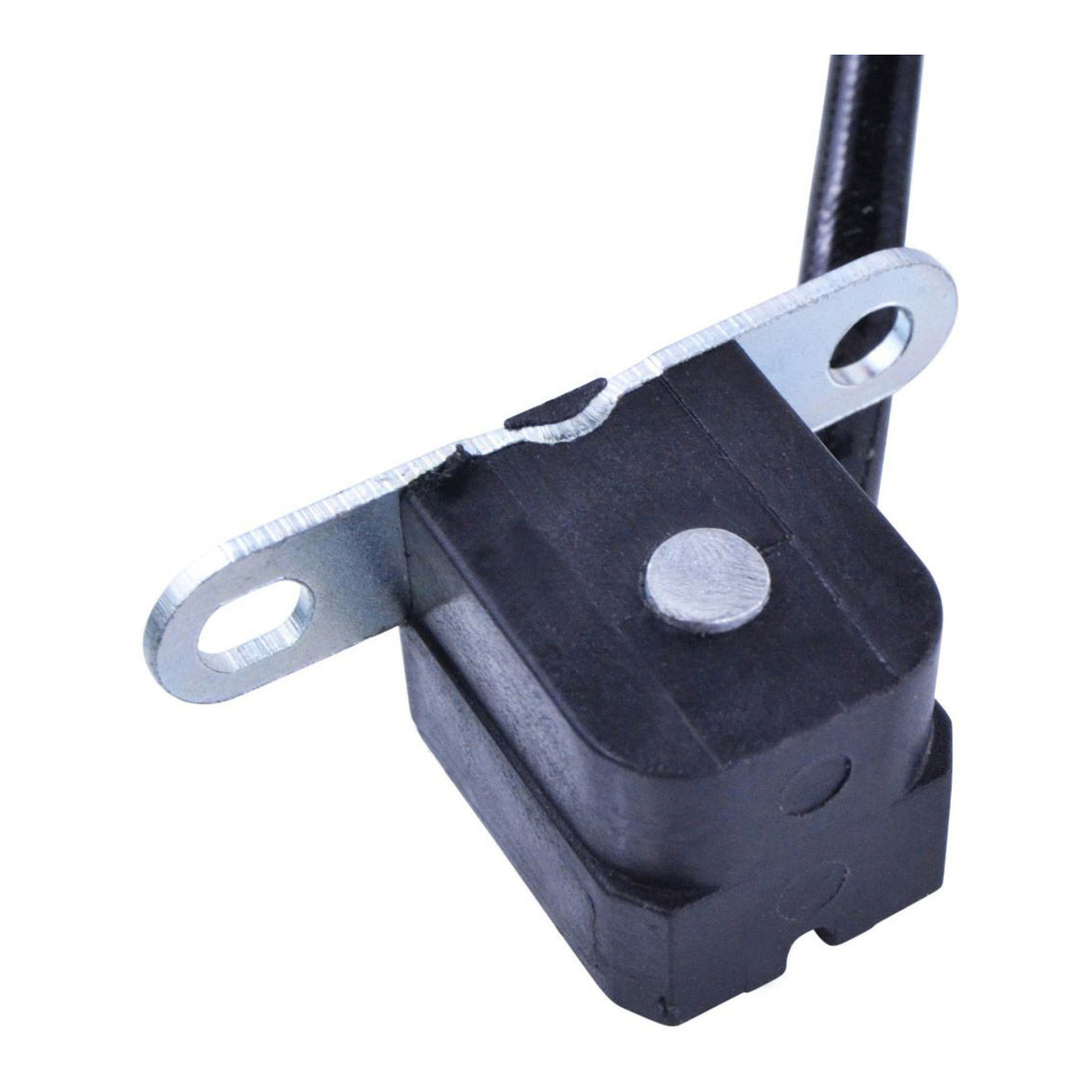

- Pickup/pulser coil included.

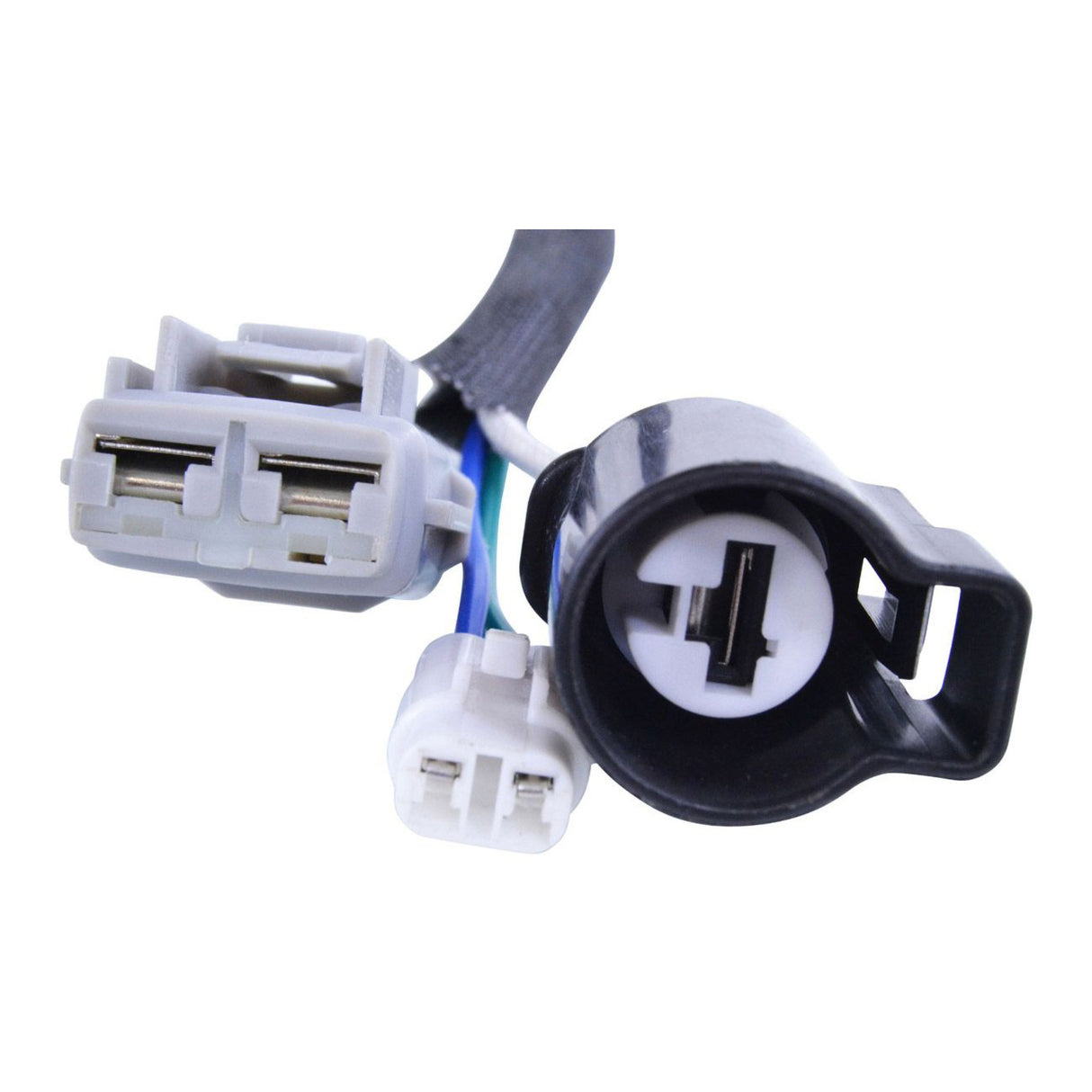

- Connector included.

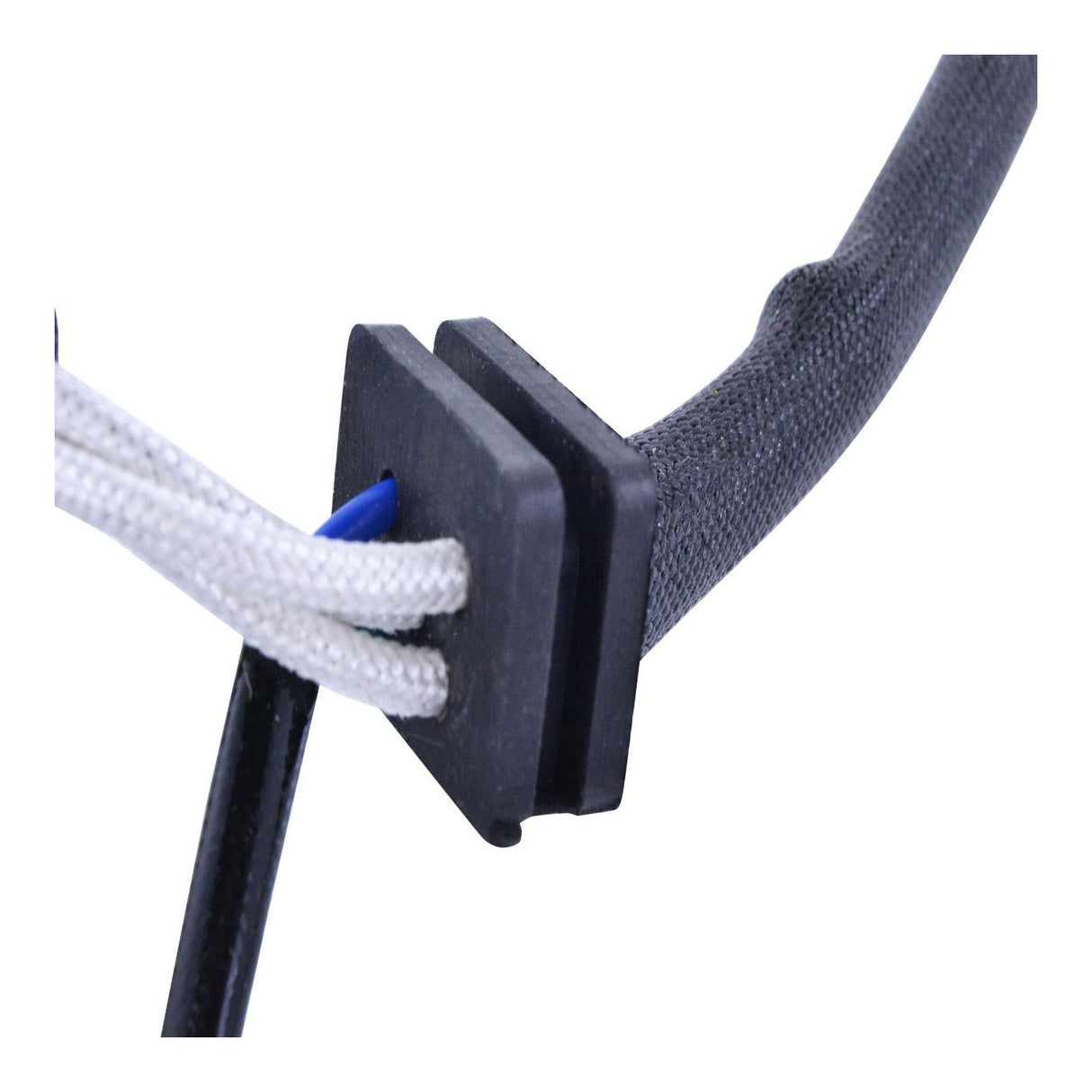

- Rubber grommet included.

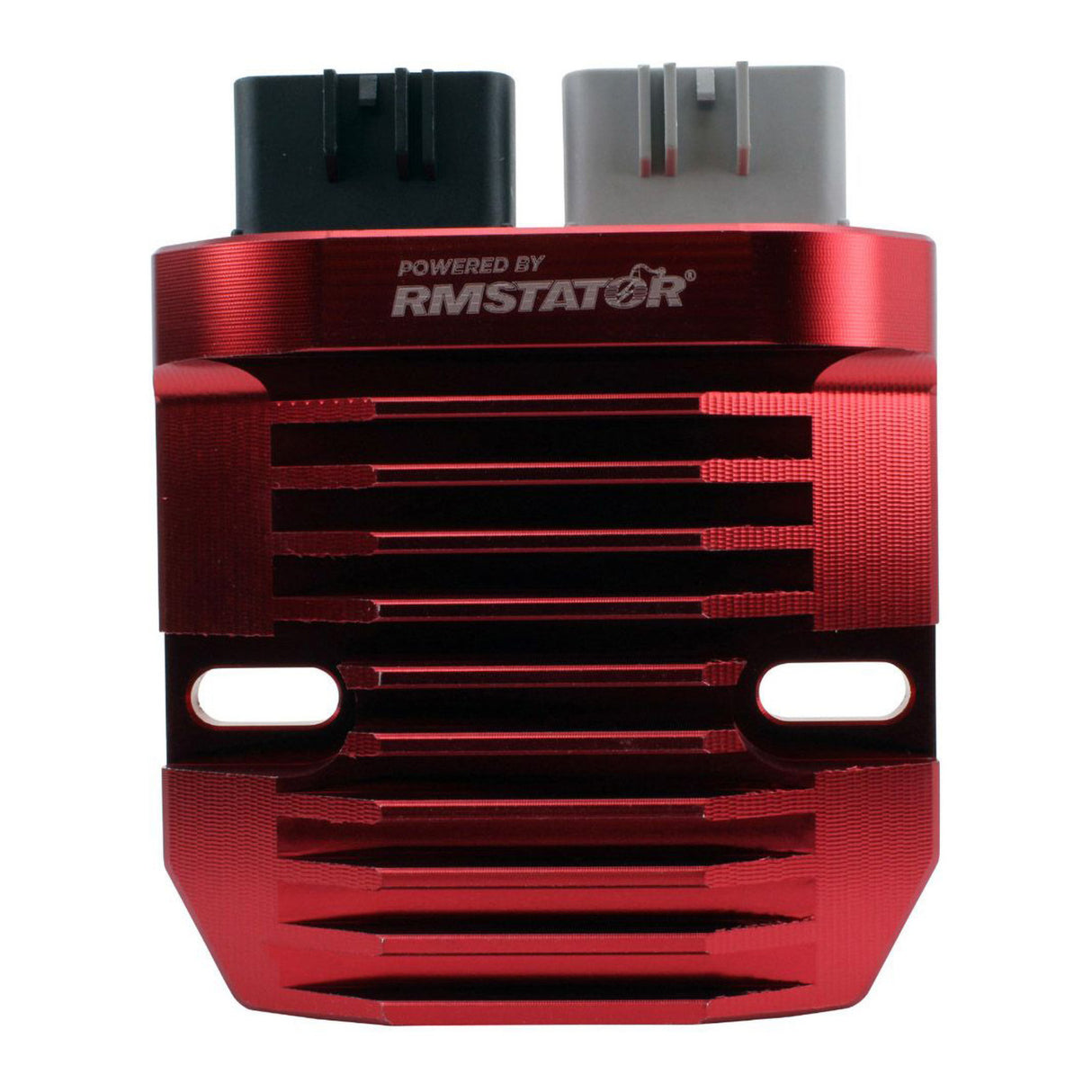

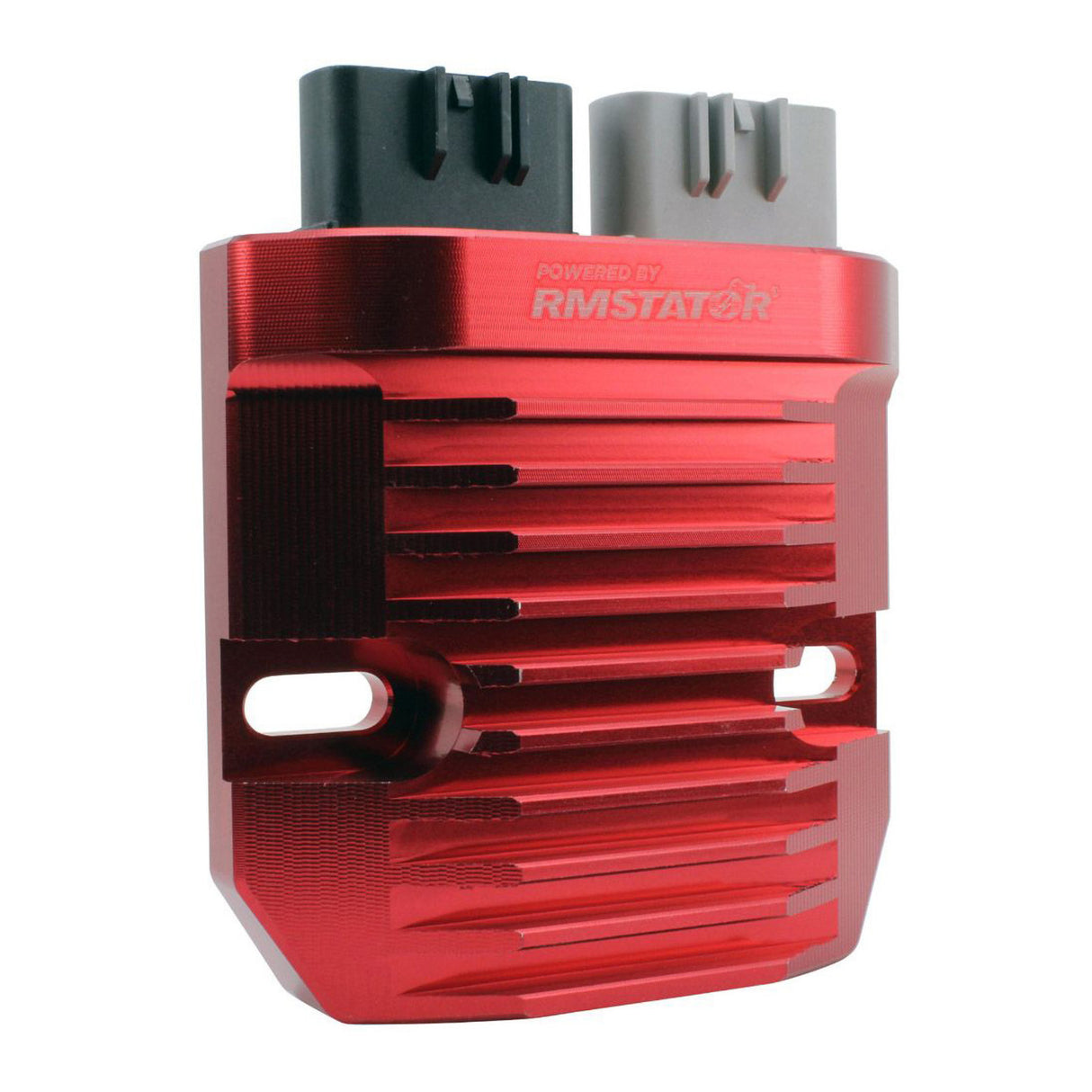

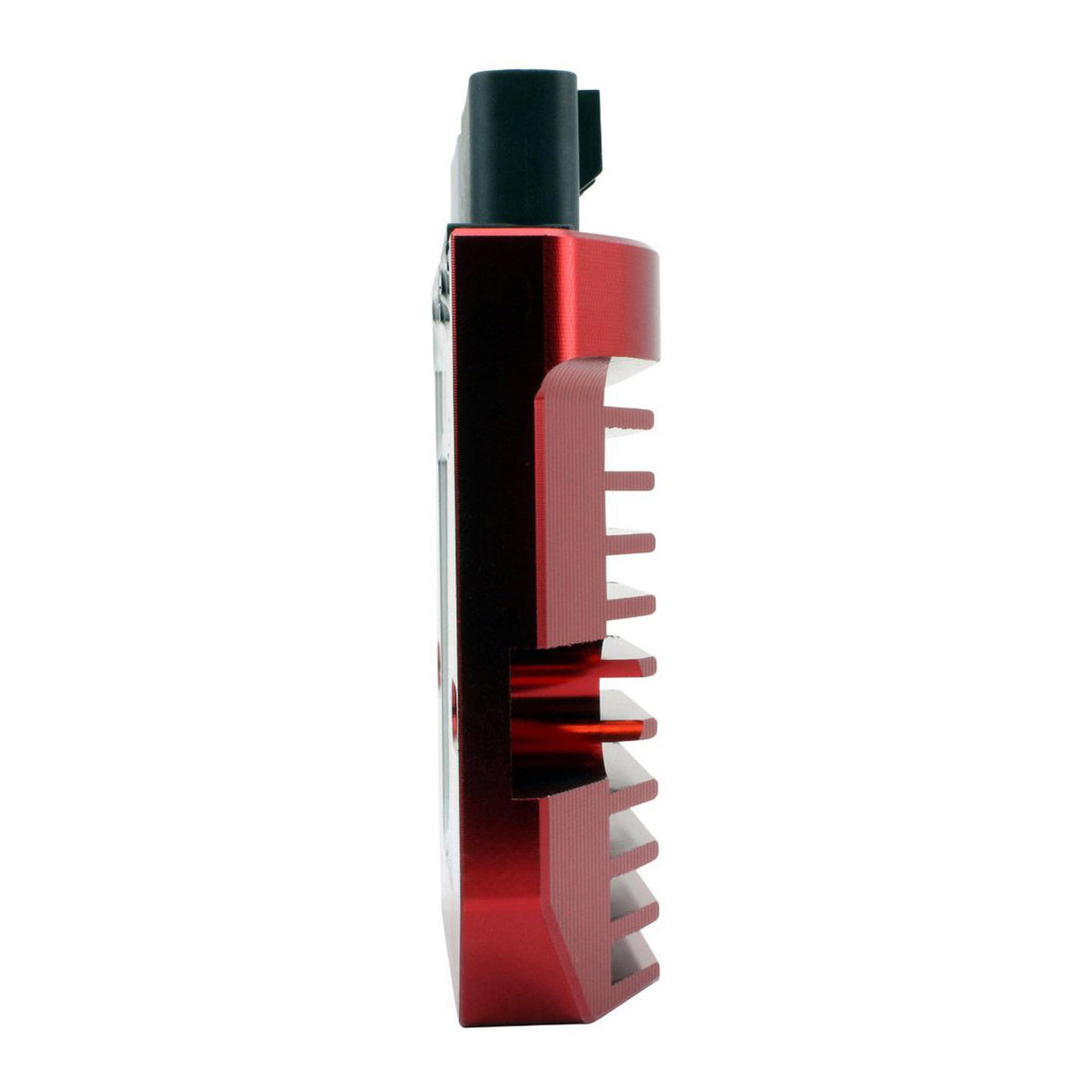

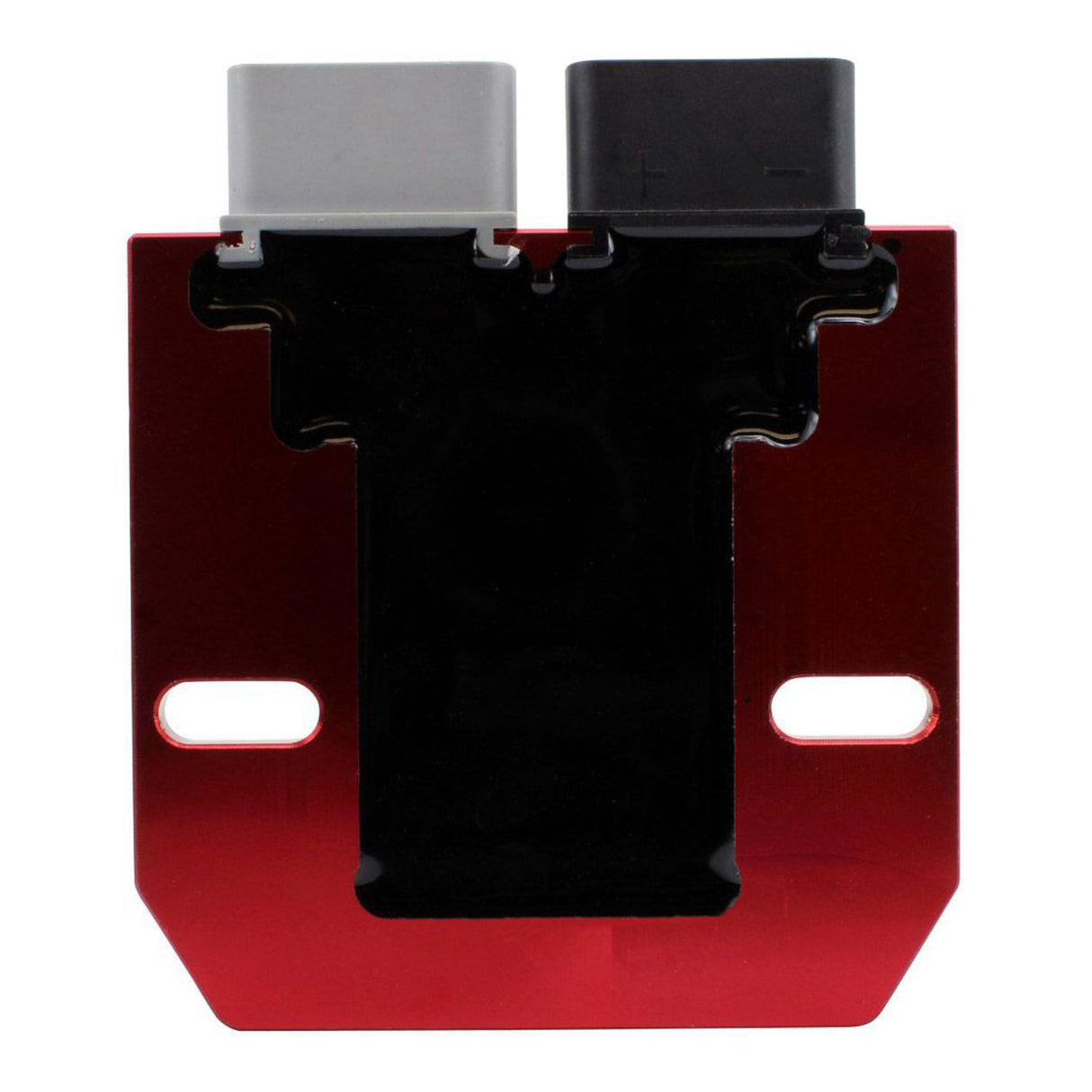

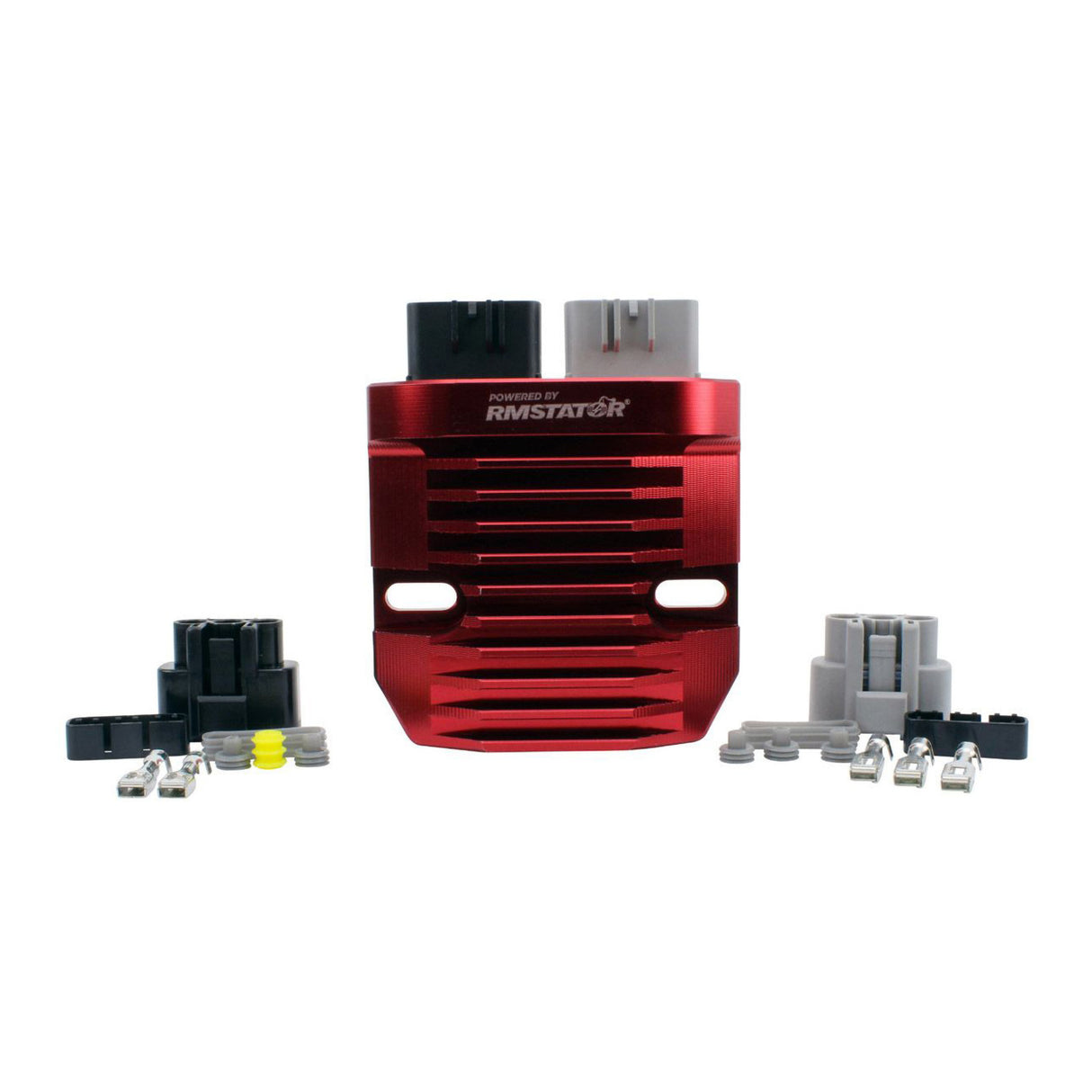

Red Machined Aluminium MOSFET Regulator:
The red machined aluminium MOSFET voltage regulator is designed to improve heat dissipation in powersports charging systems. After 10 minutes of use, the billet aluminium heat sink runs up to 33% cooler than standard cast regulator housings. Equipped with MOSFET regulation technology, it is designed for three-phase permanent magnet charging systems.
Stop burning the regulator rectifier! Upgrade to advanced MOSFET technology. It runs cooler than OEM diode-style regulators and features overheat protection. Instead of burning out, the rectifier temporarily switches off to cool down.
- Quality exceeds OEM equipment.
- Improved heat sink and charging capabilities.
- Higher-grade electrical components.
- Runs cooler than traditional shunt voltage regulator rectifiers.
- Reduces stator load, helping reduce engine workload and fuel consumption.
- Provides steadier, smoother battery charging.
- Helps extend battery life and cold-cranking capacity.
- Reduces stator load to help free up engine power.
- Advanced design lowers operating temperatures for improved longevity and performance.
- Optimises power delivery by switching the stator coils on or off.
Opposite connector (main harness side) included. These connectors are commonly affected by melting, corrosion and defects, which can cause recurring electrical problems.
Before Installing the Stator:
- Check the AC output of the stator.
- Replace any burned or corroded connectors on the stator and regulator/rectifier.
- Check and repair any melted wiring.
- Apply high-temperature dielectric grease to all connectors.
The stator may use a different wire colour code from the original. All wires are installed in the correct order. Do not change the wiring configuration. This stator is designed as a direct plug-in replacement.
Always use thread-locking compound when installing the stator. If the stator includes a pickup coil, ensure the air gap is correctly adjusted. Set it as close as possible, but no less than 0.010 inches.
Before Installing the Voltage Regulator:
- Check the AC output of the stator.
- Replace any burned or corroded connectors on the stator and regulator/rectifier.
- Check and repair any melted wiring.
- Apply high-temperature dielectric grease to all connectors.
Warning: Risk of electric shock. Disconnect the battery before servicing. Installation should be carried out by a qualified technician to avoid malfunction.
Stator Dimensions:
- Interior diameter: 42 mm
- Exterior diameter: 105 mm
- Thickness: 20 mm
- Stator-to-grommet wire length: 160 mm
- Grommet-to-plug wire length: 950 mm
- Pickup coil wire-to-grommet length: 90 mm
Other Stator Specifications:
- Number of wires: 5
- Number of plugs: 3
- Number of pins: 5
- Alternator resistance: White wire to white wire: 0.6 ohms ±20%
- Pickup coil resistance: Green wire to blue wire: 500 ohms ±20%
Red Machined Aluminium MOSFET Regulator Dimensions:
- Width: 103 mm
- Length: 103 mm
- Height: 28 mm
- Mounting hole centre-to-centre distance: 80 mm
Other Regulator Specifications:

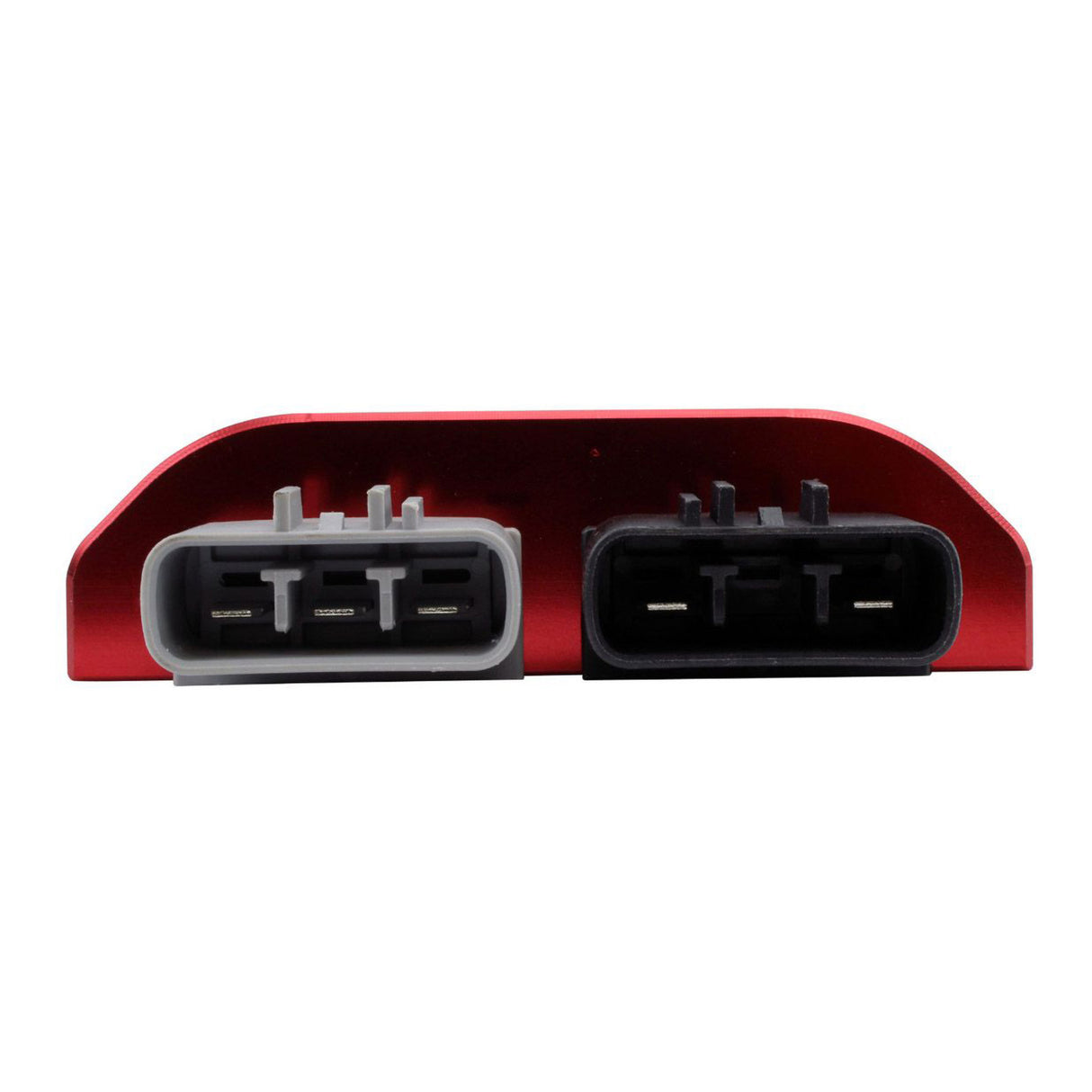

- Number of plugs: 2
- Number of pins: 5
- Minimum charging voltage: 14.5 V ±0.5 V
- Maximum charging current: 50 A / 500 W
- Open circuit voltage: 15 V
- Operating temperature: -20°C to 85°C
