Stator + Rotor + Ignition Coil Kit (RMS900-107608)
Description
Description

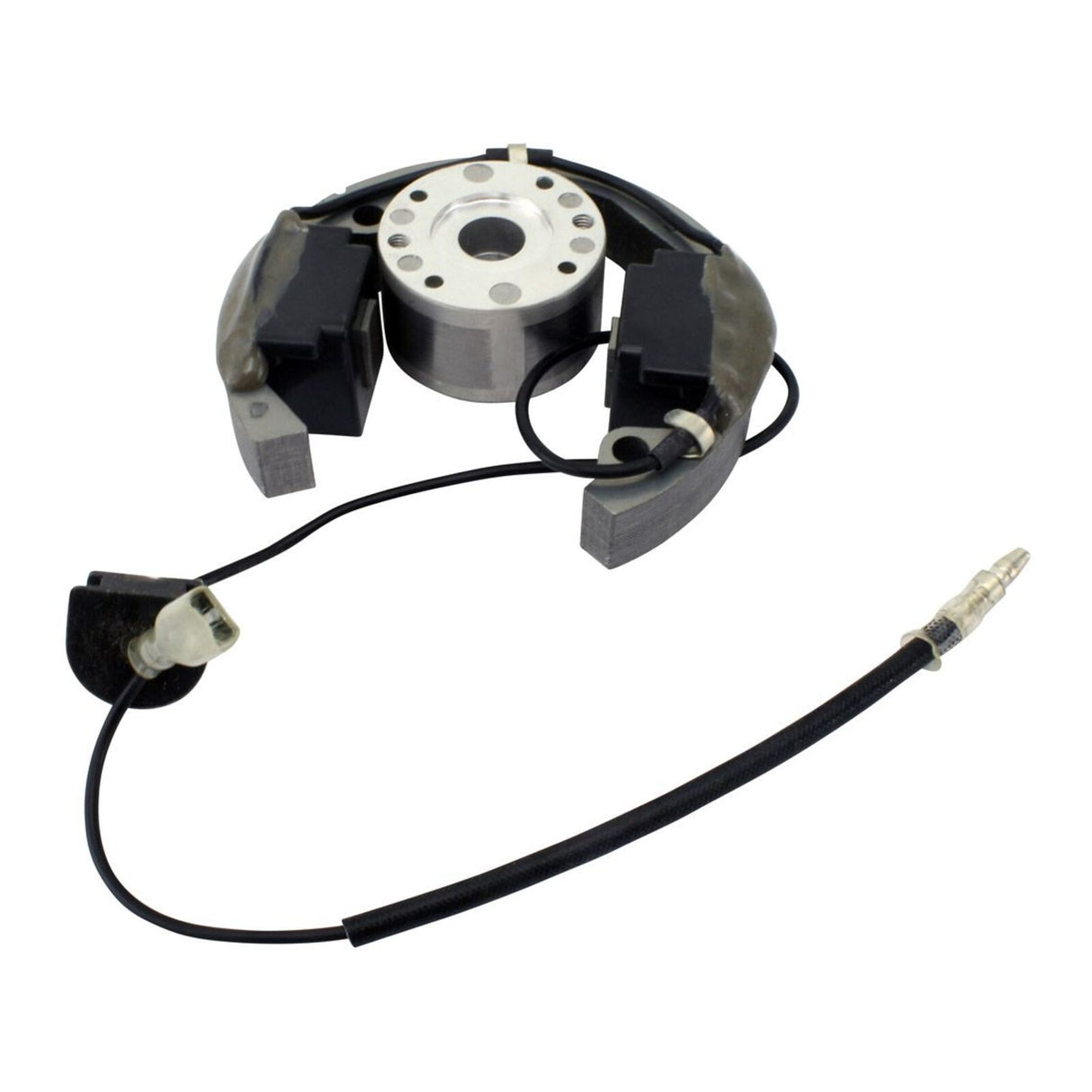

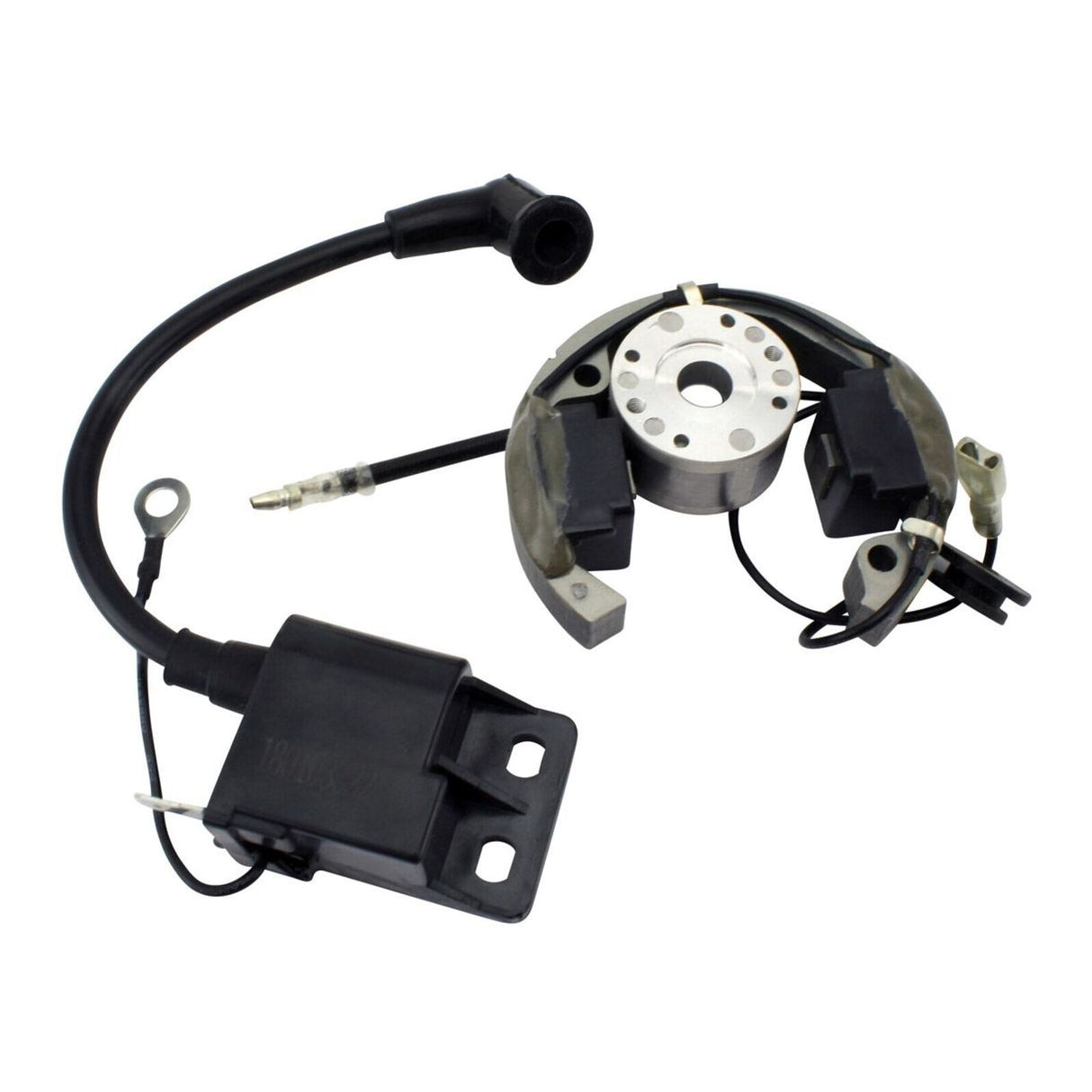

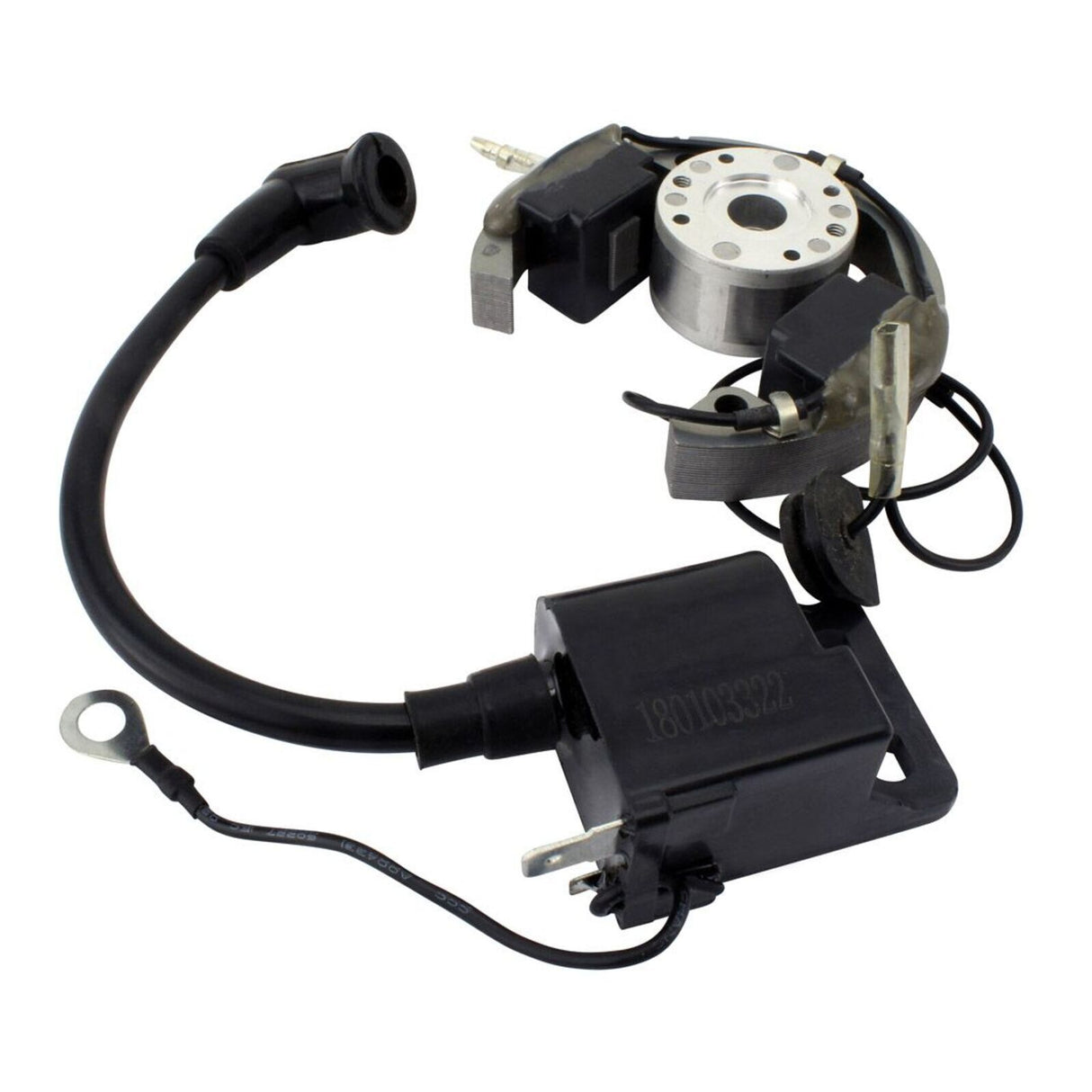

Brand new aftermarket Stator, Rotor and Ignition Coil kit.
- Direct replacement for the original unit.
- Plug-and-play, direct fit and easy installation.
- All products are tested before shipping.
Product images are accurate. If in doubt, compare the item with your original part.

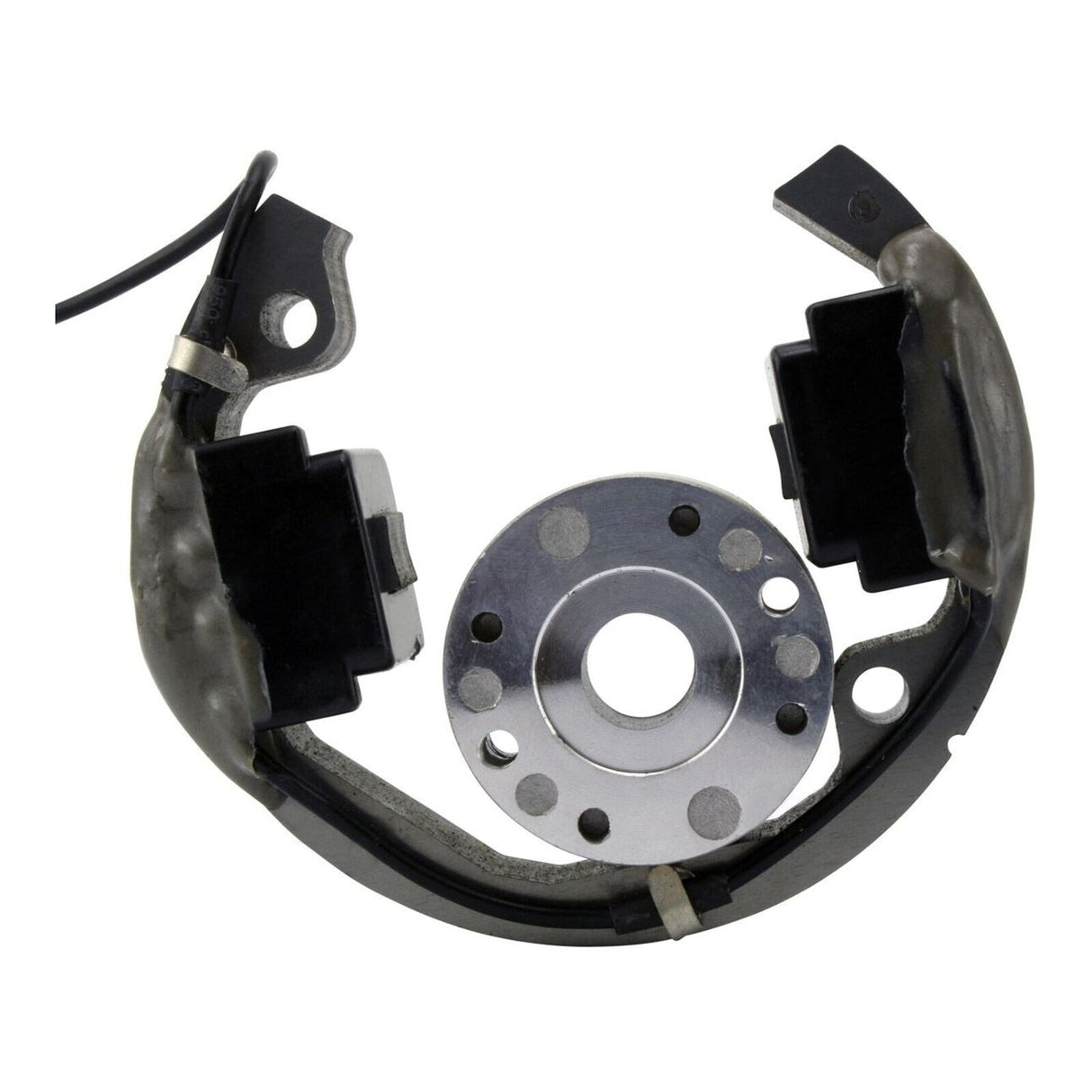

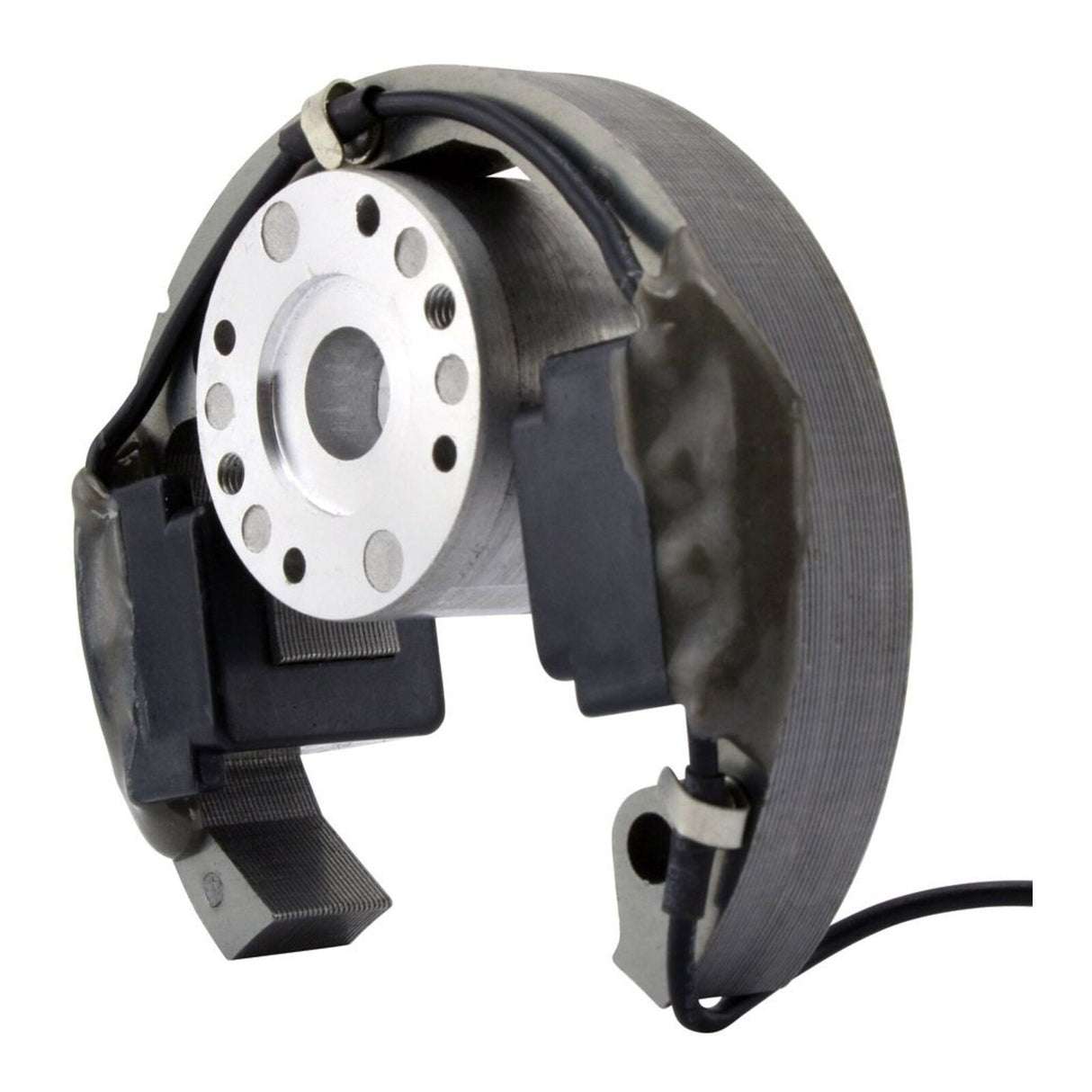

Stator
- High-grade lamination materials.
- High-grade copper windings, resistant to temperatures up to 200°C.

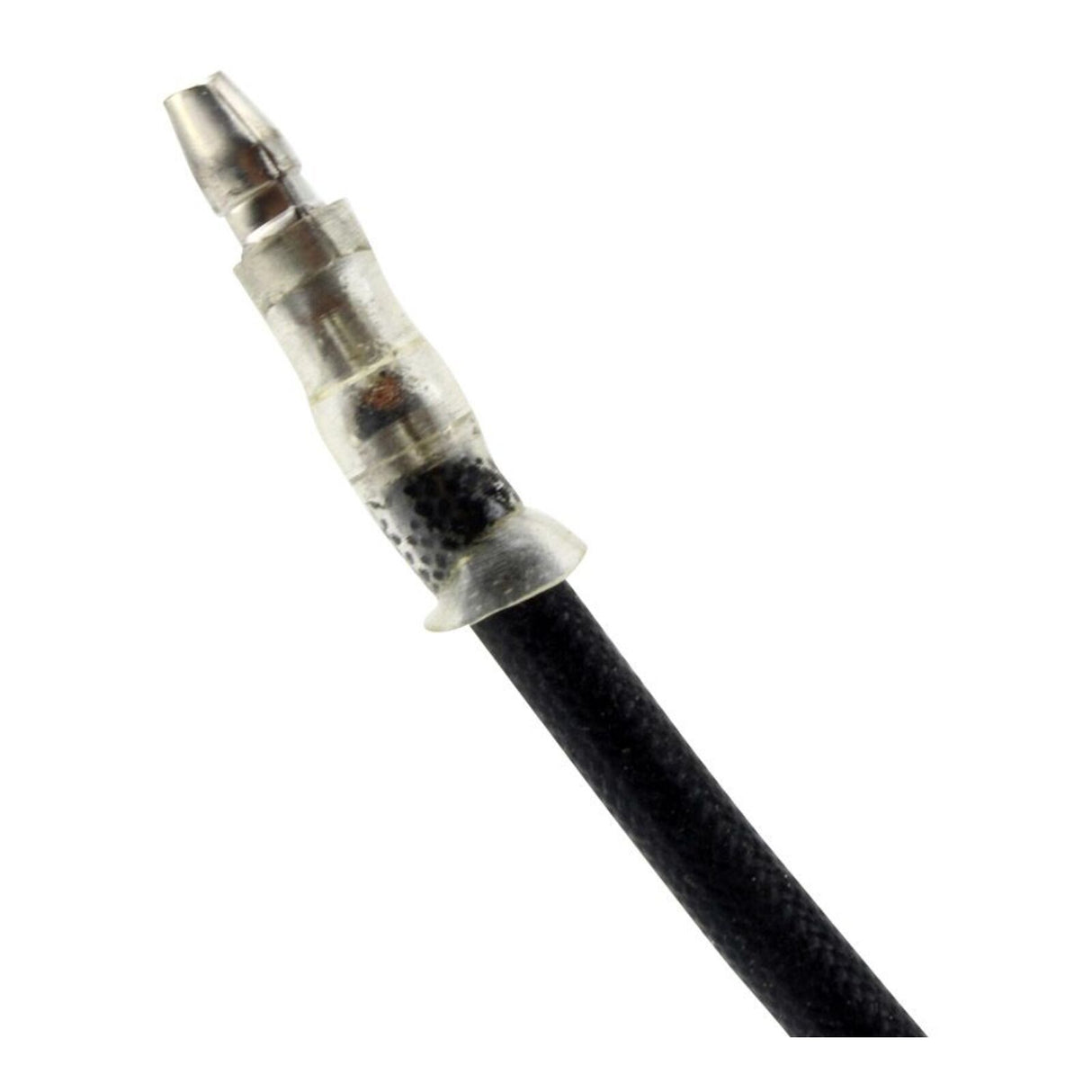

- Connector included.

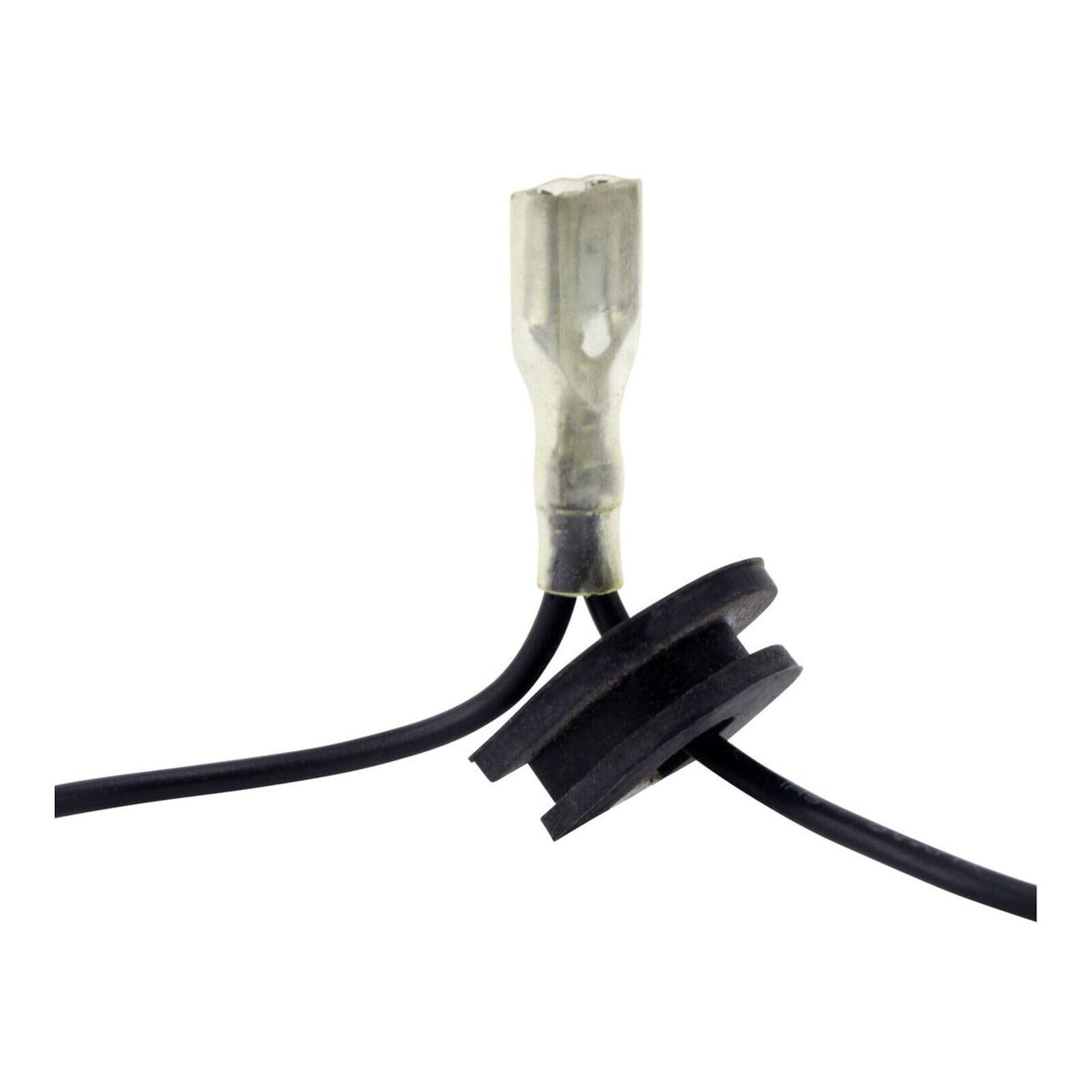

- Rubber grommet included.
Before installing the new stator:
- Check the AC output of the stator.
- Replace any burned or corroded connectors on the stator and regulator/rectifier.
- Check and repair any melted wiring.
- Apply high-temperature dielectric grease to all connectors.
The stator may have a different wire colour code from the original part. All wires are installed in the correct order; do not change the wiring configuration. This stator is designed as a direct plug-in replacement.
Always use thread-locking compound when securing the stator. If the stator includes a pickup coil, check the air gap during installation. Set it as close as possible, but no less than 0.010".

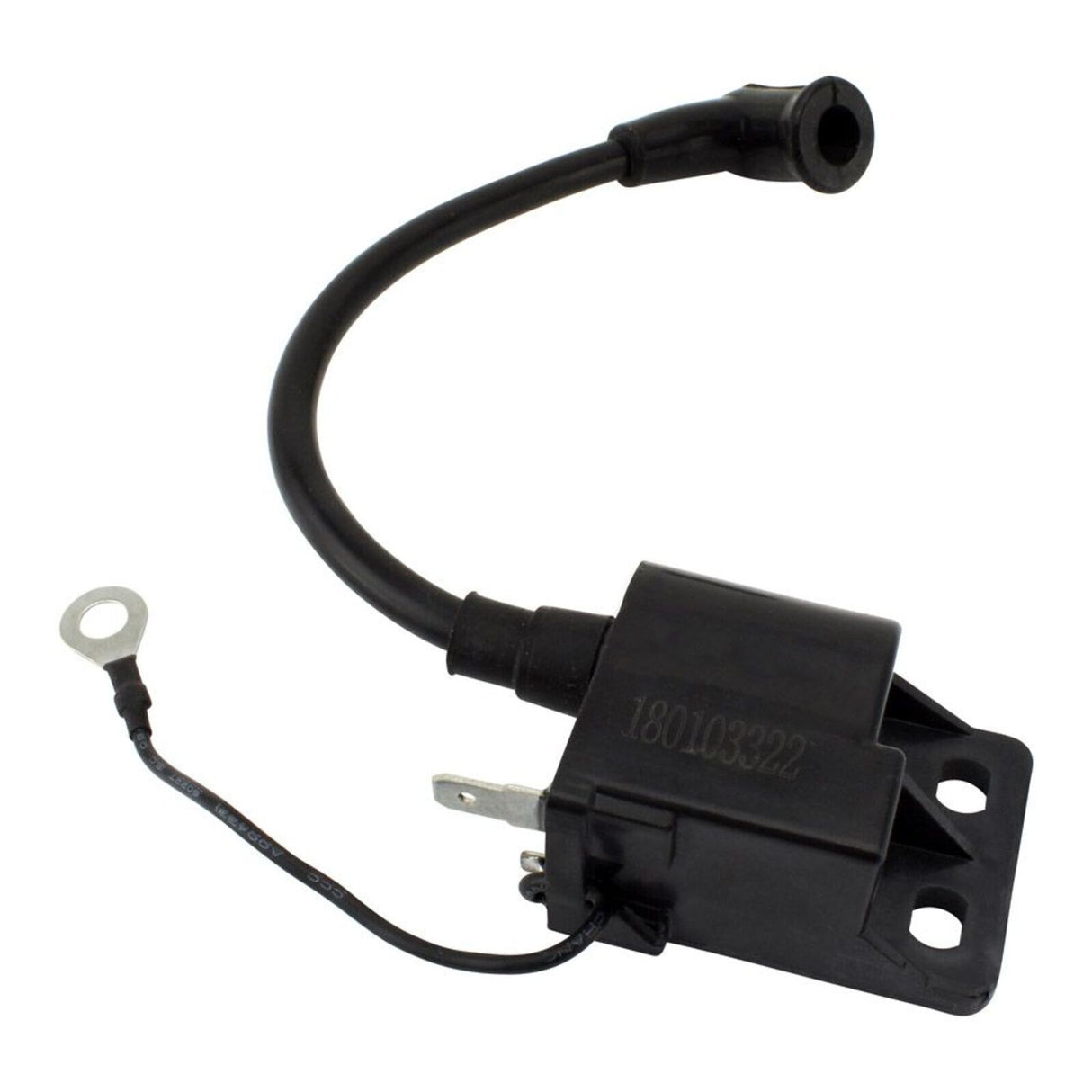

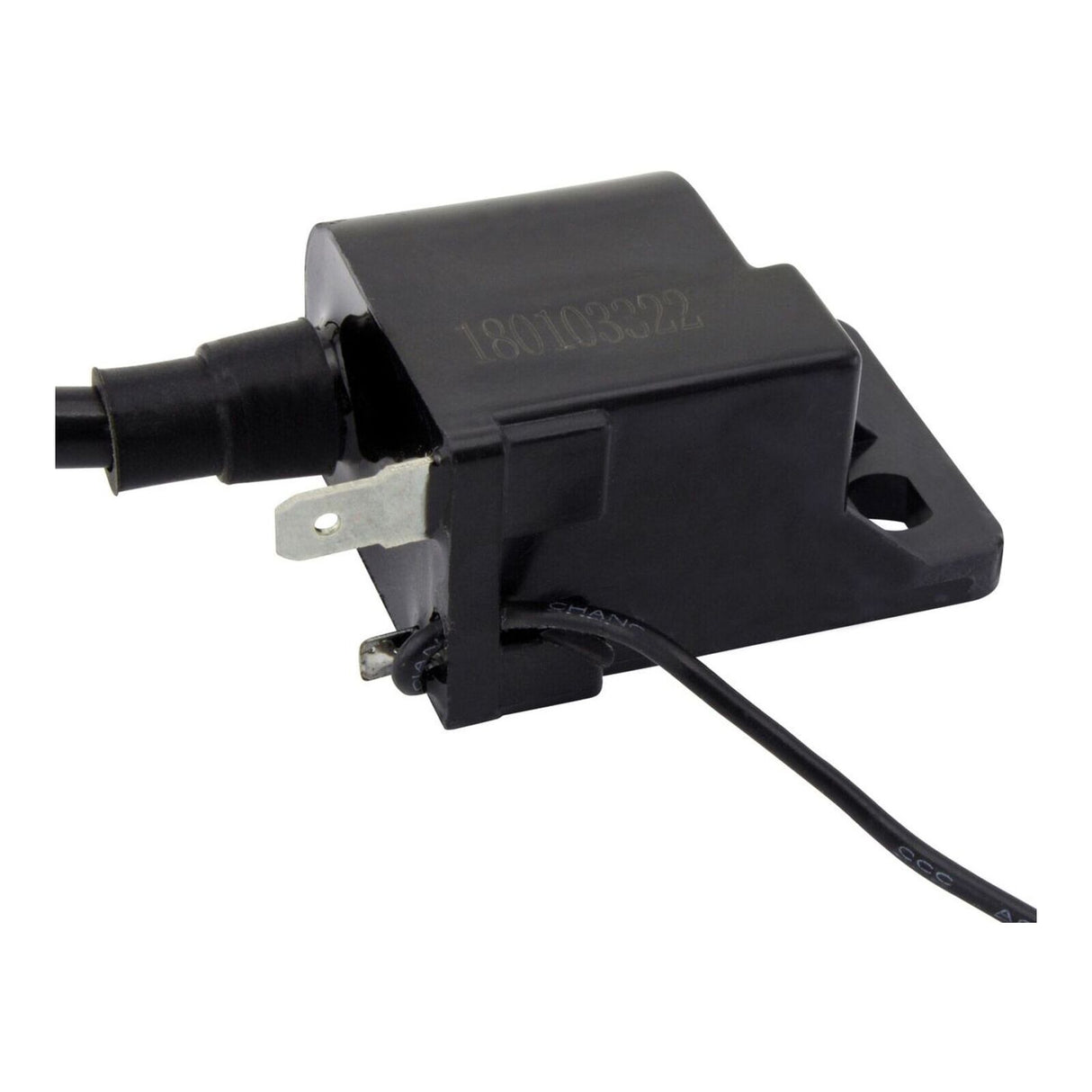

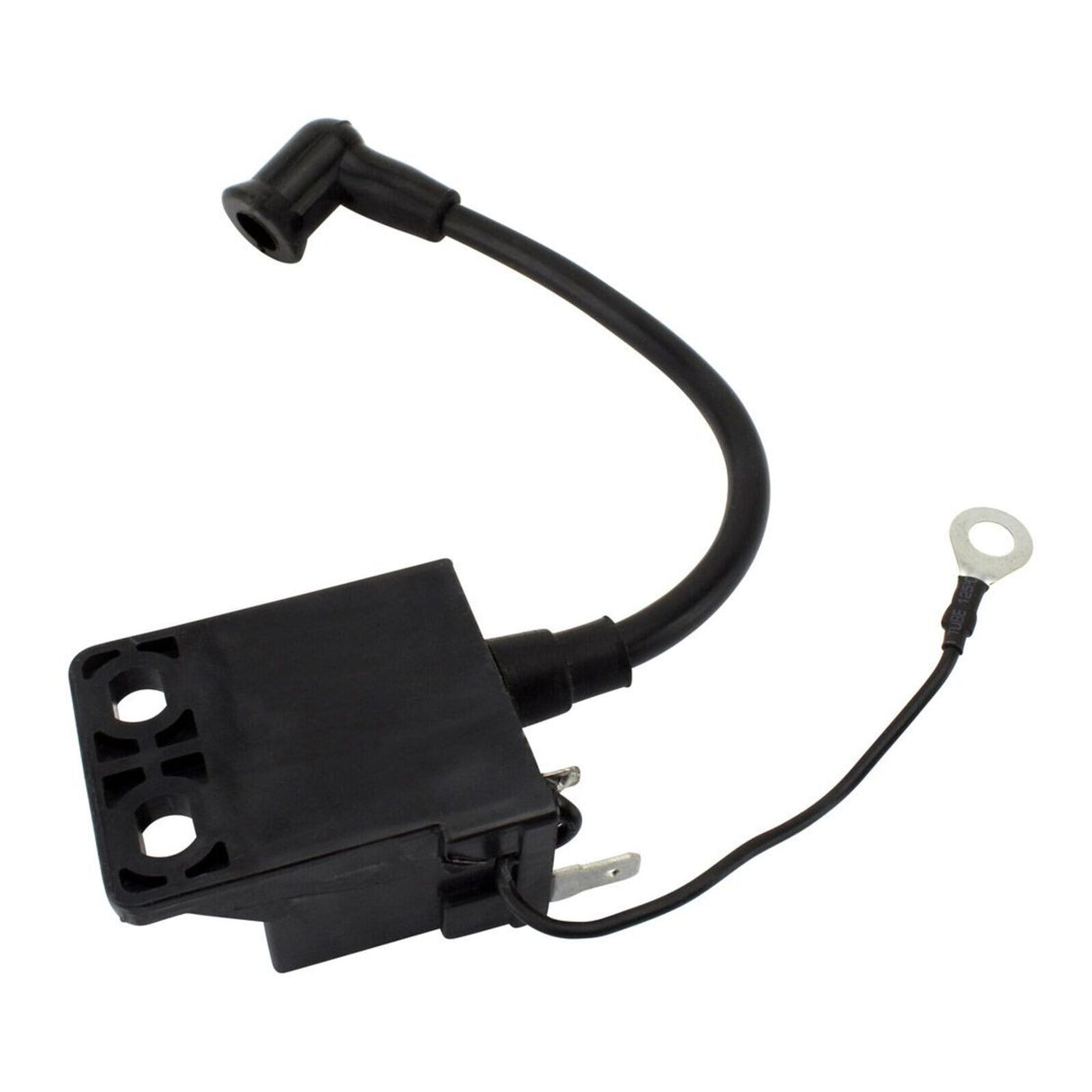

External Ignition Coil

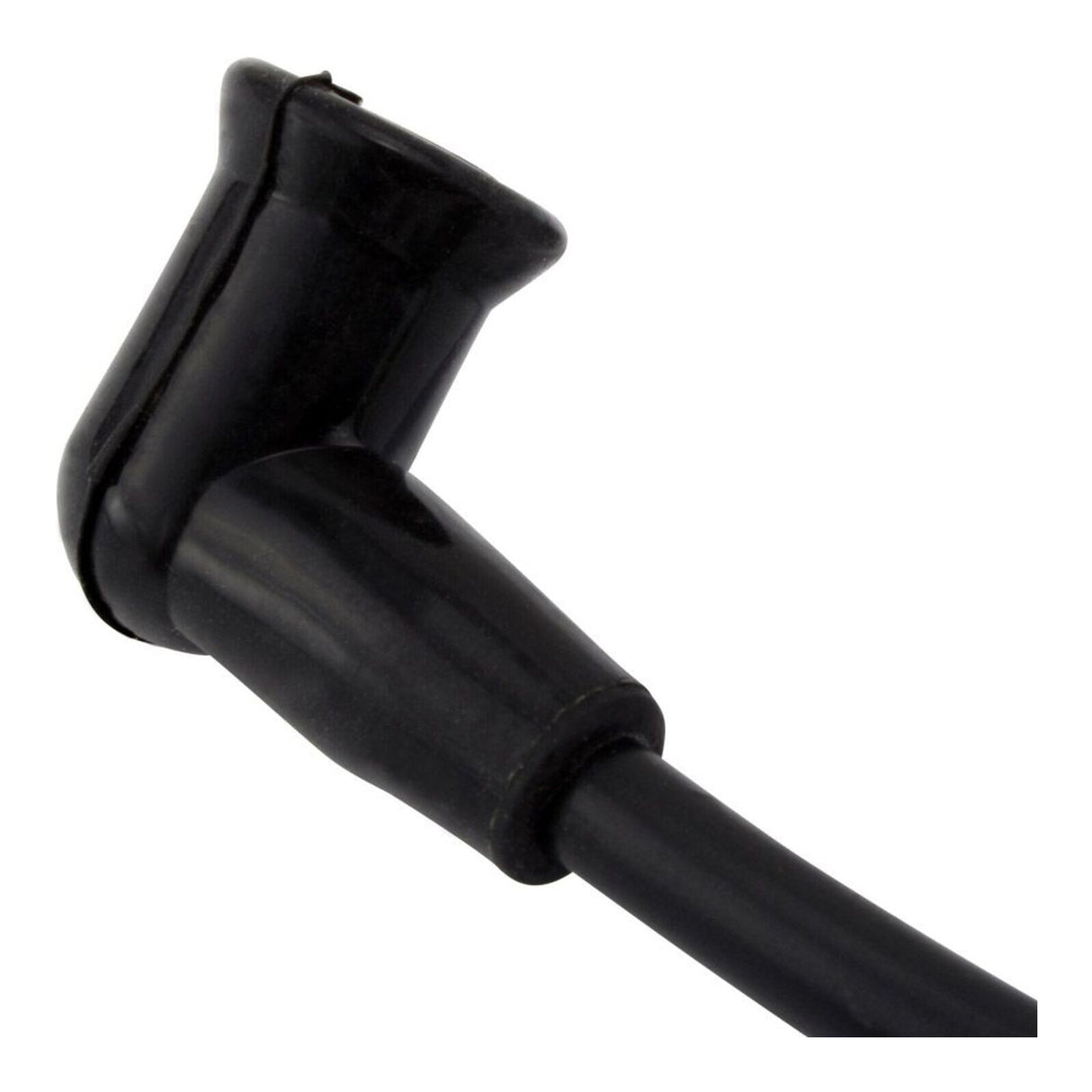

Remove the spark plug cap(s) from the OEM external ignition coil and screw them onto the new external ignition coil.
Direct replacement for the original unit.
Remove the yellow wire from the external ignition coil if it is not applicable to your model.
Warning:
Risk of electric shock. Disconnect the battery before servicing. Ensure proper installation by a qualified technician to avoid malfunction.
Stator Dimensions:
- Stator-to-grommet wire length: 75 mm.
- Grommet-to-plug wire length: 148 mm.
Other Specifications:
- Number of wires: 2.
- Number of plugs: 2.
- Alternator resistance (black to ground): 4.5 ohms ±20%.
External Ignition Coil Specifications:
- Distance between mounting holes: 20 mm.
- Wire length: 51 mm.
- Resistance: 6.1 ohms.
Rotor Dimensions:
- Interior widest diameter: 12 mm.
- Interior narrowest diameter: 12 mm.
- Interior length: 19 mm.
- Exterior diameter: 36 mm.
- Mounting holes, centre-to-centre: 23 mm.
